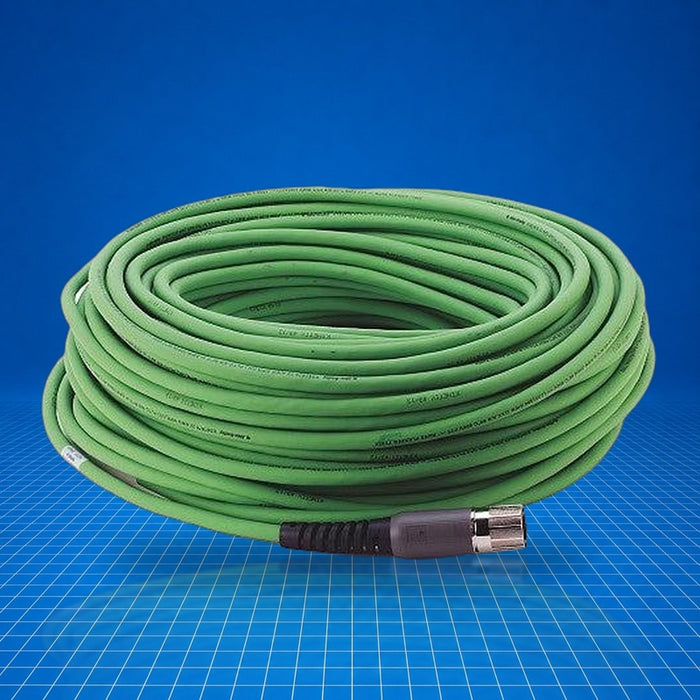

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2090-CFBM7DF-CDAF90 Allen-Bradley
Sold out
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2090-CFBM7DF-CDAF90 is an Allen-Bradley MP-Series continuous-flex feedback cable within the Kinetix 2090 family. It carries incremental/high-resolution encoder signals from motor to drive using a SpeedTec DIN (M7) connector at the motor end and flying leads at the drive end. Offered in a 90 m length, it is used in motion control systems-typically for servo motors, electric cylinders, and direct-drive motors-where flexible, long-reach feedback wiring is required. 2090-CFBM7DF-CDAF90 supports continuous flexing in dynamic applications.
Best Suited For
- Kinetix servo/motor systems using SpeedTec (M7) connectors
- Long-distance feedback wiring up to 90 m
- Continuous-flex motion environments (e.g., gantry or robotic axes)
- High-resolution incremental encoder feedback
- Applications with direct-drive or electric cylinder motors
Cable length
90 m
Connector type (motor end)
SpeedTec DIN (M7)
Flex type
Continuous-flex
Encoder type
Incremental / high-resolution
Voltage rating
600 V
Technical Specifications
I/O & Electrical
Voltage rating
600 V
Communication & Power
Feedback signals
SIN, COS, DATA, TS, EPWR 5 V & 9 V, ECOM, spare conductors per pin-out
Physical & Environmental
Overall cable diameter
11.7 mm (0.46 in)
Minimum bend radius
140 mm (5.5 in)
Certifications
CEUL Listed to CM requirements
