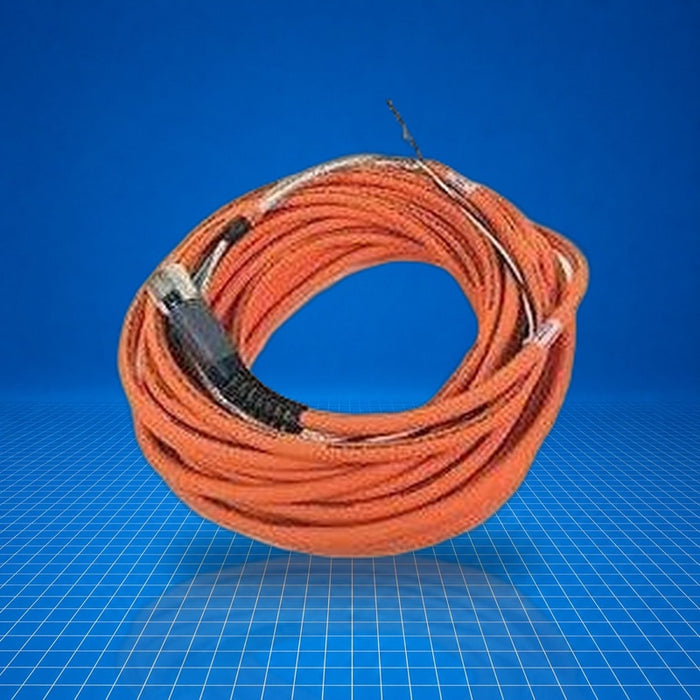

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
2090-CPBM7DF-16AA20 Allen-Bradley
Original price
$1,241.38
-
Original price
$1,737.50
Original price
$1,241.38
$1,241.38
-
$1,737.50
Current price
$1,241.38
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2090-CPBM7DF-16AA20 is an Allen-Bradley MP-Series motor power cable with integrated brake conductors, using a SpeedTec DIN connector at the motor end and a drive-end flying-lead connection. It is part of the Bulletin 2090 family for Kinetix servo drive systems. In a motion control system it carries three-phase power and brake wiring between drive and motor. Typical uses include single-axis motion systems, servo motor wiring where brake functionality is required, and installations requiring shielded non-flex cable spanning up to 20 meters.
Best Suited For
- Kinetix 2090 servo drive to motor power and brake wiring
- Motion applications requiring brake control wiring
- Non-flex installations up to 20 m between drive and motor
- Shielded cable routing in industrial environments
Length
20 m
Wire gauge
16 AWG
Cable type/function
Motor power with brake wires
Connector, motor end
SpeedTec DIN
Connector, drive end
Flying-lead
Technical Specifications
I/O & Electrical
Cable function
Motor power with brake wires
Wire gauge
16 AWG
Number of conductors
6
Communication & Power
Shielding
Shielded (360° required)
Flex type
Standard (non-flex)
Physical & Environmental
Length
20 m
Motor-end connector
SpeedTec DIN
Drive-end connector
Flying-lead
Certifications
EAC
Certified for Eurasian Economic Community as of May 19 2026.
