2090-CSBM1DF-14AF03 Allen-Bradley

Name: 2090-CSBM1DF-14AF03 Allen-Bradley
Brand: Allen Bradley
SKU: 2090-CSBM1DF-14AF03
Price: 618.75 USD
Availability: InStock

$0.00 - $618.75

$618.75

$0.00 - $618.75

$618.75

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

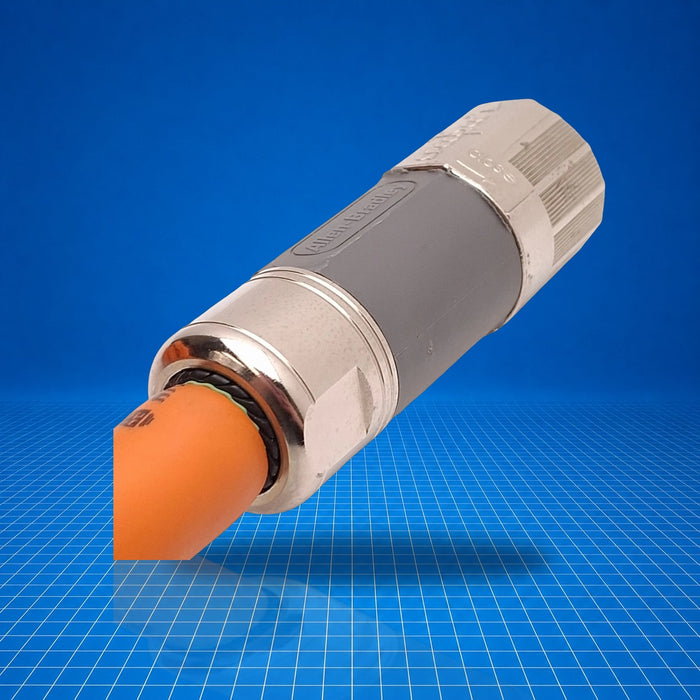

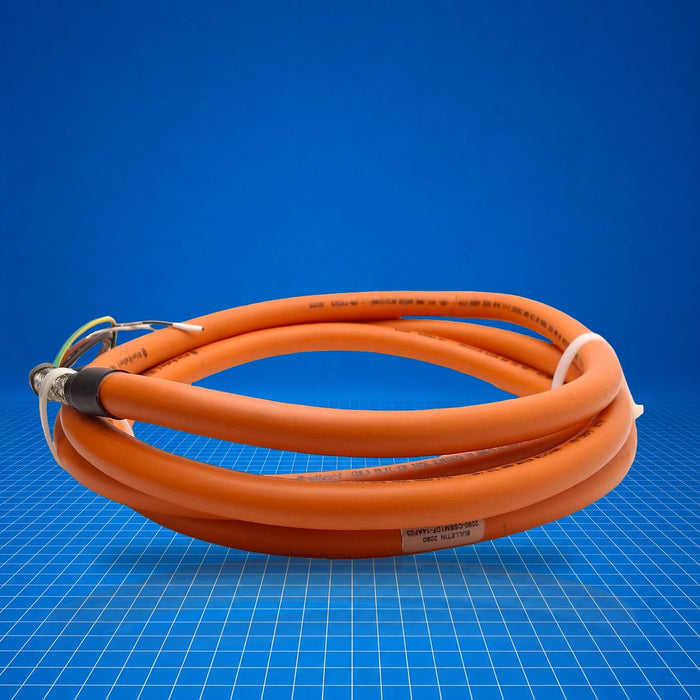

The 2090-CSBM1DF-14AF03 is a continuous-flex single motor cable in the Allen-Bradley Kinetix 2090 Series, configured for power, feedback, and brake wiring with a single SpeedTec DIN connector to the motor and flying-lead connection optimized for Kinetix 5500 drives. It serves as a hybrid transmission medium combining motor power, encoder feedback, and brake control in one cable assembly in motion control systems. Typical applications include servo motor cable runs in industrial automation systems using Kinetix 5500 controllers, where compact multi-conductor routing is needed over flexible motion paths.

Best Suited For

Kinetix 5500 servo drive systems
Continuous-flex motion applications
Single motor power with encoder feedback and brake integration
Industrial machine tool or robotic indexing axes

Cable length

3 m

Wire gauge

14 AWG

Cable material

TPE, continuous-flex

Nominal voltage

1000 V

Technical Specifications

I/O & Electrical

Wire gauge (power conductors)

14 AWG

Nominal voltage

1000 V

Communication & Power

Conductors

4 power, 2 ftdback (digital communication), 2 brake

Physical & Environmental

Outer diameter approx.

17 mm

Cable length

3 m

Cable material

TPE, continuous-flex

Weight approx.

0.289 kg/m

Continuous bend radius

10 × cable diameter

Max conductor temperature

105 °C

Certifications

CE
