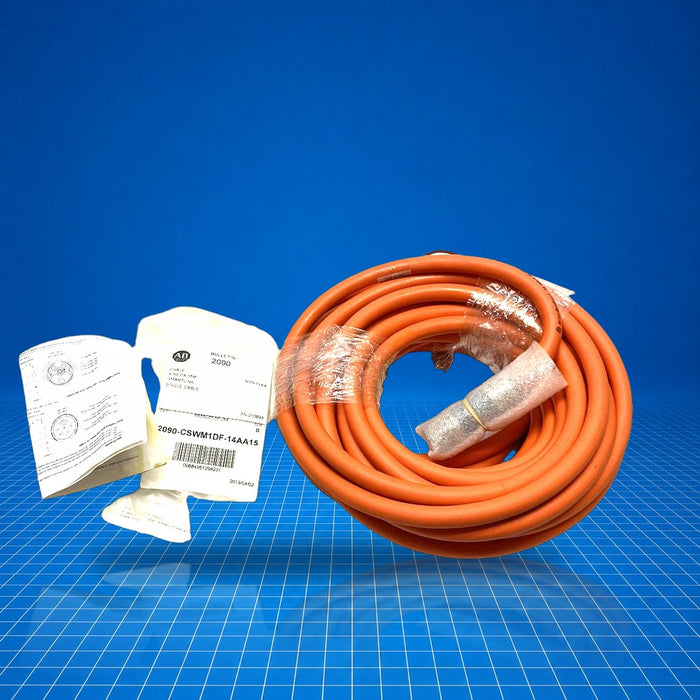

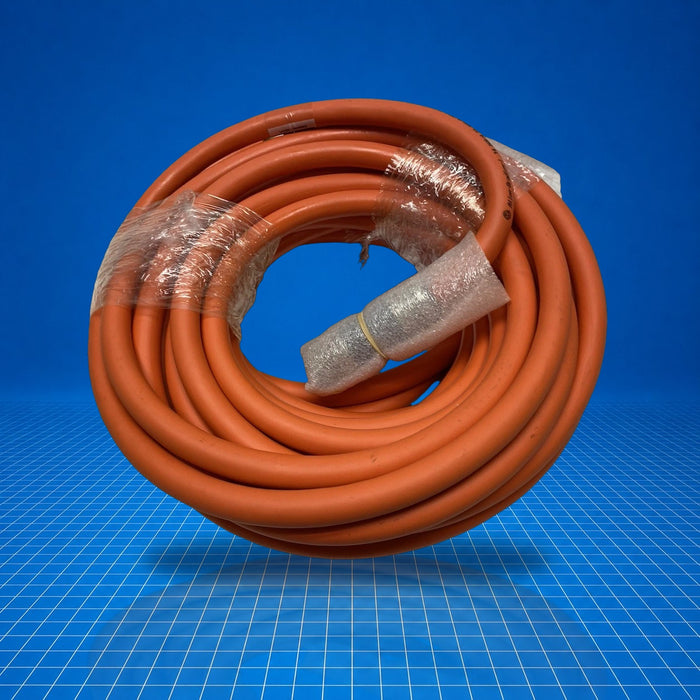

2090-CSWM1DF-14AA15 Allen-Bradley
Original price
$1,127.47
-
Original price
$1,727.48
Original price
$1,127.47
$1,127.47
-
$1,727.48
Current price
$1,127.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2090-CSWM1DF-14AA15 is a Single Motor Power-and-Feedback cable from Allen-Bradley's Kinetix 2090 series. It is a TPE-jacketed, non-flex cable designed for single motor integration with Kinetix systems. The cable provides motor power and encoder feedback in a single assembly, optimizing motor-to-drive connections in industrial motion control applications. Part number 2090-CSWM1DF-14AA15 supports K-Series servo drives and is intended for use in automated machinery, packaging, and conveyor systems where precise motion feedback and streamlined wiring are required.
Best Suited For
- Kinetix 5500/Kinetix 5700 single motor installations
- Motor power and feedback combined in one cable
- Applications requiring up to 14 AWG power wiring
- Non-flexible, standard TPE jacket installations
Cable Type
Single Motor Power and Feedback
Length
15 m
Wire Gauge
14 AWG
Cable Style
TPE, standard, non-flex
Drive-end Connector
DF Single Cable for K5500
Technical Specifications
I/O & Electrical
Wire Gauge
14 AWG
Cable Type
Single Motor Power and Feedback
Communication & Power
Drive-end Connector Type
DF Single Cable for K5500
Motor-end Connector Type
Single SpeedTec DIN Connector
Physical & Environmental
Cable Style
TPE, standard, non-flex
Length
15 m
