2090-SR040-09 Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

2090-SR040-09 Allen-Bradley

$0.00 - $400.00
$400.00
$0.00 - $400.00
$400.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$400.00
2 in stock
New / Open-Box Surplus
Get Pricing ~5 mins
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

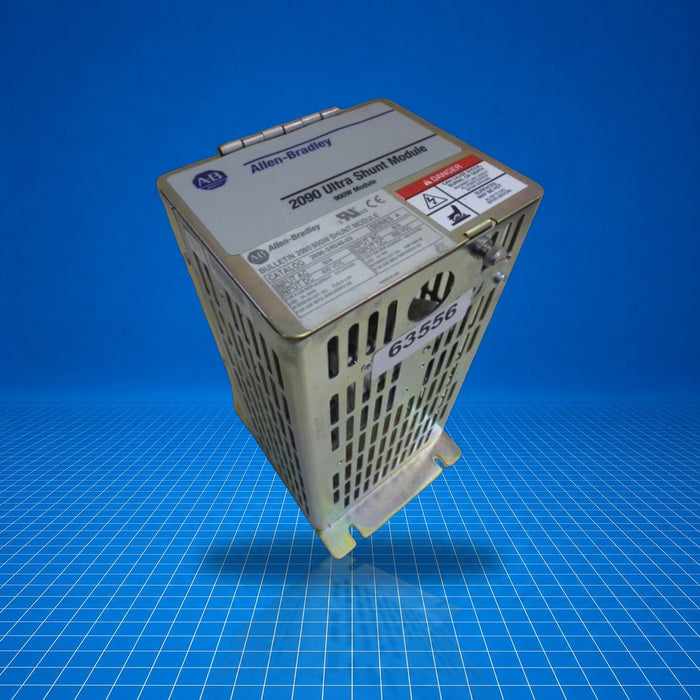

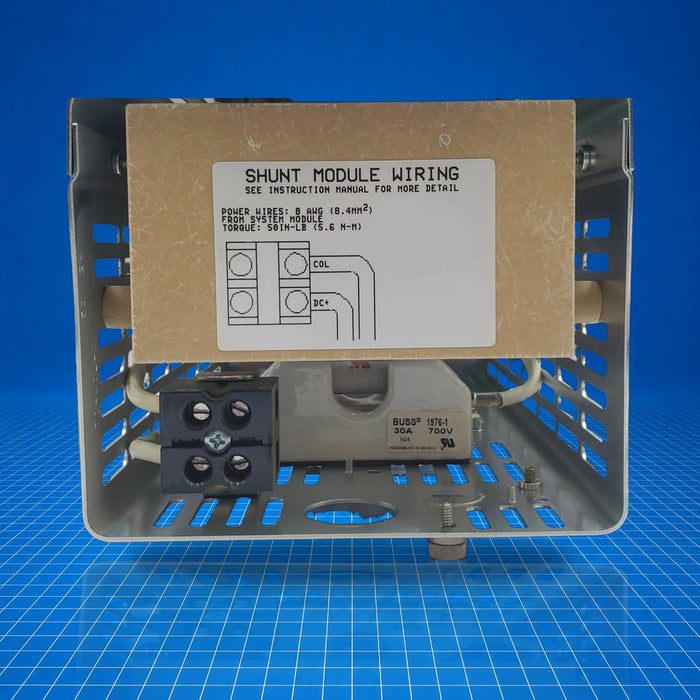

The Allen-Bradley 2090-SR040-09 is an external passive shunt resistor module within the Kinetix/Ultra-3000 line. It provides additional dissipation capacity when a drive's internal shunt is exceeded, specifically for Ultra-3000 servo drive systems. The 2090-SR040-09 offers 40 Ω resistance, supports a peak power rating of 16 kW, and a peak current up to 20 A, providing a reliable means to offload regenerative energy during deceleration or braking events. Typically employed in high-inertia servomotor applications.

Best Suited For

  • Ultra-3000 servo drive systems requiring enhanced braking capacity
  • High-inertia axis deceleration/braking support
  • Retrofit or replacement for systems whose internal shunt is exceeded
  • External shunt requirement in motion control cabinets
Resistance
40 Ω
Peak power rating
16 kW
Peak current
20 A
Weight (shipped)
3.63 kg (8.0 lb)
Mounting dimensions (approx.)
see installation drawing

Technical Specifications

I/O & Electrical

Resistance
40 Ω
Peak current
20 A
Peak power rating
16 kW

Physical & Environmental

Weight (shipped)
3.63 kg (8.0 lb)
Mounting dimensions
as per Rockwell installation drawing (approx. 280 × 150 × 25 mm)
