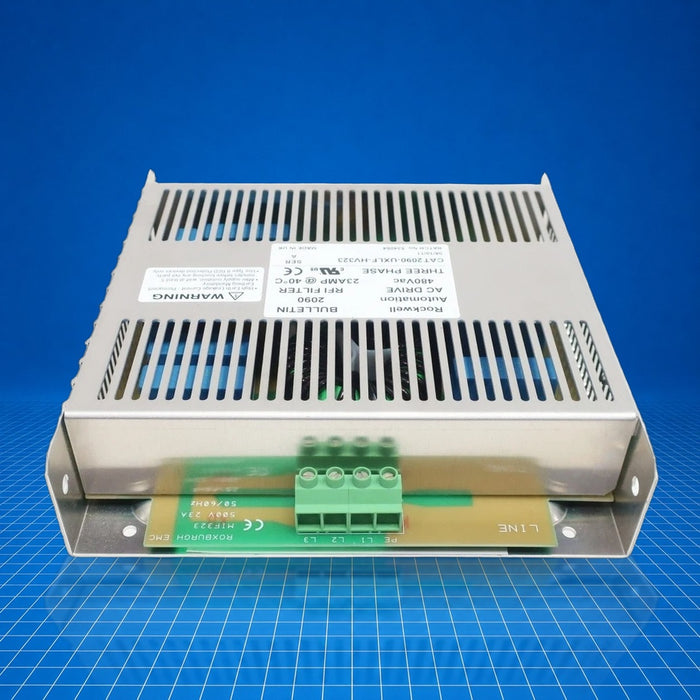

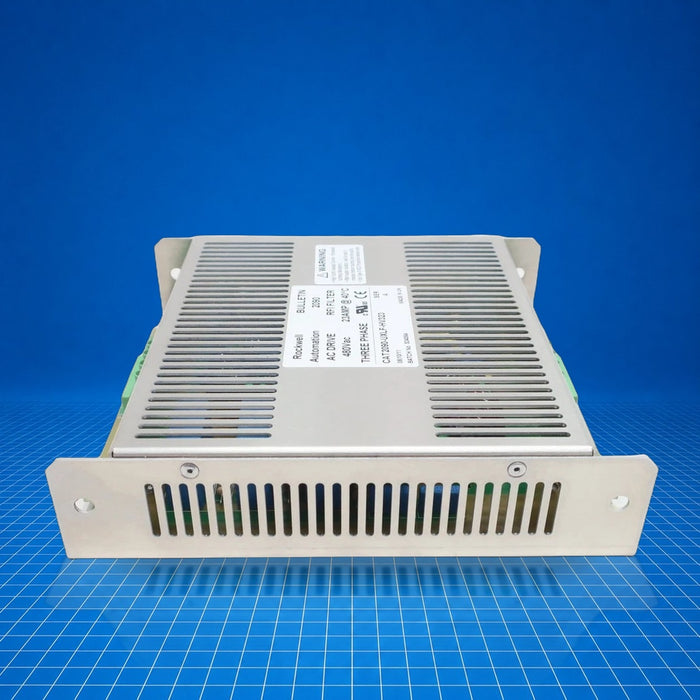

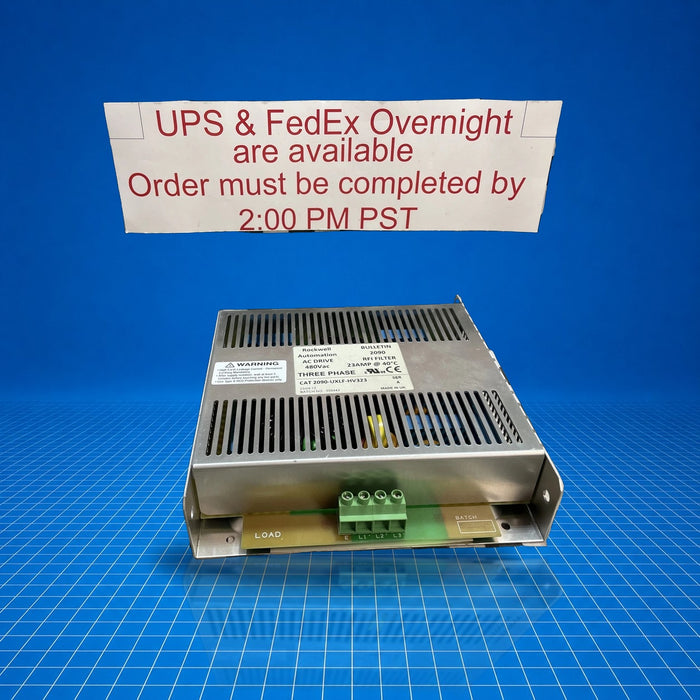

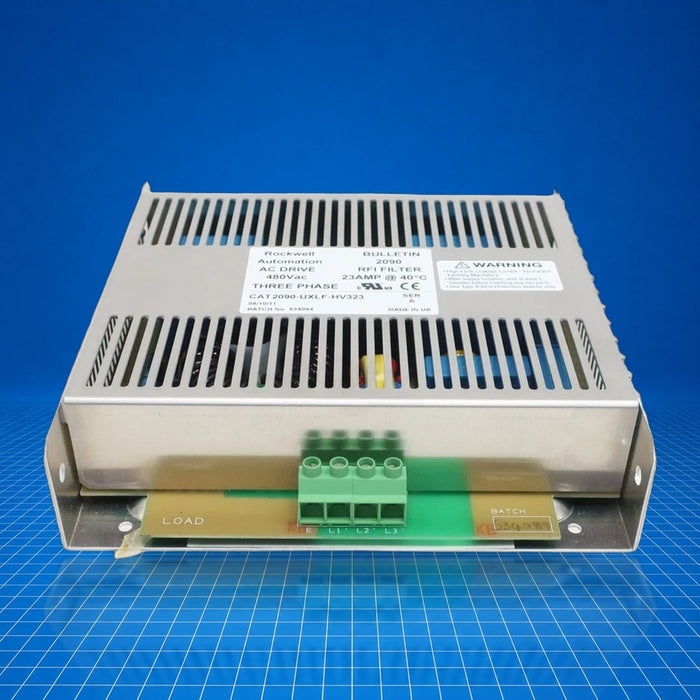

2090-UXLF-HV323 Allen-Bradley
Original price
$356.25
-
Original price
$1,573.98
Original price
$356.25
$356.25
-
$1,573.98
Current price
$356.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2090-UXLF-HV323 is a three-phase AC line filter from the Ultra Series of Allen-Bradley, used to reduce electromagnetic interference and protect Ultra1500 and Ultra3000 drive systems. It is rated for 520 V AC, 23 A at 50 °C, with associated power loss and leakage characteristics. It serves as part of the drive's power conditioning stage, improving drive reliability in industrial motor control systems. 2090-UXLF-HV323 is suitable where line filtering is required for high-voltage, three-phase applications.
Best Suited For
- Ultra1500 drives (catalog matching for 2092-DA4)
- Ultra3000 drive systems requiring three-phase filtering
- High-voltage three-phase motor drive installations
- Applications needing reduced EMI on 520 V AC supplies
Voltage rating
520 V AC, 50/60 Hz
Current rating @ 50 °C
23 A
Power loss
20 W
Leakage current
80 mA
Weight (approx)
1.6 kg (3.5 lb)
Technical Specifications
I/O & Electrical
Voltage rating
520 V AC, 50/60 Hz
Current rating @ 50 °C
23 A
Power loss
20 W
Leakage current
80 mA
Physical & Environmental
Weight
1.6 kg (3.5 lb)
Operating temperature
-25 to +85 °C (-13 to +185 °F) (general for series)
