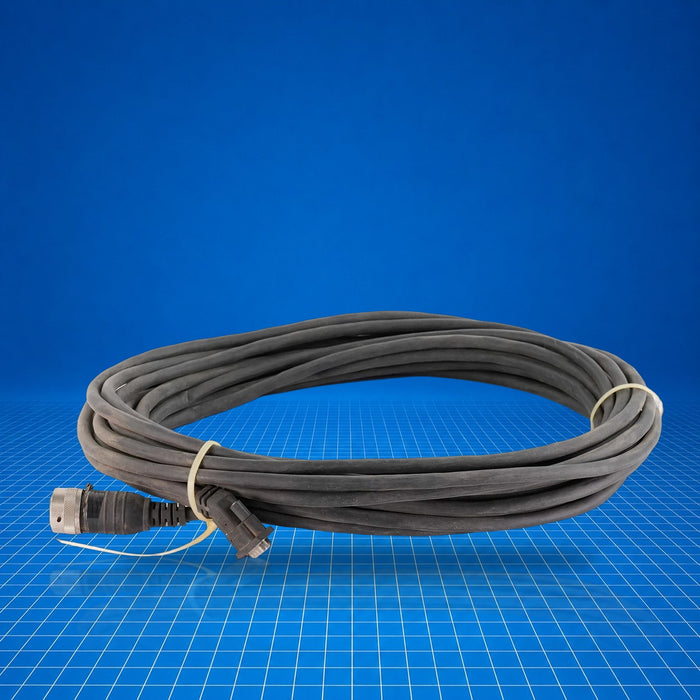

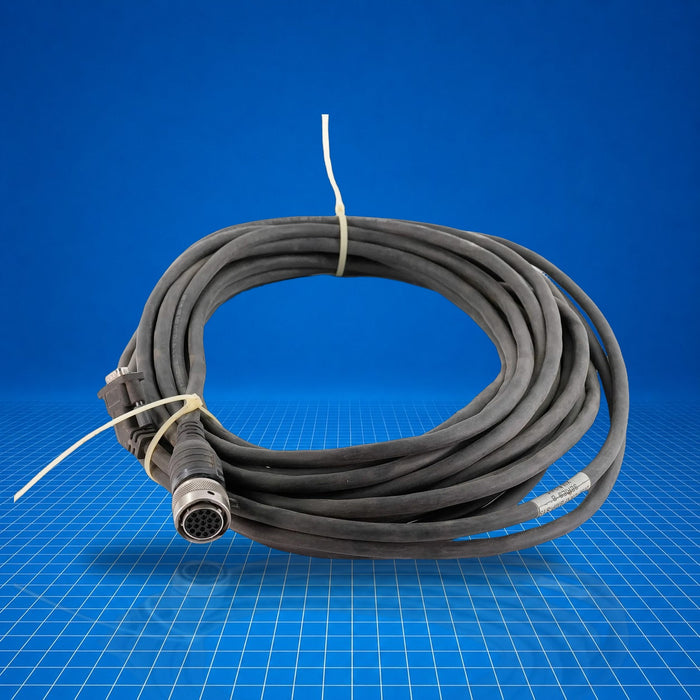

2090-UXNFBMP-S15 Allen-Bradley
Original price
$0.00
-
Original price
$1,499.98
Original price
$1,499.98
$0.00
-
$1,499.98
Current price
$1,499.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 2090-UXNFBMP-S15 is a 15 m Ultra Non-Flex Motor Feedback Cable in the Allen-Bradley 2090 series. It provides pre-molded encoder feedback connection between MP-series servo motors and Ultra3000 (Ultra3000 / Ultra5000) drives via a 15-pin D-sub drive-end connector and SpeedTec M7 motor-end interface. Typical use includes motion control systems where a fixed-length, non-flex feedback cable is required for high-resolution and incremental encoder signals, especially in cabinet-mounted or short-run applications. Part number 2090-UXNFBMP-S15.
Best Suited For
- MP-series servo motor feedback applications
- Ultra3000 drive systems requiring pre-molded encoder connections
- Fixed-length, cabinet-mounted motion control
- Non-flex installations avoiding dynamic flex stresses
Cable length
15 m
Voltage rating
300 V
Connector (drive end)
15-pin D-sub (45° orientation)
Connector (motor end)
SpeedTec M7 bayonet
Wire sizes
28 AWG feedback; 16 AWG (5 V), 22 AWG (9 V)
Technical Specifications
I/O & Electrical
Voltage rating
300 V
Wire sizes
28 AWG feedback; 16 AWG for 5 V power; 22 AWG for 9 V power
Number of pins
15-pin on drive end; motor-end pins unspecified
Communication & Power
Connector orientation
45° at drive end
Physical & Environmental
Cable type
Ultra Non-Flex
Jacket material
Thermoplastic Elastomer (TPE)
Cable diameter
9.6 mm (0.38 in)
Weight
5.00 lbs (2.27 kg)
Cable color
Black
