Product Overview

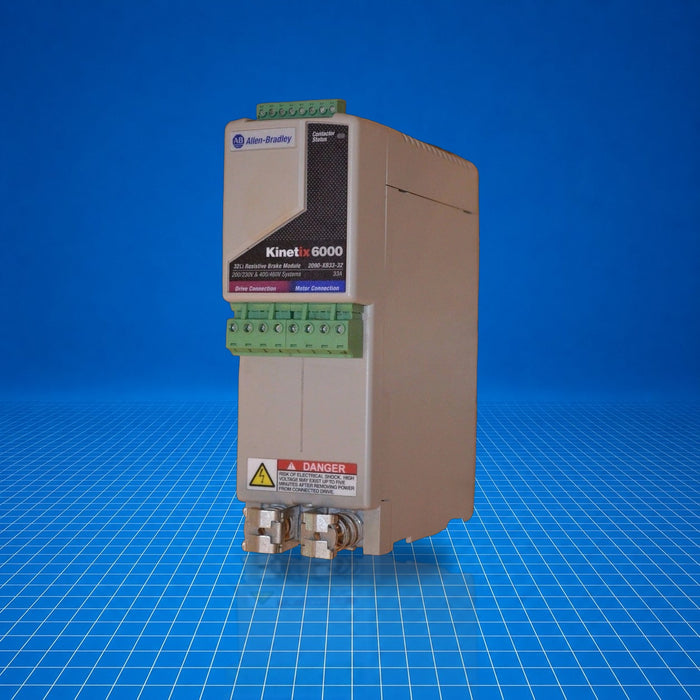

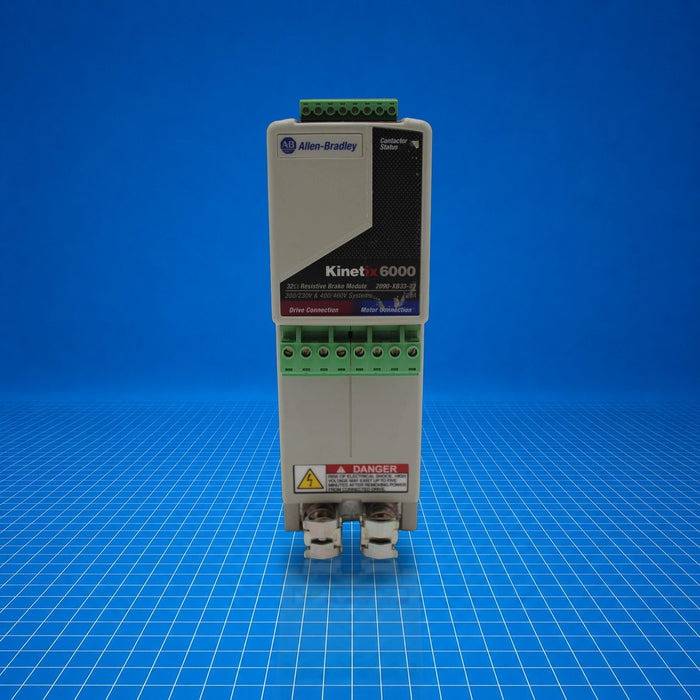

The 2090-XB33-32 is an Allen-Bradley resistive brake module in the 2090 Kinetix motion accessory family. It provides a 33 A peak drive braking capability using 32 Ω resistive load to absorb kinetic energy from servo systems. It integrates with Kinetix servo drives (e.g. Kinetix 2000, 6000, 6200, 6500, Ultra3000-SE) to support controlled deceleration when drive commands are impractical or disabled. The 2090-XB33-32 is suitable for energy dissipation in motion control applications. Part number: 2090-XB33-32.

Best Suited For

Integration with Kinetix 2000, 6000, 6200, 6500, Ultra3000-SE servo drive systems
Applications requiring resistive braking when drive-based braking is insufficient
Installation in servo drive panels for controlled deceleration
Use in systems needing energy absorption of up to 150 J per brake cycle

Resistance

32 Ω

Peak Drive Current

33 A (peak), 23 A rms

Continuous Power Dissipation

30 W

Weight

1.91 kg (4.22 lb)

Voltage Class

200 V or 400 V

Technical Specifications

Communication & Power

Voltage Class

200 V or 400 V

Peak Energy Absorption

150 J

Peak Drive Current (peak)

33 A

Peak Drive Current (rms)

23 A

Continuous Power Dissipation

30 W

Physical & Environmental

Weight

1.91 kg (4.22 lb)

Dimensions (L × W × H)

198.6 mm × 70 mm × (approx.) 196.6-205 mm

Clearances

Top 50 mm, Side 0 mm, Bottom 50 mm

Certifications

UL 508C

UL certification per ANSI/UL 508C (Power Conversion Equipment) for resistive brake modules 2090-XB33-32 and XB33-16.
