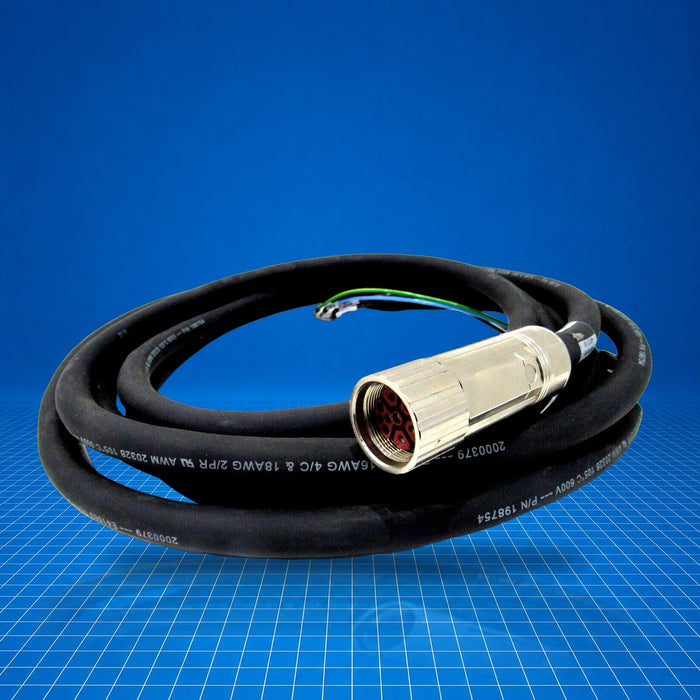

2090-XXNPMF-16S05 Allen-Bradley

Name: 2090-XXNPMF-16S05 Allen-Bradley
Brand: Allen Bradley
SKU: 2090-XXNPMF-16S05
Price: 353.97 USD
Availability: InStock

$353.97 - $1,311.75

$353.97

$353.97 - $1,311.75

$353.97

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (20) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

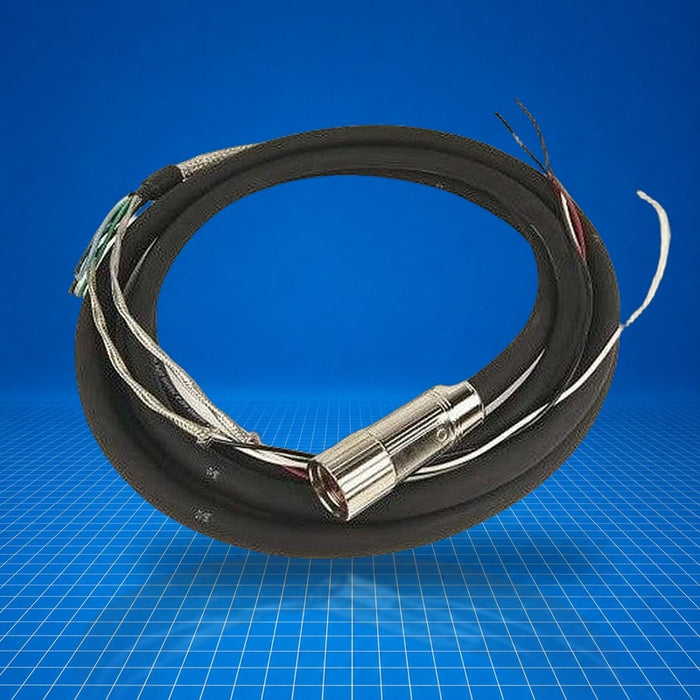

The 2090-XXNPMF-16S05 is an Allen-Bradley 2090-series Kinetix standard, non-flex motor power cable with a 5 m length. It carries three-phase power plus brake and spare circuits and interfaces between servo drives and motors in Kinetix motion systems. Typical applications include motor power and brake wiring for Kinetix 5100-5700 servo systems, especially where a standard-duty motor cable is acceptable. 2090-XXNPMF-16S05 supports threaded-DIN-connector motor series and serves in drive-to-motor power transmission and brake control.

Best Suited For

Kinetix 5100-5700 servo drive power and brake wiring
Threaded-DIN connector motor series installations
Fixed-length, non-flex cable applications
Drive-to-motor power plus brake conductor routing
Standard TPE jacket environments

Cable type

Standard (non-flex), Industrial TPE, Black

Voltage rating

600 V

Wire sizes

16 AWG (power), 18 AWG (brake & spares)

Length

5 m

Shield

Yes (overall)

Technical Specifications

I/O & Electrical

Voltage rating

600 V

Wire gauge - power conductors

16 AWG

Wire gauge - brake/spare conductors

18 AWG

Shielding

Yes (shielded)

Brake/spare conductors count

4 additional 18 AWG conductors

Physical & Environmental

Cable construction

Standard (non-flex) cable, Industrial TPE jacket, Black

Length

5 m

Weight (approx)

0.276 kg/m (0.186 lb/ft)
