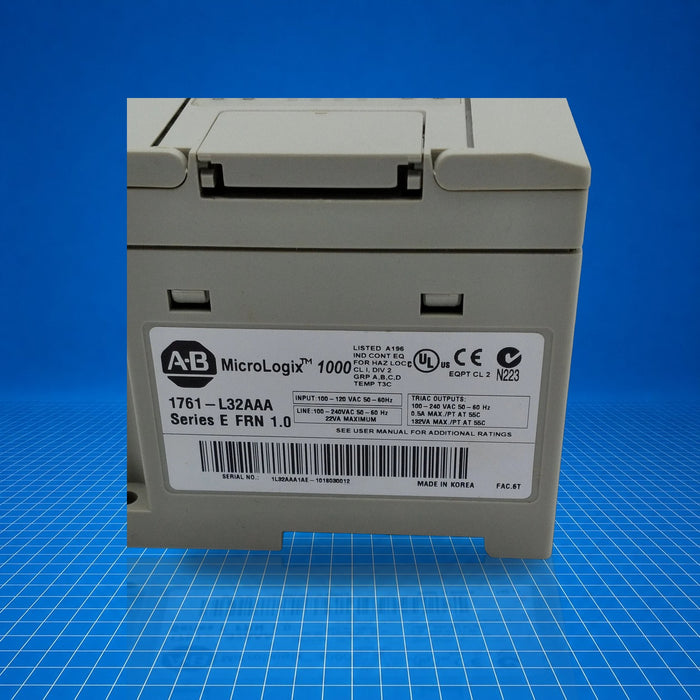

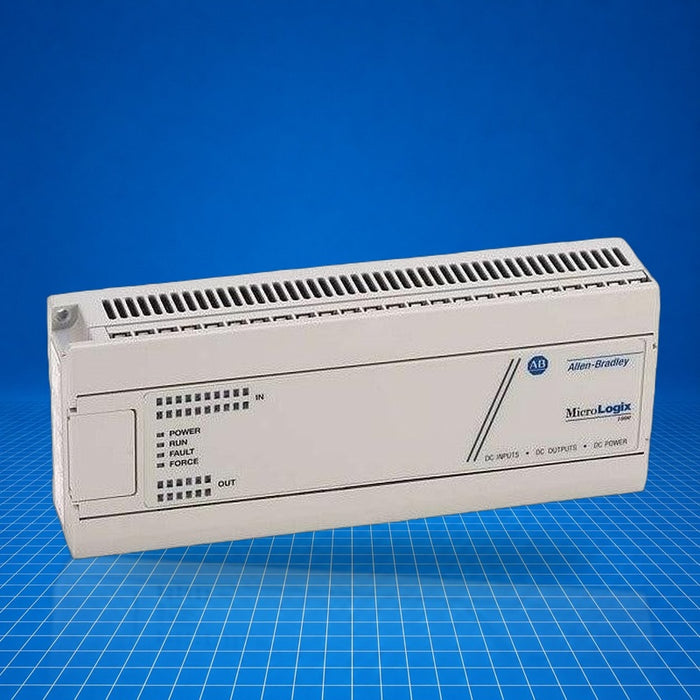

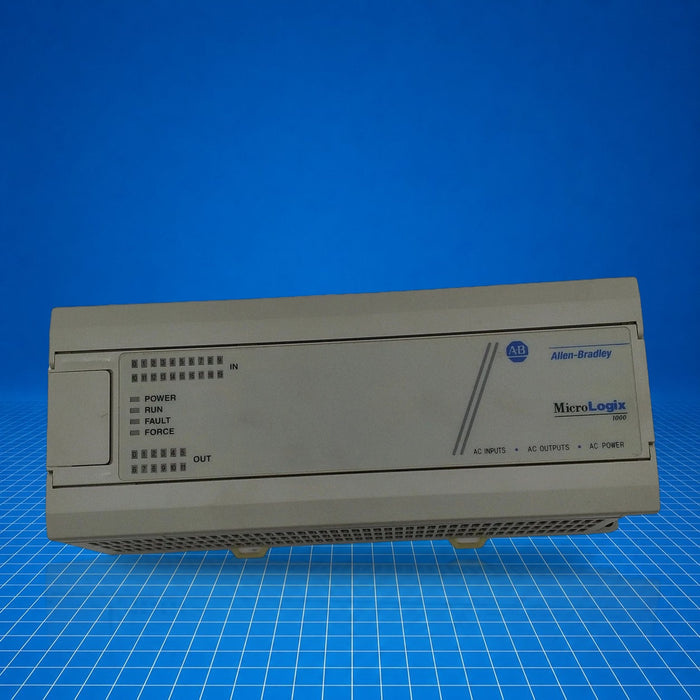

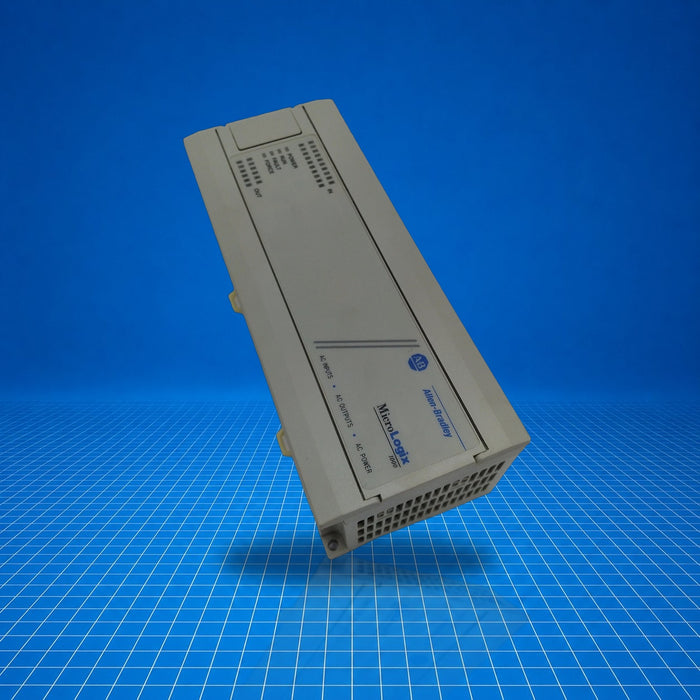

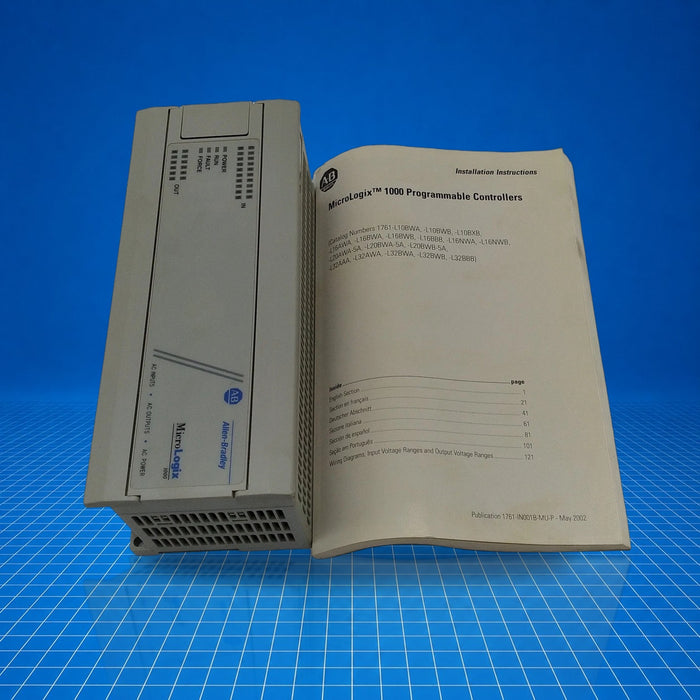

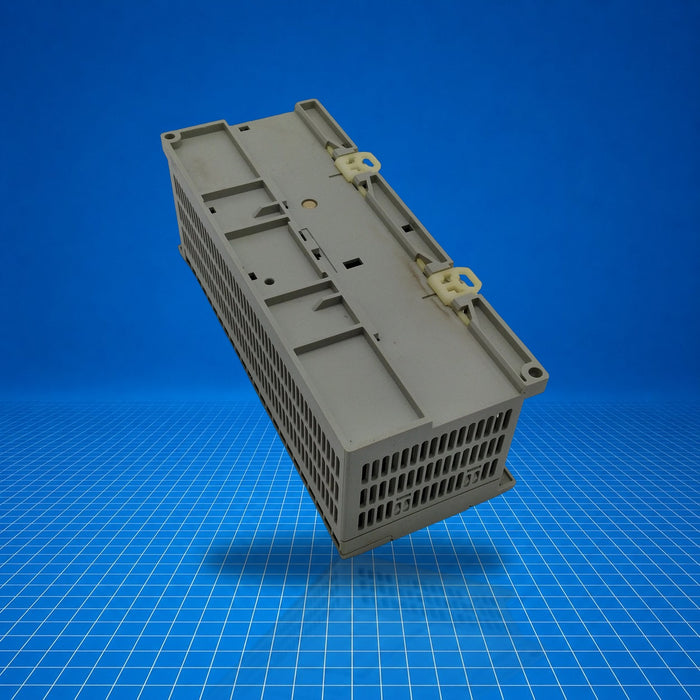

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
1761-L32AAA Allen-Bradley
Original price
$1,155.00
-
Original price
$2,050.65
Original price
$1,155.00
$1,155.00
-
$2,050.65
Current price
$1,155.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1761-L32AAA is an Allen-Bradley MicroLogix 1000 programmable logic controller featuring 32 integrated digital I/O points (20 AC inputs, 10 AC triac outputs, 2 relay outputs) and an embedded RS-232 DF1 communication port. It includes 1 KB EEPROM memory for logic and data retention. Powered by 120/240 VAC, it is commonly used in legacy industrial control applications such as small machine logic, OEM systems, and straightforward process control tasks.
Best Suited For
- Small standalone machine control
- OEM machines with basic discrete I/O
- Replacement of legacy MicroLogix 1000 systems
- Basic interlocking and sequencing logic
I/O points
32
AC inputs
20 × 120 V AC
Triac outputs
10 × 120/240 V AC
Relay outputs
2
Communication
RS-232 (DF1)
Technical Specifications
I/O & Electrical
Inputs
20 digital, 120 V AC
Triac outputs
10, 120/240 V AC
Relay outputs
2 contact outputs
Communication & Power
Communication port
1 × RS-232
Protocol
DF1
Memory
1 KB EEPROM (approx. 737 instruction words; 437 data words)
Power supply
120/240 V AC, 47-63 Hz
Real input power
7 W @ 120 V AC; 9 W @ 240 V AC
Apparent input power
16 VA @ 120 V AC; 22 VA @ 240 V AC
Inrush current
30 A for 8 ms
Physical & Environmental
Weight
1.94 lb (0.88 kg)
Certifications
UL ListedC-UL Div 2CERCMEAC
UL listed (ANSI/UL 508); C-UL Class I, Division 2 Groups A, B, C, D; CE/RCM/EAC compliant (when marked).
