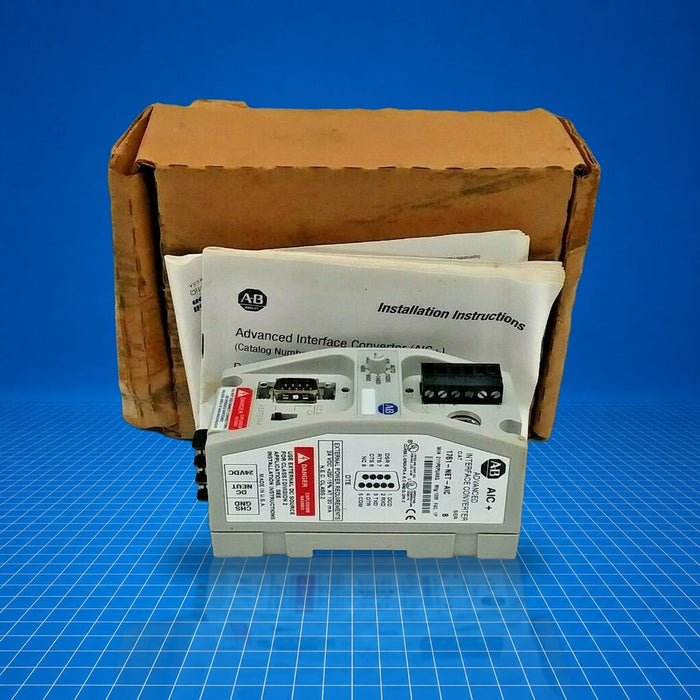

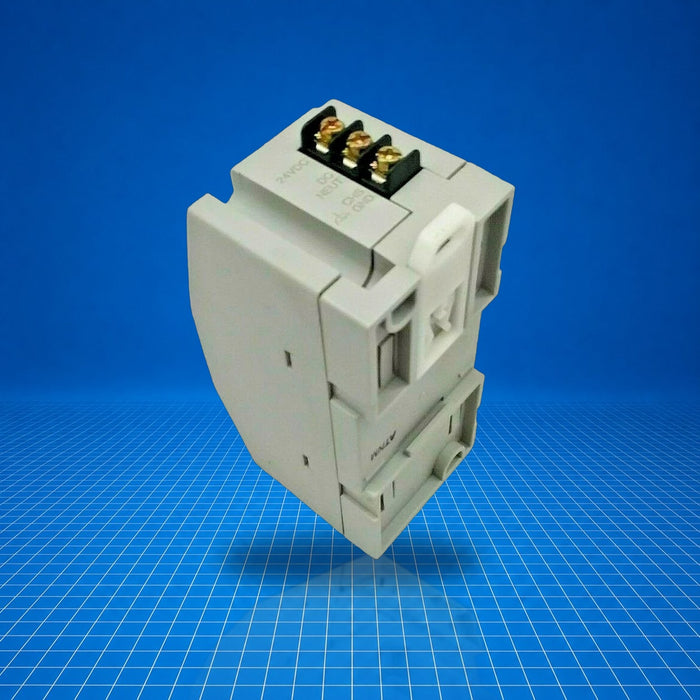

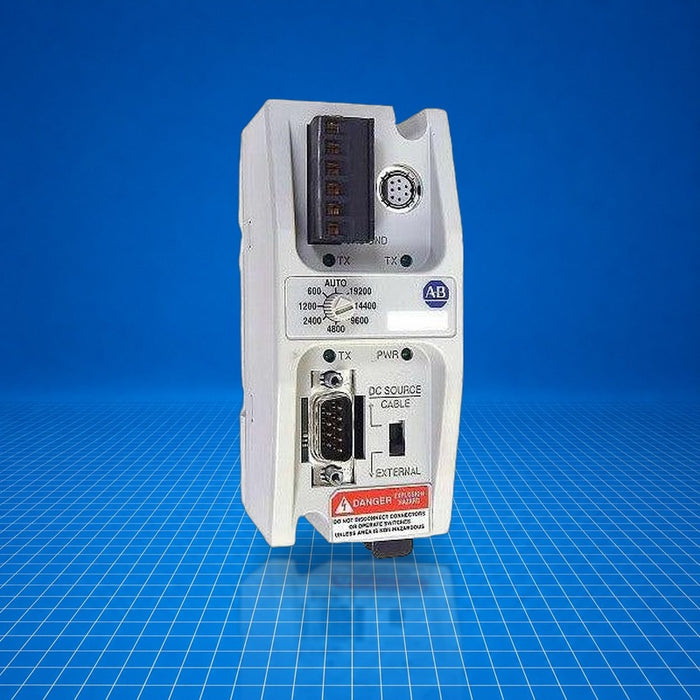

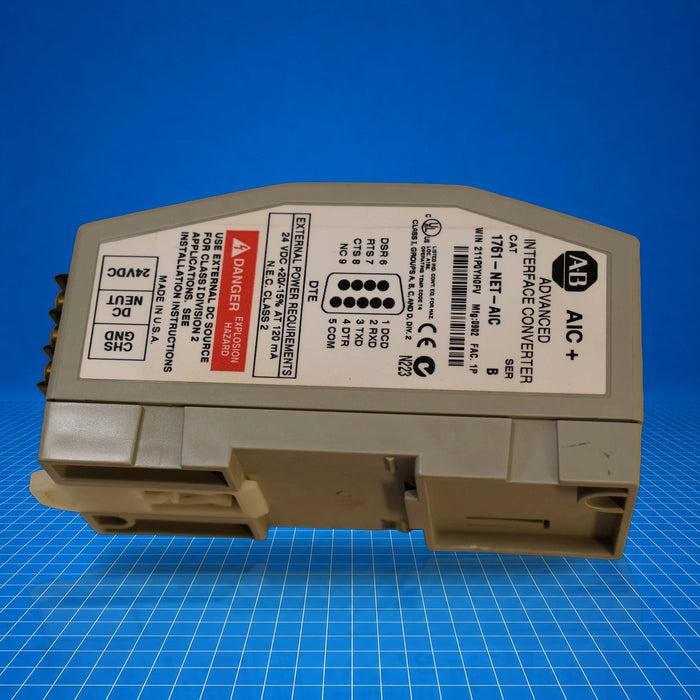

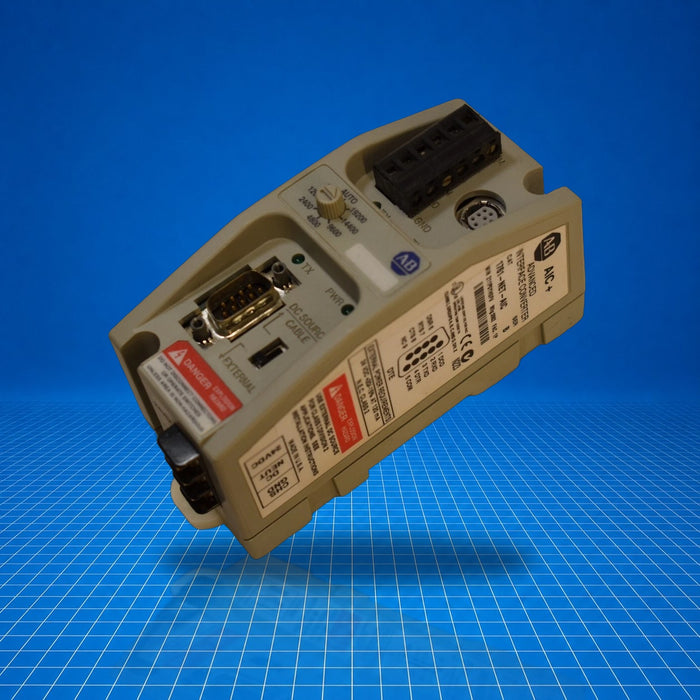

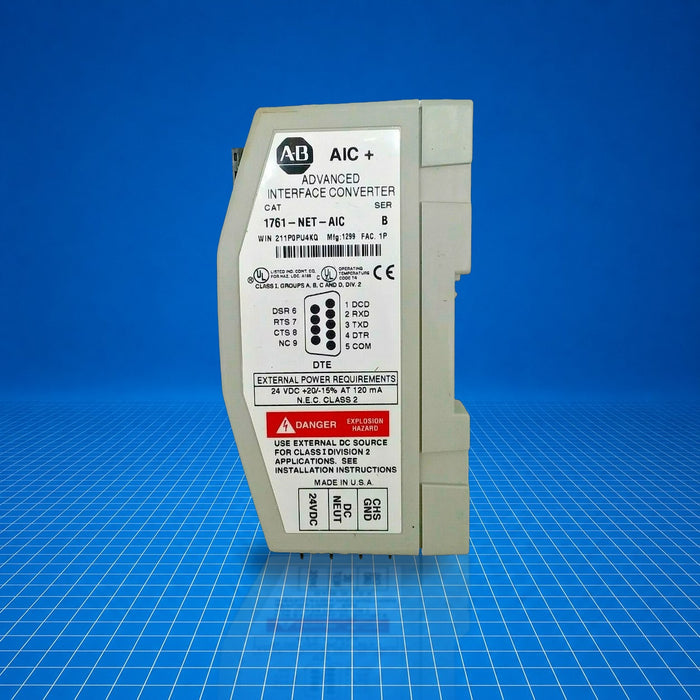

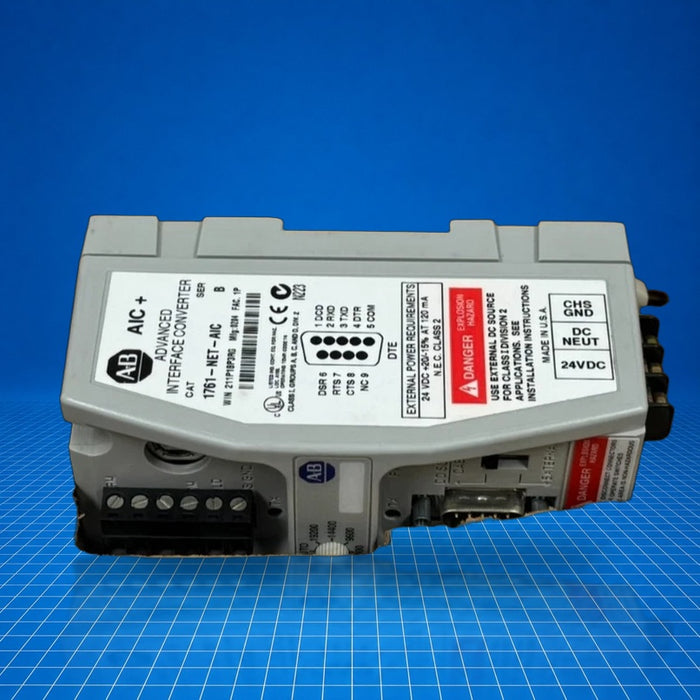

Product image is representative; revision or series may vary.
Contact us to request a specific version.

1761-NET-AIC Allen-Bradley

Name: 1761-NET-AIC Allen-Bradley
Brand: Allen Bradley
SKU: 1761-NET-AIC
Price: 450.0 USD
Availability: InStock

$450.00 - $450.00

$450.00

$450.00 - $450.00

$450.00

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1761-NET-AIC is an Advanced Interface Converter in the Allen-Bradley MicroLogix 1000 family. It facilitates connection of DF1-enabled devices, such as MicroLogix, SLC, Logix controllers, HMIs or PCs, to DH-485 networks, supporting up to 32 multidrop nodes. Installed via DIN-rail or panel, it is powered either through the Mini-DIN cable or an external 24 V DC source. Typical applications include integrating legacy serial devices into DH-485 networks and enabling RS-232 to RS-485 or ASCII isolation. Part number 1761-NET-AIC.

Best Suited For

DH-485 network extension for MicroLogix/SLC controllers
RS-232 to RS-485 isolation for serial devices
Multidrop DH-485 setups (up to 32 nodes)
Integration of legacy DF1 devices into control networks

Power source voltage

20.4…28.8 V DC

Max DH-485 nodes

32

Current draw

0…120 mA

Mounting

DIN-rail or panel

Operating temperature

0…60 °C

Technical Specifications

I/O & Electrical

Power source voltage

20.4…28.8 V DC

Current draw

0…120 mA

Maximum inrush current

200 mA

Internal isolation voltage

500 V DC

Max DH-485 nodes per network

32

Communication & Power

Communication ports

2 × RS-232 (9-pin D-shell and 8-pin Mini-DIN), 1 × DH-485 Phoenix plug

Network length

up to 1219 m (4000 ft) per multidrop

Multidrop networks supported

up to 2 ganged

Physical & Environmental

Mounting

DIN-rail or panel

Operating temperature

0…60 °C (32…140 °F)

Storage temperature

-40…85 °C (-40…175 °F)

Weight

0.44 lbs (0.20 kg)

Certifications

UL 1604C-UL C22.2 No. 213Class I Div 2CE

UL 1604; C-UL C22.2 No. 213; Class I Division 2 Groups A, B, C, D; CE compliant for applicable directives
