1762-IQ32T Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1762-IQ32T Allen-Bradley

$440.00 - $538.32
$440.00
$440.00 - $538.32
$440.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$440.00
5 in stock
New / Open-Box Surplus
Need a Specific Revision?
$538.32
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (5) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

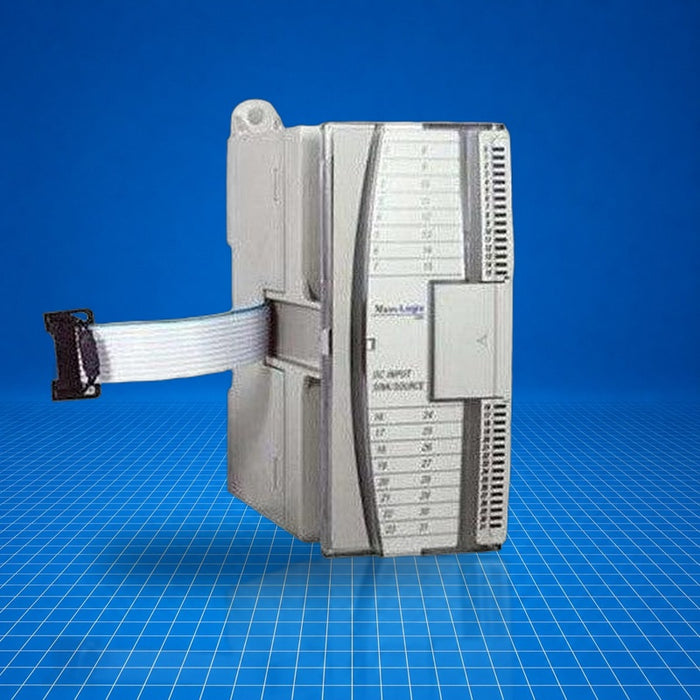

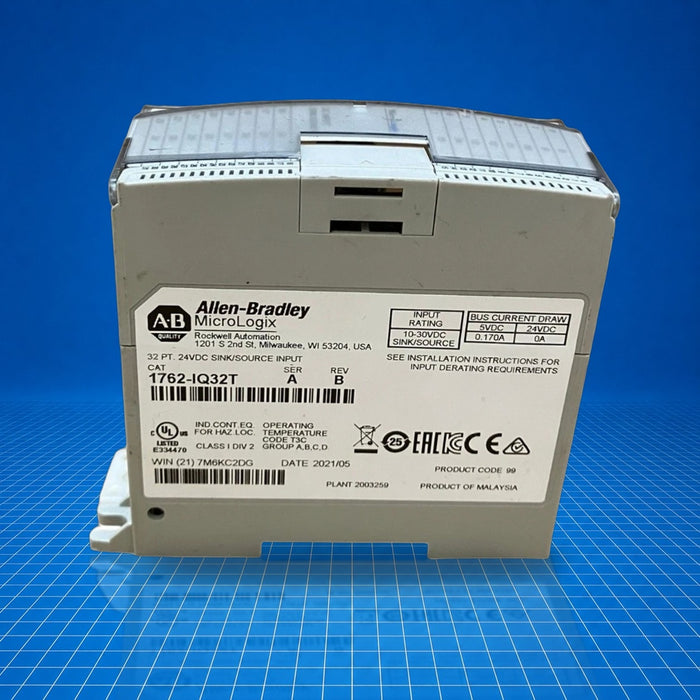

The 1762-IQ32T is an Allen-Bradley MicroLogix 1200 family digital input expansion module. It provides 32 channels of 24 V DC sink/source input capability to augment MicroLogix 1100, 1200, and 1500 controllers. The module plugs into the system backplane, offering isolated input groups and hemmed-in timing performance, fitting applications such as mid-scale machine control, sequential logic systems, or retrofit expansions. Part number 1762-IQ32T ensures compatibility with existing MicroLogix 1200 platforms.

Best Suited For

  • Expanding MicroLogix 1200 I/O capacity
  • Mid-level machine control applications
  • Adding discrete inputs in modular control systems
  • Retrofit or upgrade of existing MicroLogix installations
Inputs
32 channels
Voltage range
10…30 V DC (24 points @ 30 °C; 23 points @ 60 °C)
Groups
4 isolated groups (8 inputs each)
Heat dissipation (max)
6.8 W @ 30 V
Backplane current draw (max)
170 mA @ 5 V DC

Technical Specifications

I/O & Electrical

Number of inputs
32
Input voltage range
10…30 V DC (24 points @ 30 °C; 23 points @ 60 °C)
Voltage category
24 V DC sink/source
On-state voltage, min
10 V DC
Off-state voltage, max
5 V DC
On-state current, min
1.6 mA @ 10 V DC; 2 mA @ 15 V DC
On-state current, max
5.7 mA @ 26.4 V DC; 6.5 mA @ 30 V DC
Off-state current, max
1 mA
Nominal impedance
4.7 kΩ
Signal delay (On/Off)
8 ms / 8 ms
Bus current draw, max
170 mA @ 5 V DC; 0 mA @ 24 V DC
Heat dissipation, max
5.4 W @ 26.4 V; 6.8 W @ 30 V
Isolated groups
4 (inputs 0-7, 8-15, 16-23, 24-31)
Backplane isolation
1,200 V AC for 2 s or 1,697 V DC for 2 s; 75 V DC working (IEC Class 2 reinforced)

Communication & Power

Bus current draw, max
170 mA @ 5 V DC; 0 mA @ 24 V DC
Power dissipation
5.4 W @ 26.4 V; 6.8 W @ 30 V

Physical & Environmental

Mounting
DIN-rail via MicroLogix backplane
Dimensions (H × W × D)
90 mm × 40.4 mm × 87 mm (excluding mounting tabs height 110 mm)
Weight
200 g (approx. 0.44 lb)
Operating temperature
-20 … 60 °C (-4 … 140 °F)
Shock
30 G operating (panel-mounted), 3 pulses/axis
Vibration
10-500 Hz, 5 G, 0.030 in p-p, 2 hr/axis

Certifications

UL ListedUL Listed HazardousIEC Type-1

Hazardous Location, Class I Division 2 Groups A, B, C, D; UL Listed (as of May 19, 2026), IEC input compatibility Type 1.
