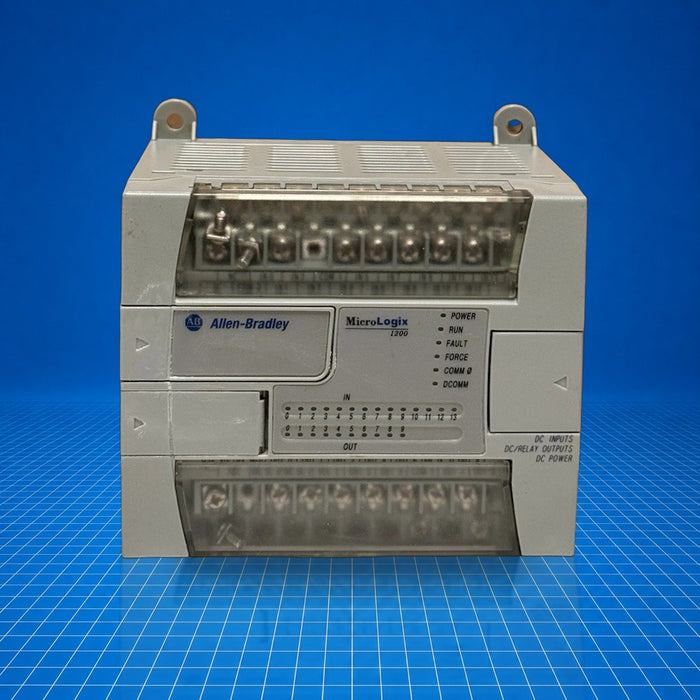

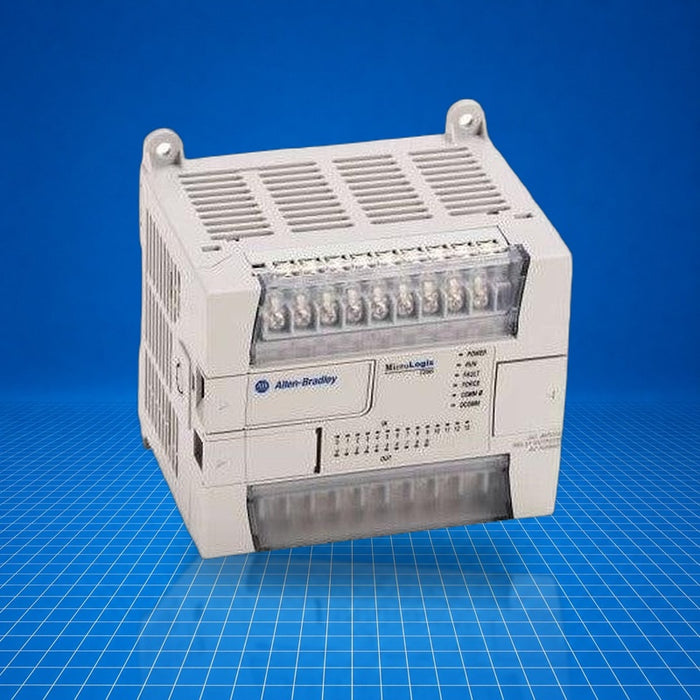

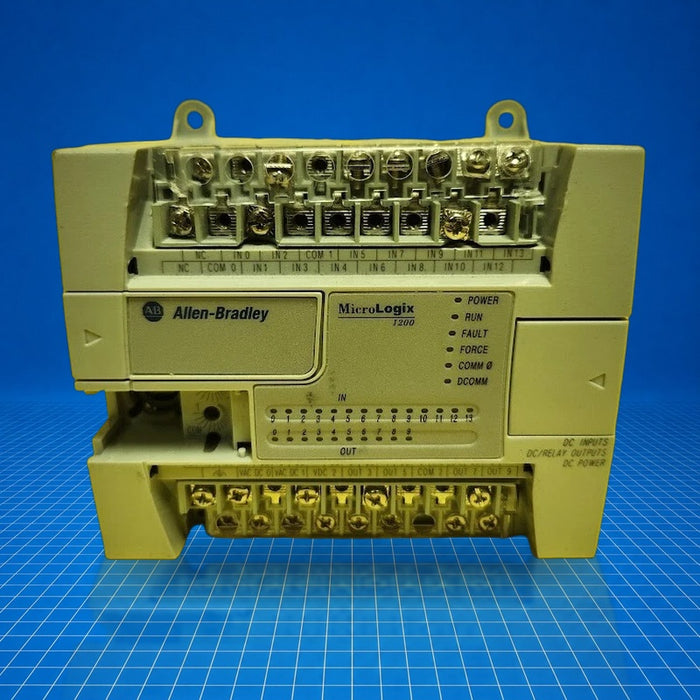

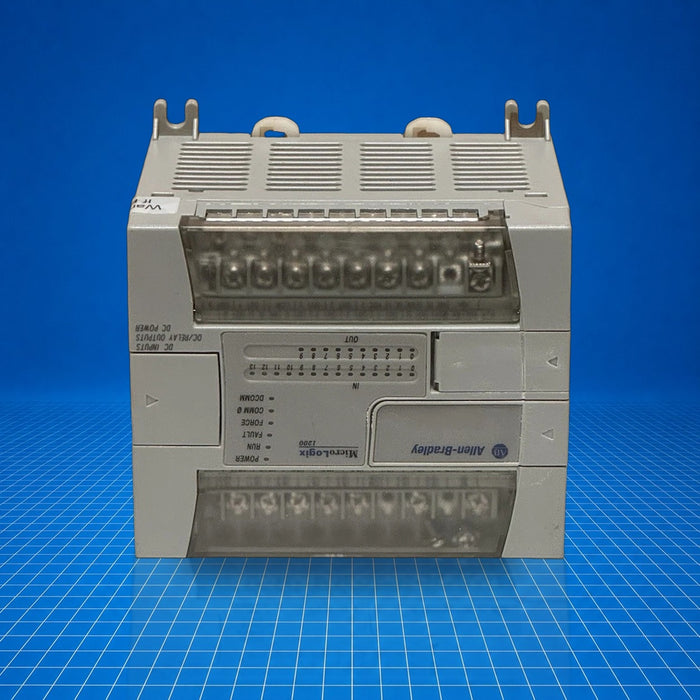

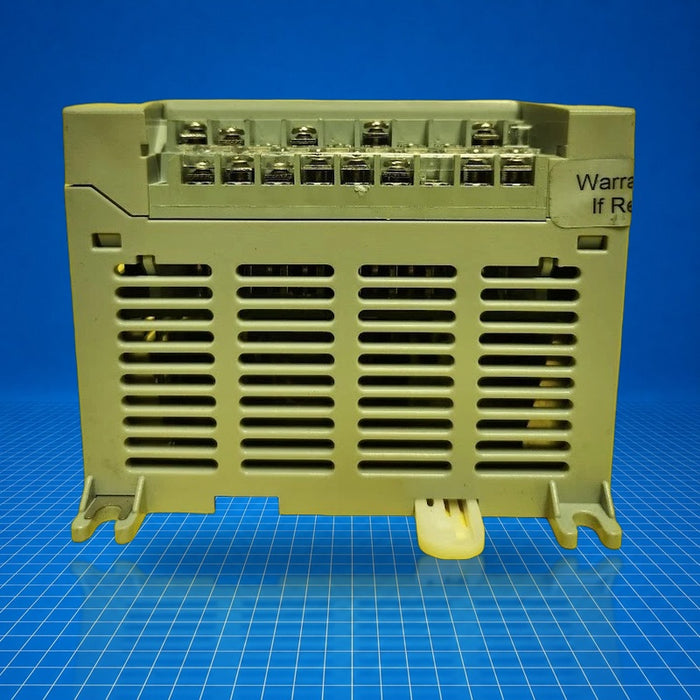

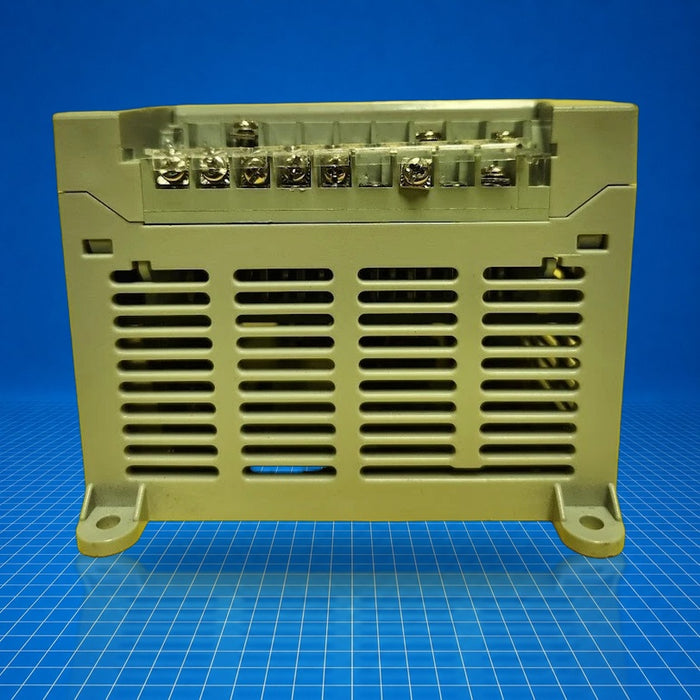

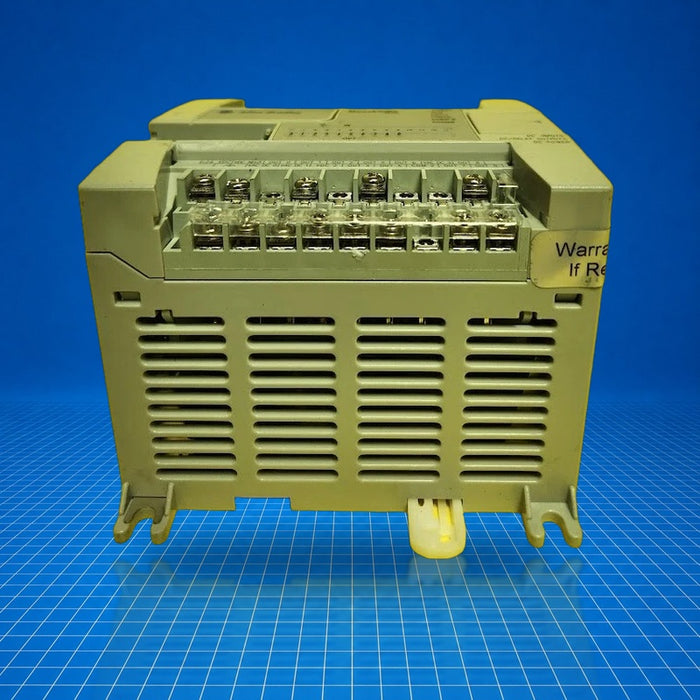

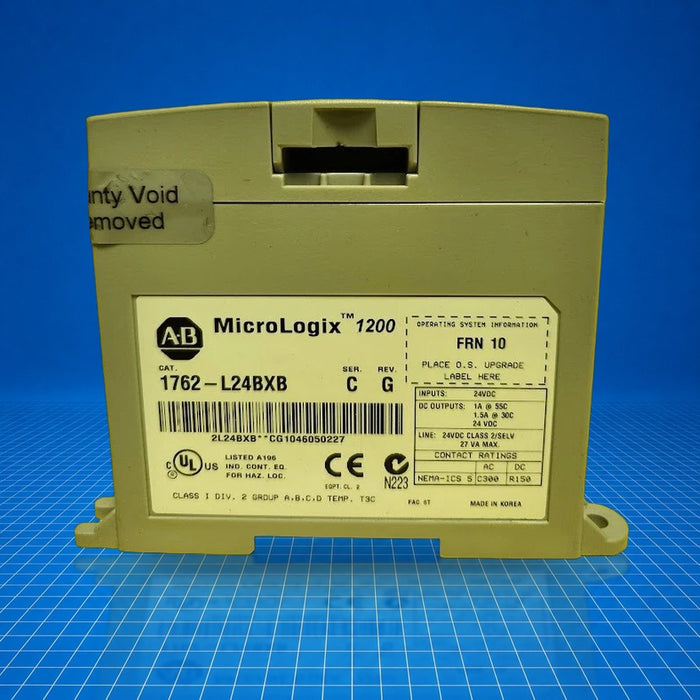

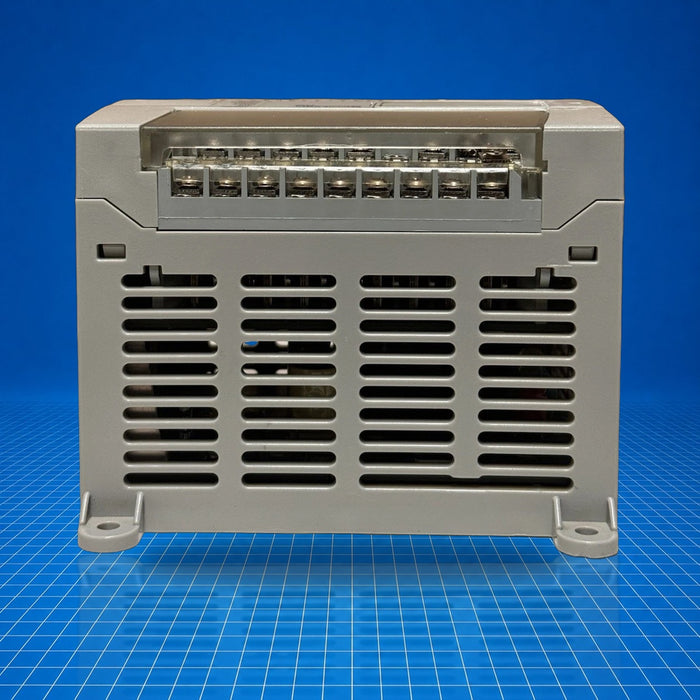

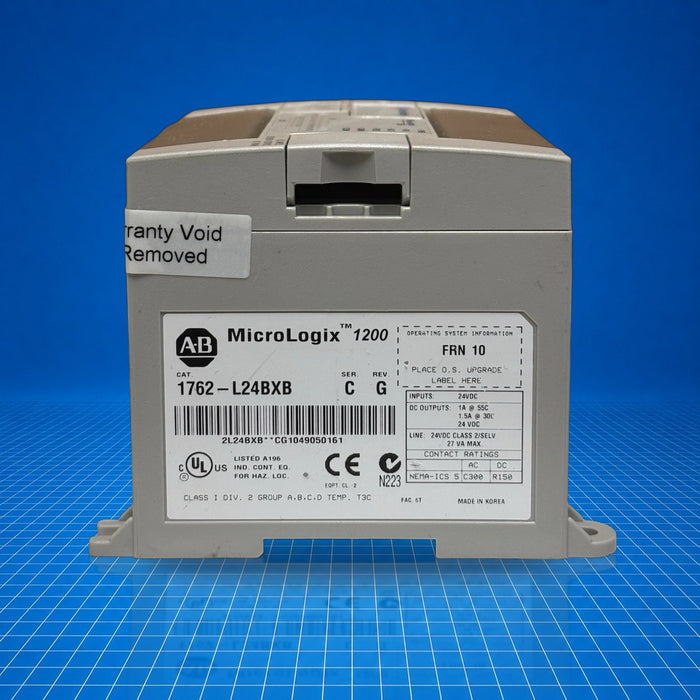

1762-L24BXB Allen-Bradley
Original price
$740.00
-
Original price
$2,429.01
Original price
$740.00
$740.00
-
$2,429.01
Current price
$740.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The 1762-L24BXB is an Allen-Bradley MicroLogix 1200 24-point programmable controller. It operates on 24 V DC supply, provides 10 standard plus 4 high-speed digital inputs, and offers mixed outputs: five relay, four standard 24 V DC FET, and one high-speed FET capable of pulse-train or PWM at up to 20 kHz. It supports DF1, DH-485, Modbus RTU, and ASCII communication via an 8-pin mini-DIN RS-232 port. Typical applications include basic motion tasks, counting, and general discrete control in OEM and machine-level systems. (1762-L24BXB)
Best Suited For
- Mixed discrete and basic motion-control applications using PTO/PWM
- Panel-level OEM or standalone machine logic with up to 24 I/O points
- Count, totalize or position monitoring tasks requiring high-speed I/O
- Systems using RS-232-based networking or legacy DF1/DH-485/Modbus RTU communication
Inputs
10 standard + 4 high-speed 24 V DC
Outputs
5 relay, 4 standard FET, 1 high-speed FET
Power supply
24 V DC
Memory
6 KB program/data
Technical Specifications
I/O & Electrical
Digital inputs
10 standard + 4 high-speed (20 kHz) 24 V DC sink/source
Relay outputs
5 relay, controlled load ≤ 1440 VA, group common current 7.5 A (per manufacturer spec for this variant)
FET outputs
4 standard FET, 1 high-speed FET (PTO/PWM capable, max 20 kHz, 100 mA)
Input power
24 V DC (nominal)
Communication & Power
Communication port
1 × 8-pin mini-DIN RS-232 (DF1, DH-485, Modbus RTU, ASCII)
Memory
6 KB internal program/data (manufacturer source)
Physical & Environmental
Dimensions (HxWxD)
90 × 110 × 87 mm (3.5×4.33×3.43 in)
Operating temperature
0 to 55 °C
Weight
~0.45 kg (1.0 lb)
