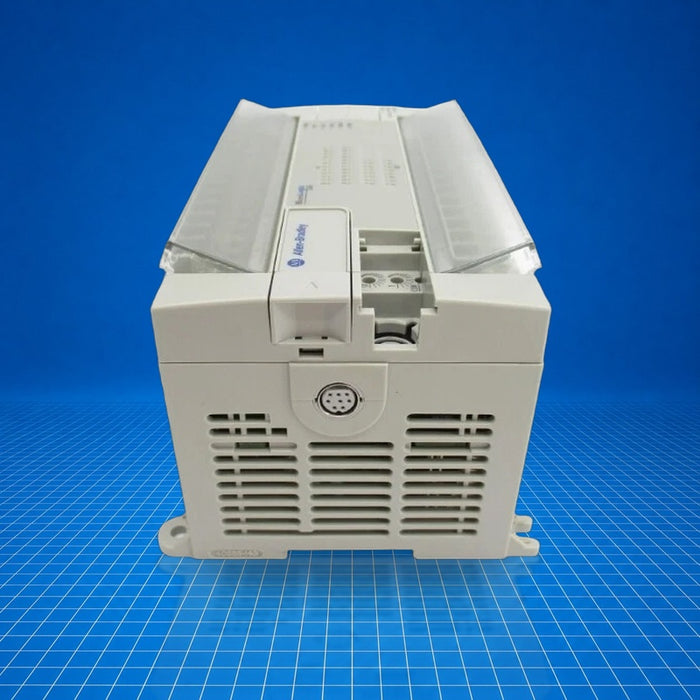

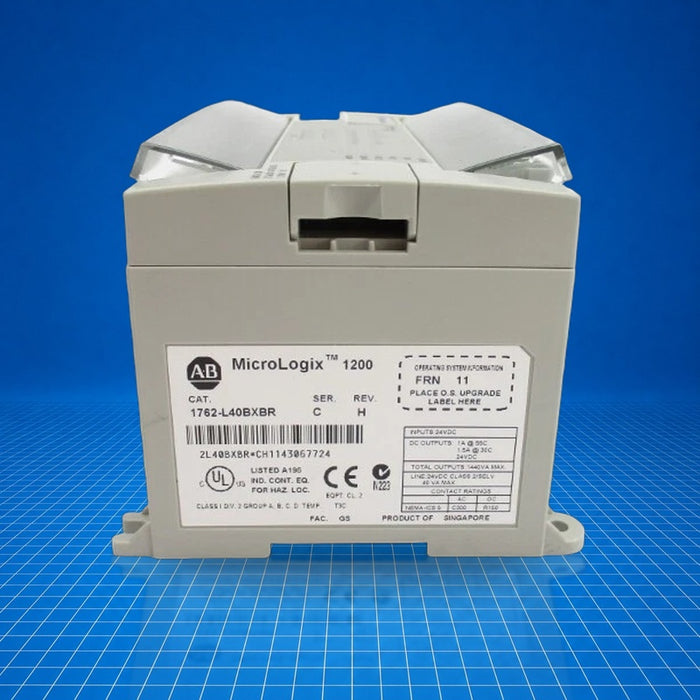

1762-L40BXBR Allen-Bradley

Name: 1762-L40BXBR Allen-Bradley
Brand: Allen Bradley
SKU: 1762-L40BXBR
Price: 2204.98 USD
Availability: InStock

$2,204.98 - $3,059.98

$2,204.98

$2,204.98 - $3,059.98

$2,204.98

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (5) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

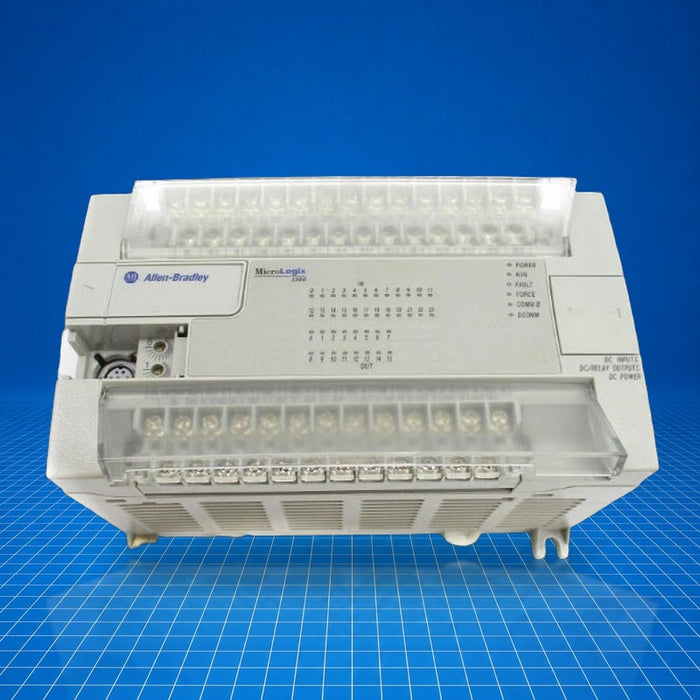

The 1762-L40BXBR is an Allen-Bradley MicroLogix 1200 programmable logic controller with 40 I/O points and a dedicated Programming/HMI serial port. It belongs to the MicroLogix 1200 family and provides up to 20 standard and 4 high-speed 24 V DC inputs, 8 relay outputs, 7 standard FET outputs, and 1 high-speed FET output. It operates on 24 V DC and supports DF1, DH-485, Modbus RTU, and ASCII protocols. This controller is typically used in mid-range discrete control applications in industrial automation panels, OEM machines, or stand-alone control systems. Part number 1762-L40BXBR delivers cost-effective distributed control for maintenance, machine, or remote I/O installations.

Best Suited For

Mid-range discrete control panels
On-machine OEM control systems
Retrofitting legacy MicroLogix installations
Applications requiring separate HMI programming port

Standard Inputs

20 × 24 V DC

High-speed Inputs

4 × 24 V DC

Relay Outputs

8

FET Outputs (std + HS)

7 + 1 (PTO/PWM)

Memory

6 KB

Technical Specifications

I/O & Electrical

Standard digital inputs

20 × 24 V DC

High-speed digital inputs

4 × 24 V DC (up to 20 kHz)

Relay outputs

8

FET outputs

7 standard + 1 high-speed (PTO/PWM capable)

FET total current rating

see publications (BXB/BXBR)

Communication & Power

Input voltage

24 V DC

Communication protocols

DF1, DH-485, Modbus RTU, ASCII

Communication ports

2 × RS-232C (includes dedicated Programming/HMI port)

Physical & Environmental

Memory

6 KB (4 KB program, 2 KB data)

Depth

87 mm

Height

90 mm

Country of Origin

Singapore
