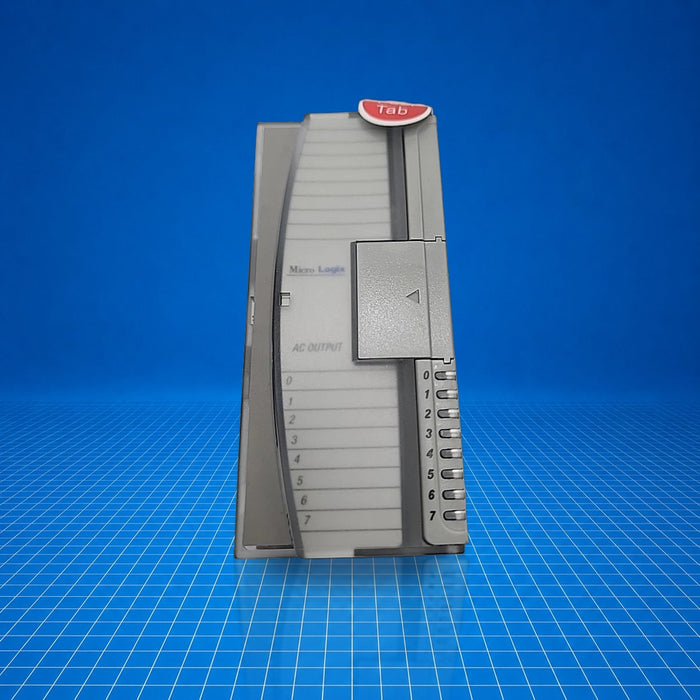

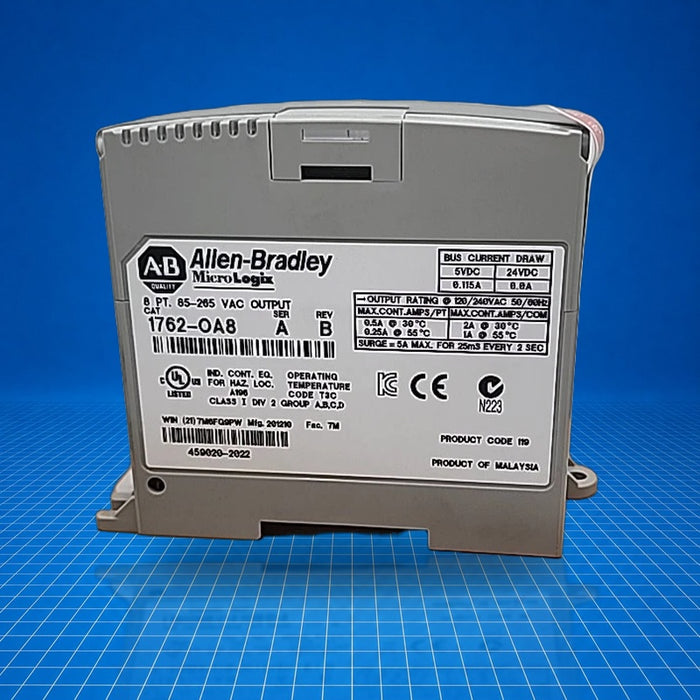

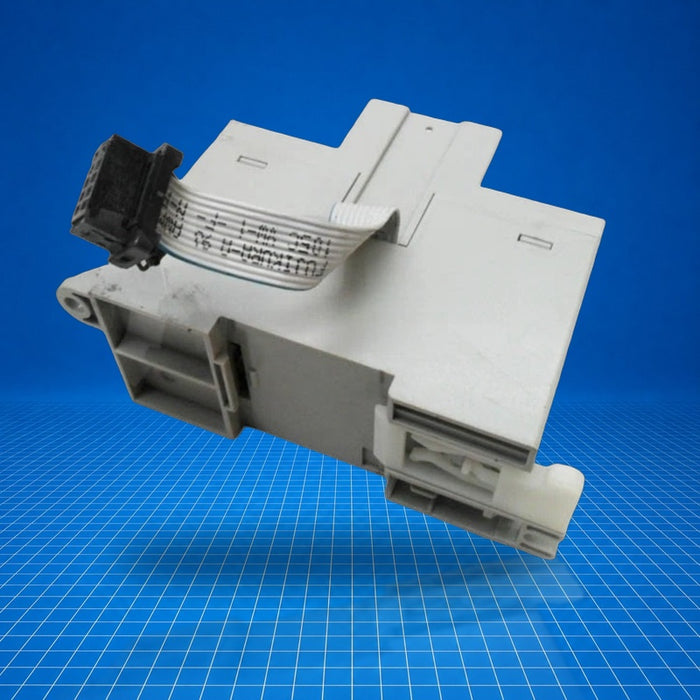

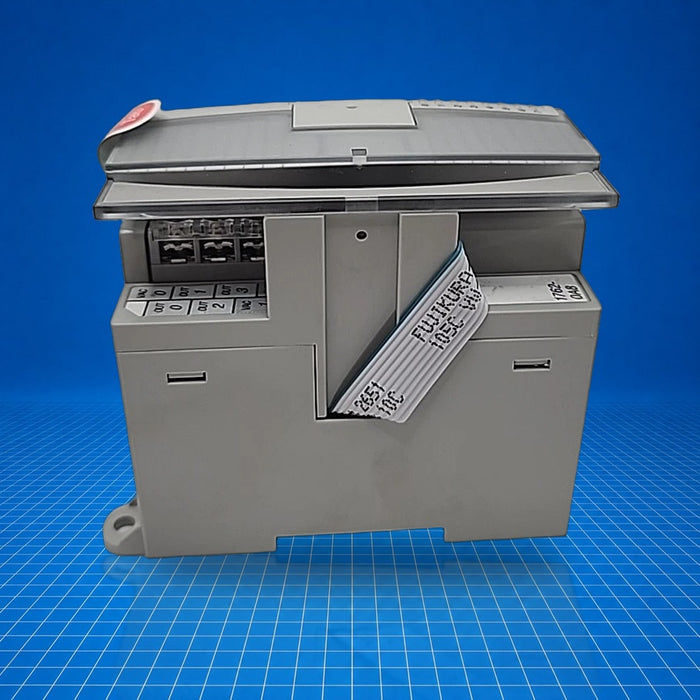

1762-OA8 Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1762-OA8 Allen-Bradley

$439.80 - $439.96
$439.96
$439.80 - $439.96
$439.96
Surplus - Tested (With Warranty)
Need a Specific Revision?
$439.96
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$439.80
5 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1762-OA8 is an Allen-Bradley MicroLogix 1200 series expansion I/O module providing eight isolated digital AC output channels (Triac outputs rated for 120/240 V AC). It attaches via ribbon-bus to the MicroLogix 1200 controller to expand control capabilities. Commonly applied in industrial control panels to drive AC loads-such as pilot lights, small fans or solenoids-within environments compliant with Class I Division 2 hazardous-location standards.

Best Suited For

  • MicroLogix 1200 system expansion
  • Controlling 120/240 V AC loads (triac outputs)
  • Panel-mounted industrial control applications
  • Use in Class I, Division 2 hazardous locations
Outputs
8 AC triac outputs
Operating voltage
85-265 V AC @ 47-63 Hz
Heat dissipation (max)
2.9 W
Bus current draw (max)
115 mA @ 5 V DC (0.575 W)
Isolation
Channel groups isolated; dielectric test 1836 V AC / 2596 V DC

Technical Specifications

I/O & Electrical

Number of outputs
8
Type of output
AC triac
Operating voltage range
85-265 V AC @ 47-63 Hz
Continuous current per point, max
0.5 A @ 30 °C; 0.25 A @ 55 °C
Continuous current per common, max
2.0 A @ 30 °C; 1.0 A @ 55 °C
Surge current, max
5.0 A (25 ms every 2 s)
On-state voltage drop, max
1.5 V @ 0.5 A
Off-state leakage current, max
2 mA @ 132 V; 2.5 mA @ 265 V
Bus current draw, max
115 mA @ 5 V DC (0.575 W)

Communication & Power

Heat dissipation, max
2.9 W
Bus connection
Ribbon-bus to MicroLogix 1200

Physical & Environmental

Dimensions (W×H×D)
40.4 × 90 × 87 mm
Weight
215 g
Operating temperature
-20 to 65 °C
Storage temperature, min
-40 °C
Shock
30 G panel-mounted (relay ops: 7 G)
Vibration
10-500 Hz, 5 G (relay ops: 1.5 G)
Altitude
Up to 2000 m
Humidity
5-95% non-condensing

Certifications

UL ListedcULusHazardous Location Class I Div 2

Certified for Hazardous Location, Class I Division 2, Groups A, B, C, D (UL 1604, cUL under CSA C22.2 No. 213); meets IEC immunity standards (IEC 1000-4-2/-3/-4/-5/-6); emissions EN50081-2 Class A.
