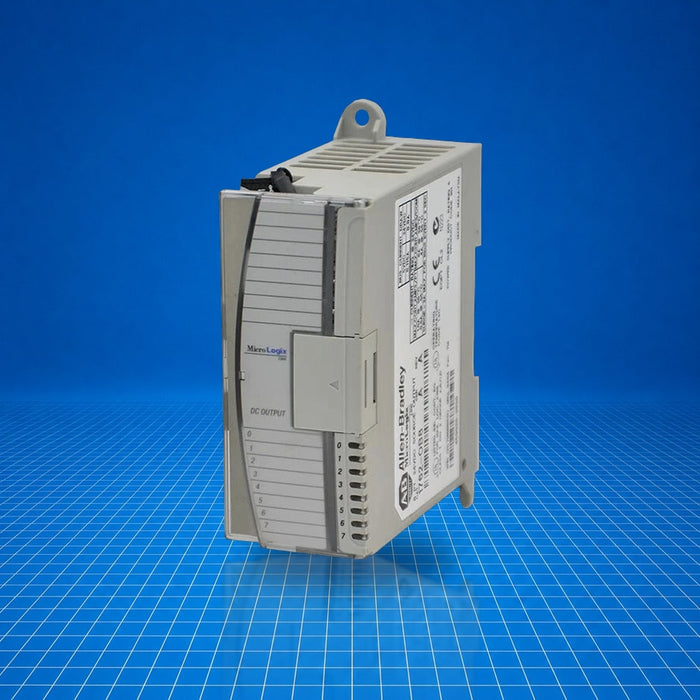

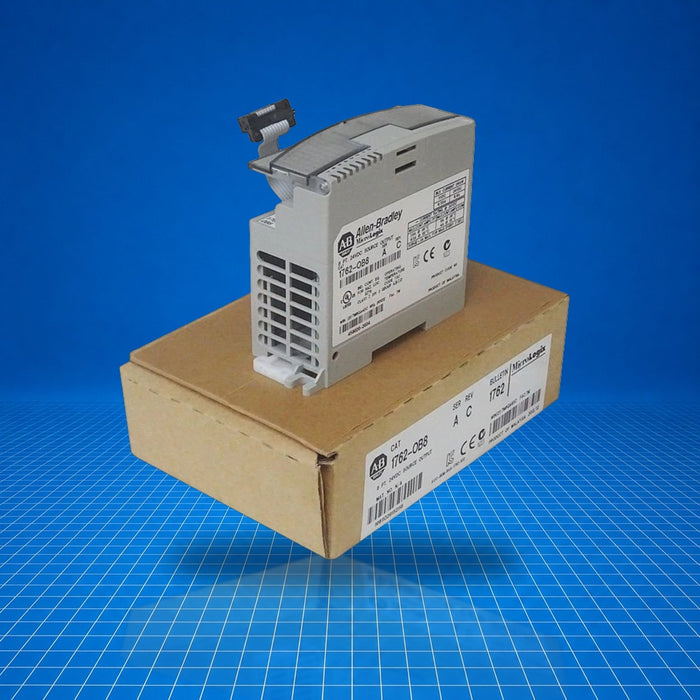

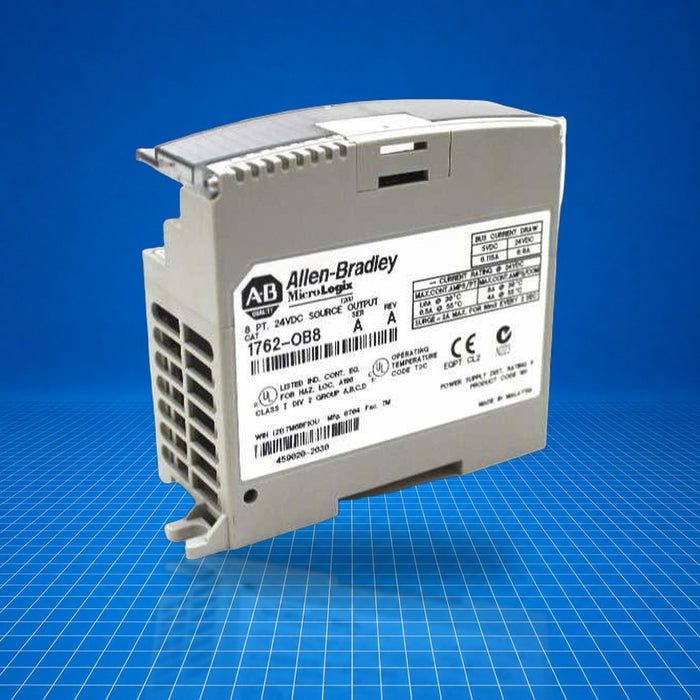

The 1762-OB8 is an Allen-Bradley MicroLogix 1200 expansion module providing eight 24 V DC source digital outputs for use with MicroLogix 1200 programmable controllers. It mounts directly on the backplane and supplies DC outputs for controlling discrete field devices. It is designed for general industrial environments such as machine control, conveyor actuation, or status signaling, where compact expansion of digital outputs is required. Part number 1762-OB8.
Best Suited For
- MicroLogix 1200 expansion I/O systems
- Controlling DC-powered field devices (solenoids, LEDs, relays)
- Applications within 0…55 °C ambient temperature
- Installations requiring isolated digital output groups
Outputs (points)
8
Operating voltage
20.4…26.4 V DC
Max continuous current per point
1 A @ 30 °C
Heat dissipation, max
1.61 W
Operating temperature range
-20…65 °C
Technical Specifications
I/O & Electrical
Number of digital outputs
8
Operating voltage range
20.4…26.4 V DC
On-state voltage drop, max
1.0 V DC
On-state current, min
1 mA
Off-state leakage current, max
1 mA
Continuous current per point, max
1 A @ 30 °C (0.5 A @ 55 °C)
Continuous current per common, max
8 A @ 30 °C (4 A @ 55 °C)
Continuous current per module, max
8 A @ 30 °C (4 A @ 55 °C)
Bus current draw, max
115 mA @ 5 V DC (0.575 W)
Heat dissipation, max
1.61 W
Signal delay (resistive load)
On 0.1 ms / Off 1.0 ms
Surge current, max
2.0 A (repeatable every 2 s @55 °C; every 1 s @30 °C for 10 ms)
Physical & Environmental
Width
40.4 mm
Height
90 mm
Depth
87 mm
Weight
210 g
Operating temperature
-20…65 °C
Storage temperature, min
-40 °C
Operating humidity
5…95% non-condensing
Shock (operating)
30 G panel mounted, 3 pulses/axis; relay ops 7 G
Vibration (operating)
10…500 Hz, 5 G, 0.030 in pk-pk, 2 h/axis; relay ops 1.5 G
Altitude
2000 m
Certifications
UL ListedcULusCEHazardous Location Class I Div 2
UL Listed (508), cULus, Hazardous Location Class I, Division 2, Groups A, B, C, D; CE; EN50081-2 emissions
