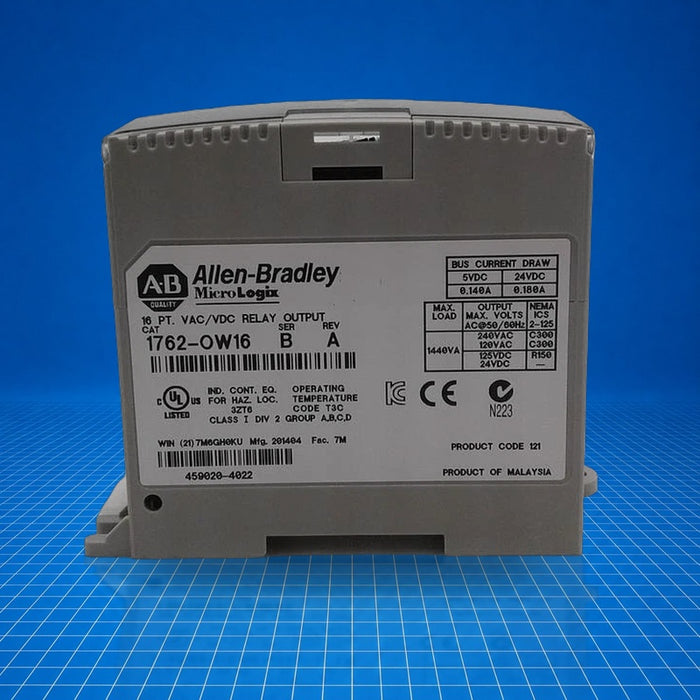

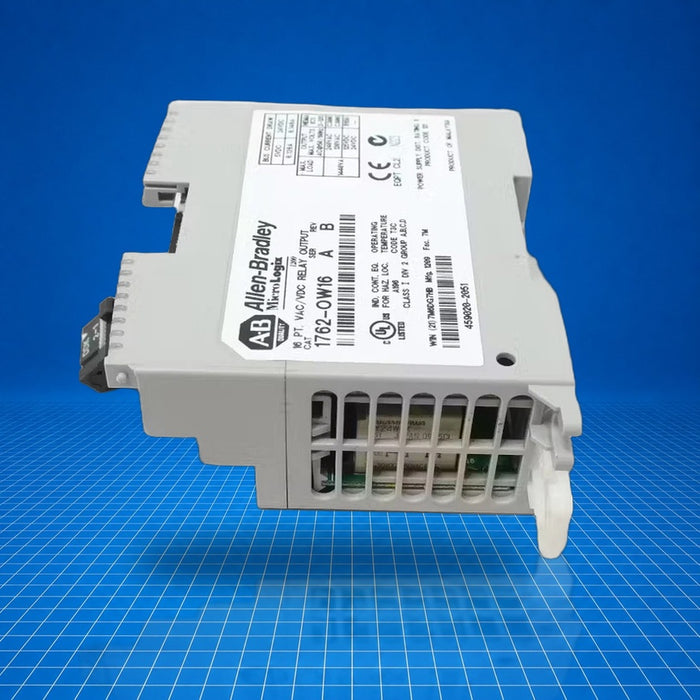

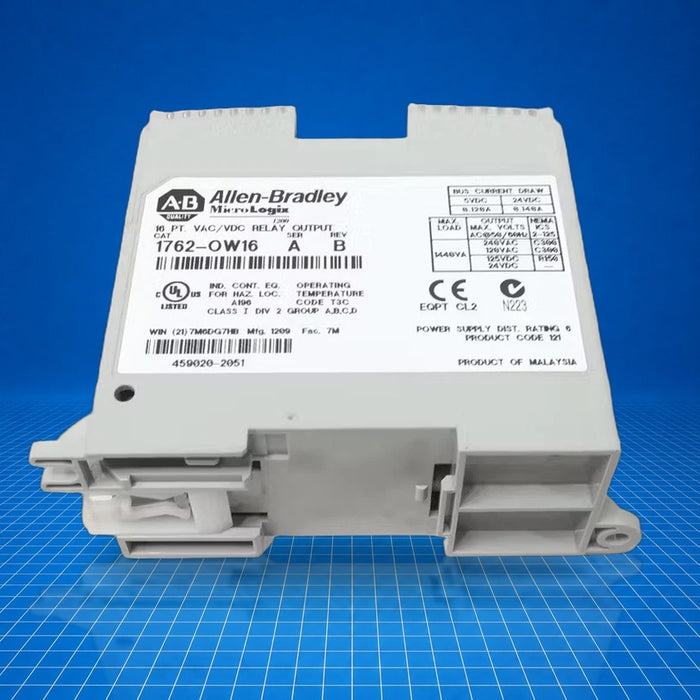

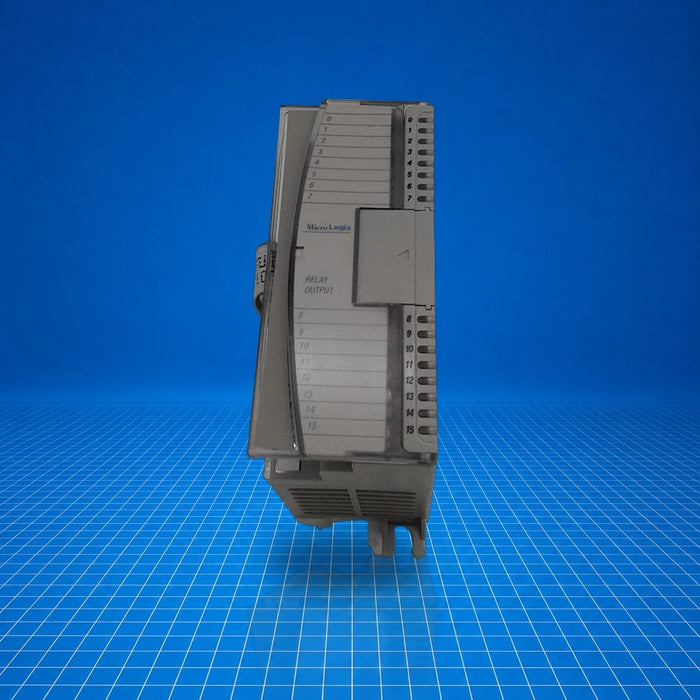

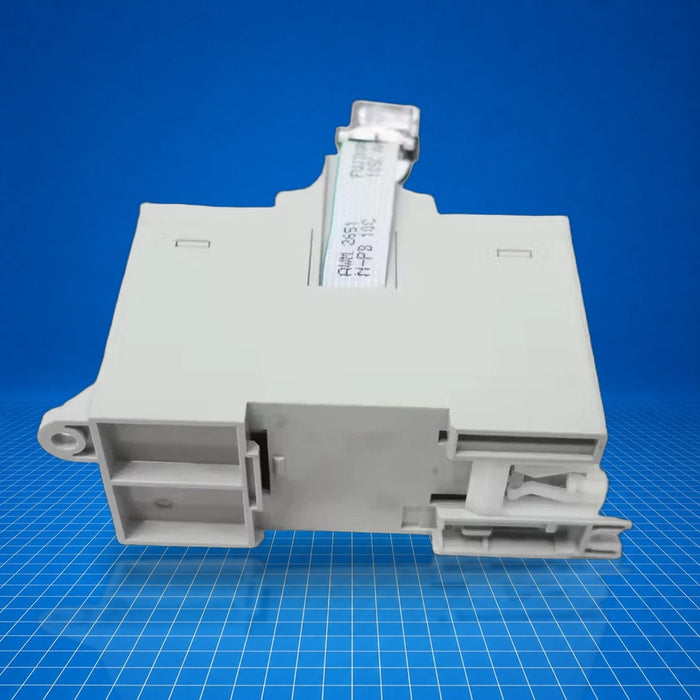

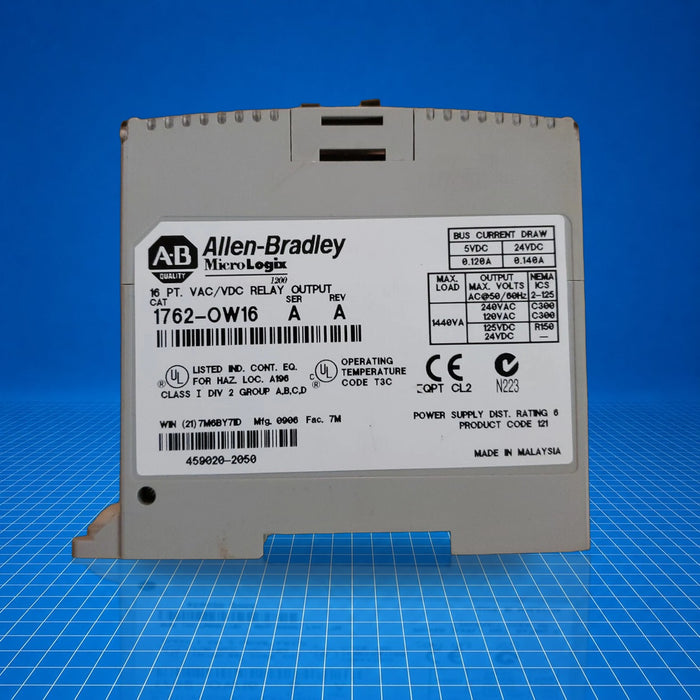

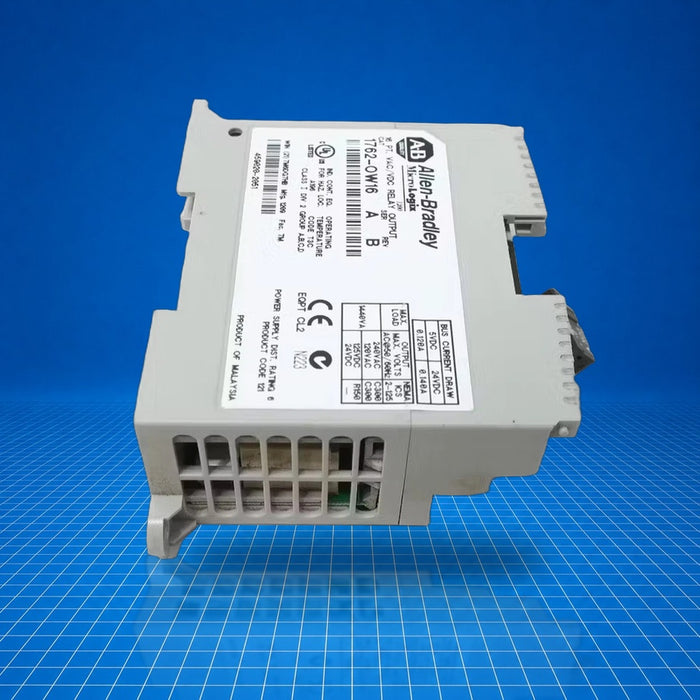

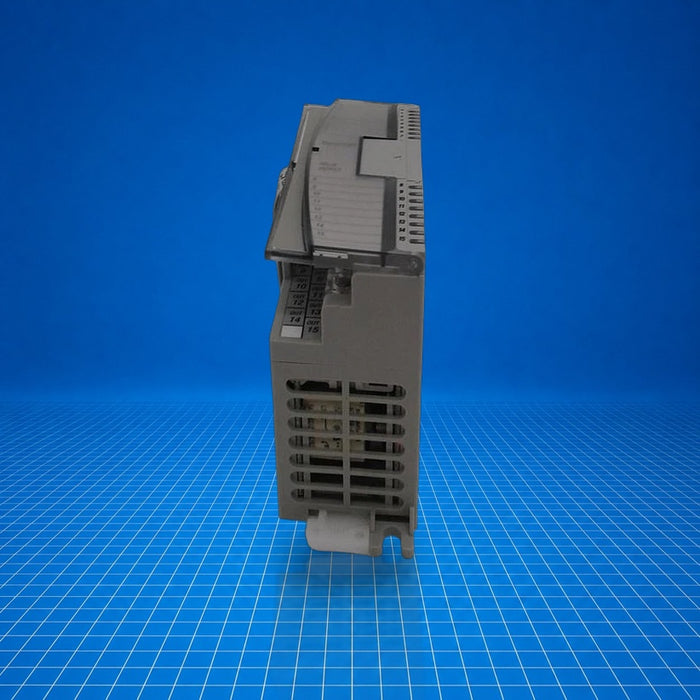

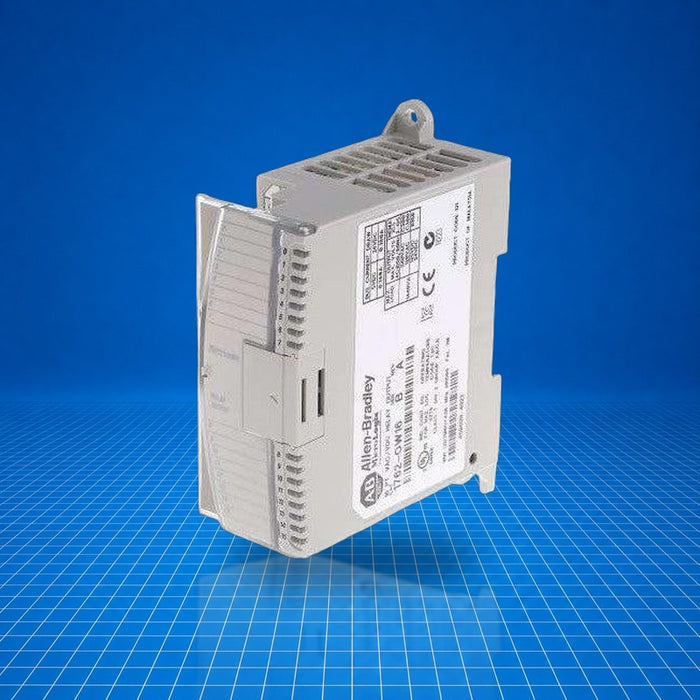

1762-OW16 Allen-Bradley
Product image is representative; revision or series may vary.
Contact us to request a specific version.

1762-OW16 Allen-Bradley

$450.00 - $476.00
$450.00
$450.00 - $476.00
$450.00
Surplus - Tested (With Warranty)
Need a Specific Revision?
$450.00
2 in stock
New / Open-Box Surplus
Need a Specific Revision?
$476.00
4 in stock
Ships today if ordered by 1 PM CST
Overnight shipping available
Qty Available: (2) ✓ Verified Stock every 24hrs
Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA
Same-day by 1 PM CST
Tested & inspected
Every unit, before it ships
1-year warranty
Backed direct by us
30-day returns
Hassle-free RMA
Stock verified / 24 hrs
Real-time availability
Photos on request
Your exact unit, ~5 min
Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The 1762-OW16 is a MicroLogix 1200 system expansion module from Allen-Bradley providing sixteen isolated relay output channels (VAC/VDC). It attaches to the MicroLogix 1200 base controller to switch external loads in control and automation systems. Typical industrial applications include machine tool control, light or motor switching, conveyor control, and general-purpose output expansion. The 1762-OW16 allows integration of higher-voltage or AC loads via screw-connected relay contacts. Part number 1762-OW16.

Best Suited For

  • MicroLogix 1200 I/O expansion
  • Switching mixed-voltage AC/DC loads
  • Machine or process control output expansion
  • Panel-mounted relay output switching
Outputs (relay points)
16
Operating voltage range
5…265 V AC, 5…125 V DC
Max continuous current per module
16 A
Heat dissipation, max
6.1 W
Operating temperature
-20…65 °C

Technical Specifications

I/O & Electrical

Number of outputs
16
Operating voltage range
5…265 V AC, 5…125 V DC
Max continuous current per module
16 A
Max continuous current per common
8 A
Max continuous current per point
2.5 A
Bus current draw, max
180 mA @ 24 V DC (4.32 W)
Time delay, resistive load (On/Off)
10 ms / 10 ms
Off-state leakage current, max
0 mA
On-state current, min
10 mA
I/O isolation
Isolated (groups 0-7, 8-15)
Heat dissipation, max
6.1 W

Communication & Power

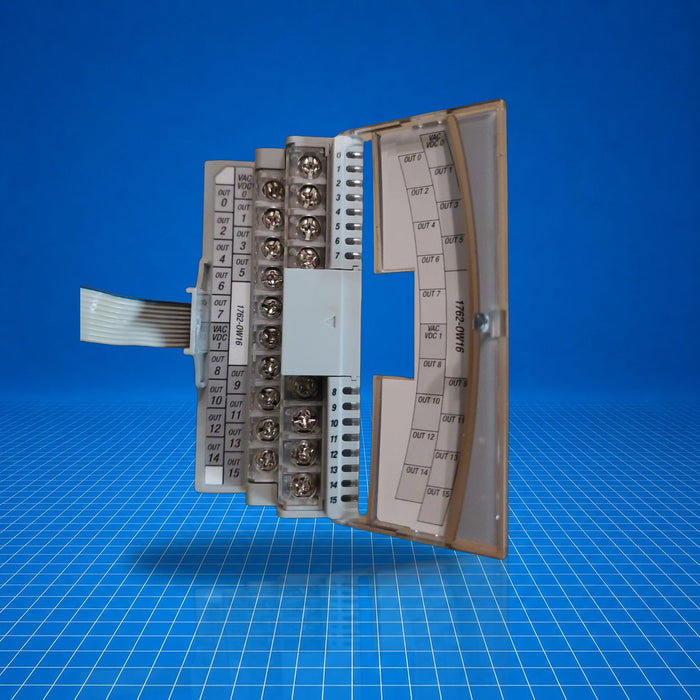

Type of connection
Screw connection

Physical & Environmental

Operating temperature
-20…65 °C
Storage temperature
-40 °C
Altitude
2000 m
Shock, operating
30 G panel mounted; relay ops: 7 G
Vibration, operating
10…500 Hz, 5 G, 0.030 in pp, 2 hr per axis; relay ops: 1.5 G
Dimensions (W × H × D)
40.4 mm × 90 mm × 87 mm
Weight
285 g
EMC immunity (ESD, RF, EFT/B, Surge)
IEC1000-4-2, -3, -4, -5, -6 various levels
Operating humidity
5…95% noncondensing

Certifications

UL ListedUL Listed Hazardous

Hazardous Location, Class I, Division 2, Groups A, B, C, D (UL 1604; C-UL under CSA C22.2 No. 213); UL Listed Hazardous and UL Listed as of May 20, 2026.
