1764-24AWA Allen-Bradley
Original price
$1,072.50
-
Original price
$1,749.88
Original price
$1,072.50
$1,072.50
-
$1,749.88
Current price
$1,072.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

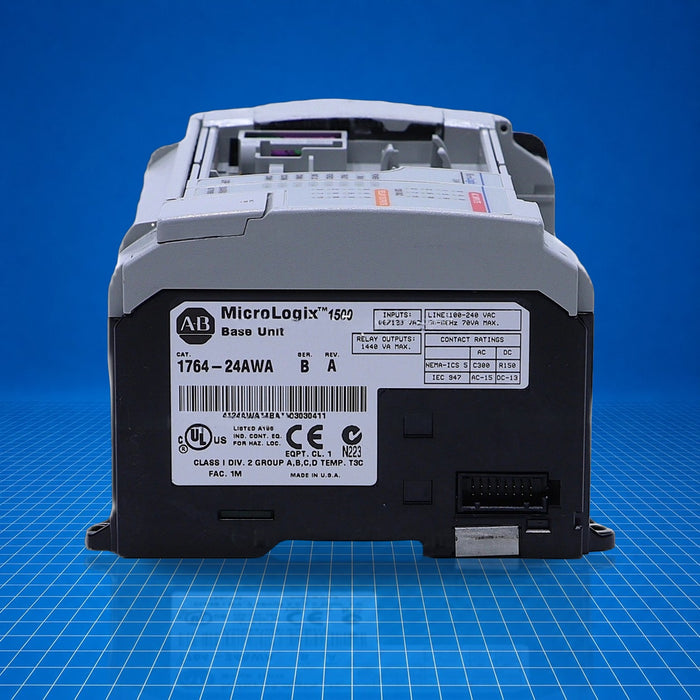

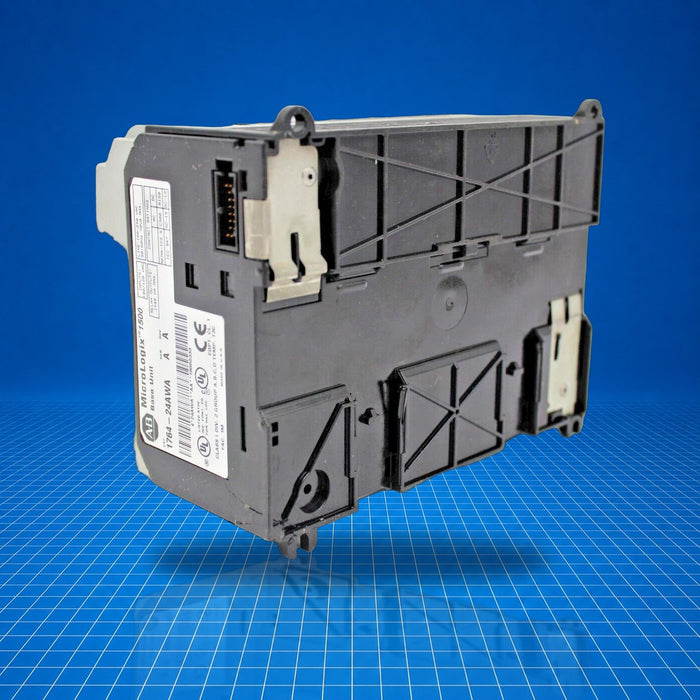

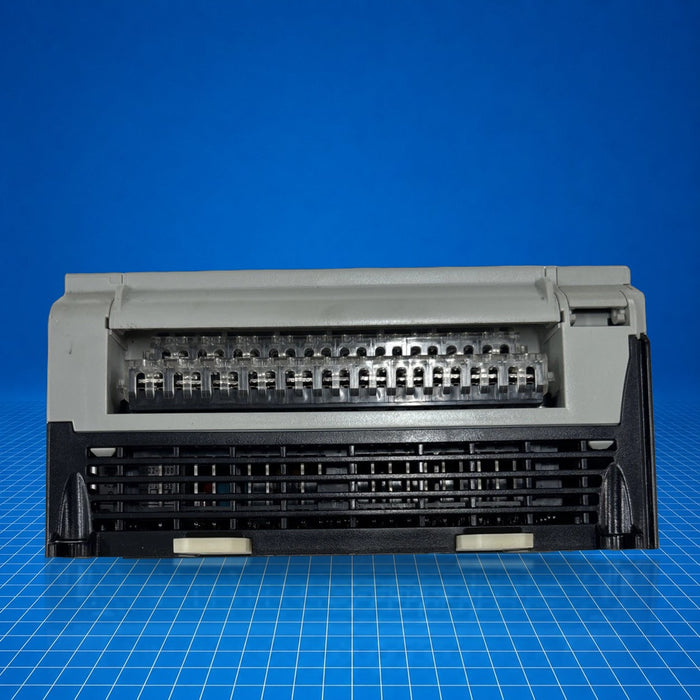

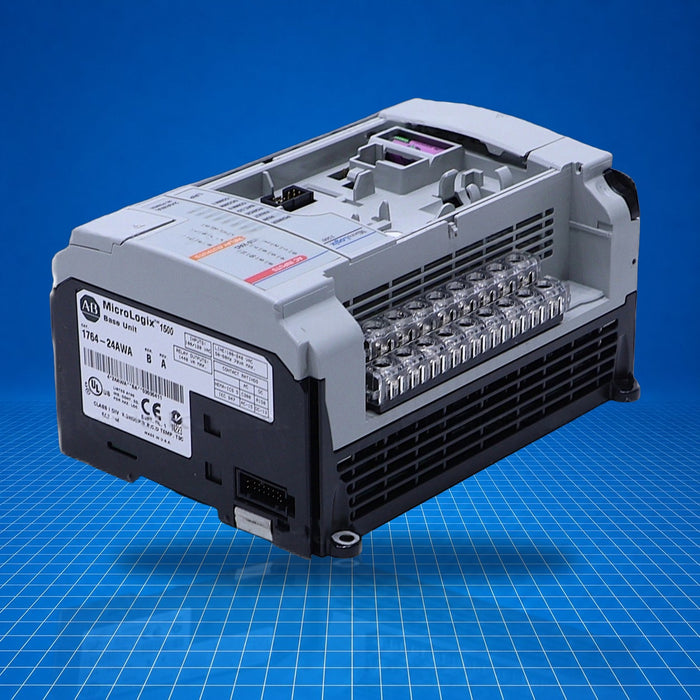

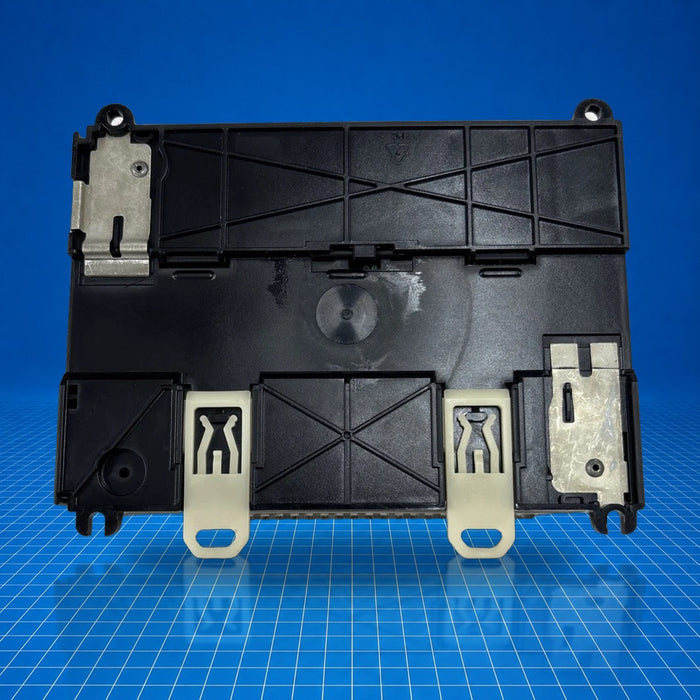

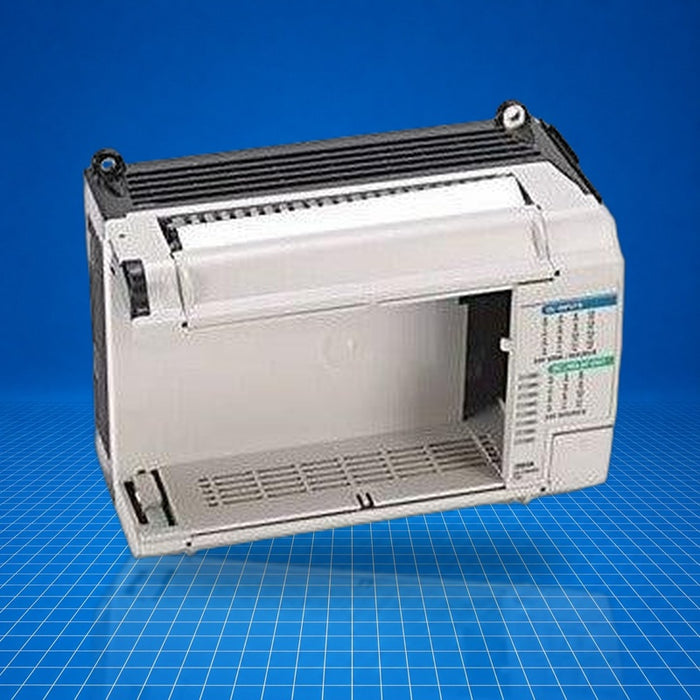

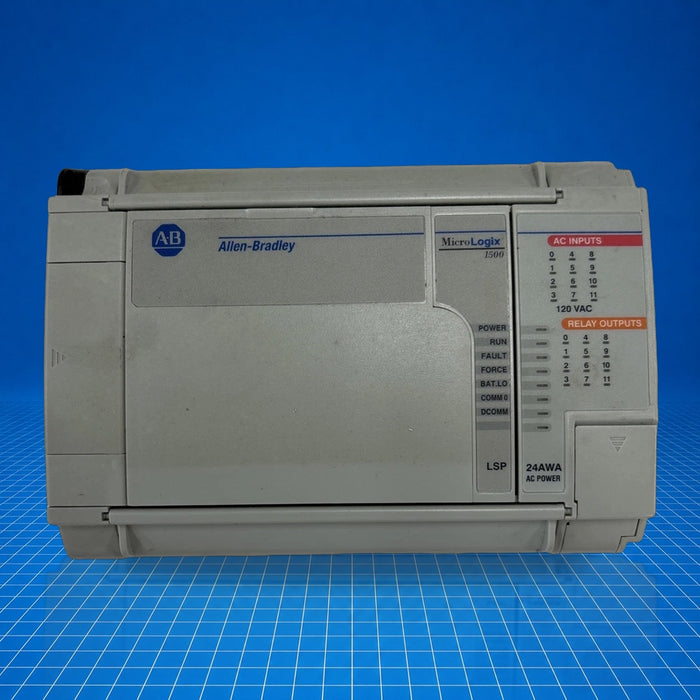

The 1764-24AWA is an Allen-Bradley MicroLogix 1500 series base unit (controller) providing 12 discrete AC inputs and 12 relay outputs, intended for industrial control systems. It accepts 120 VAC power and accepts removable processor modules (e.g., 1764-LSP or 1764-LRP) for user programmability and communication. Typically used in small machine control, OEM equipment, packaging lines, and stand-alone automation installations, the 1764-24AWA allows expanded I/O (up to 512 points) via external expansion modules as part of a compact, modular MicroLogix 1500 control system.
Best Suited For
- Small-machine and OEM control systems
- Applications requiring ac discrete I/O with relay outputs
- Existing MicroLogix 1500 deployments (1764-LSP/LRP CPU)
- Systems needing up to 512 total I/O via expansion
Discrete I/O (in/out)
12 in / 12 out (relay)
Input voltage
120 VAC
Max expandable I/O
512 points
Dimensions (H×L×D)
5.43 × 6.62 × 3.43 in
Mounting orientation
Horizontal (DIN-rail)
Technical Specifications
I/O & Electrical
Discrete inputs
12 AC inputs
Discrete outputs
12 relay outputs
Max expanded I/O
512 points
Communication & Power
Input voltage
120 VAC
Processor compatibility
1764-LSP, 1764-LRP (processor modules)
Physical & Environmental
Dimensions (H × L × D)
5.43 × 6.62 × 3.43 in
Mounting
Horizontal (DIN-rail)
