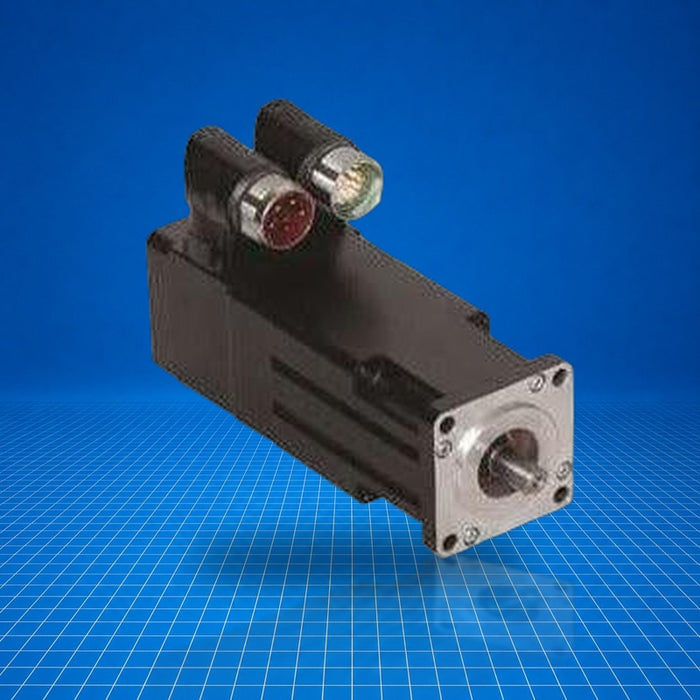

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
MPL-A1520U-VJ72AA Allen-Bradley
Original price
$0.00
-
Original price
$1,562.50
Original price
$1,562.50
$0.00
-
$1,562.50
Current price
$1,562.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MPL-A1520U-VJ72AA is a Bulletin MPL low-inertia brushless rotary servo motor from the Allen-Bradley MP Series. It is a 230 V AC, 63 mm frame (size 15), 50.8 mm stack length (stack 20) motor, rated 7 000 rpm with a multi-turn high-resolution absolute encoder and keyed shaft extension. It interfaces via a right-angle, 180° rotatable SpeedTEC DIN connector. Designed for motion control systems, it provides precise position feedback and moderate torque, suitable for machine tool axes, indexing devices, or general automation motion applications. (Part MPL-A1520U-VJ72AA)
Best Suited For
- Mid-range motion-control axes
- Indexing or positioning systems
- Automated assembly or handling equipment
- Integration with Kinetix servo drive platforms
Voltage class
230 V AC
Frame size / Stack length
63 mm / 50.8 mm
Rated speed
7 000 rpm
Feedback
Multi-turn absolute encoder
Connector
SpeedTEC DIN, right-angle, 180° rotatable
Technical Specifications
I/O & Electrical
Armature voltage
230 V AC
Rated output
0.27 kW
Continuous stall torque
0.49 N·m (4.3 lb-in)
Peak stall torque
1.58 N·m (14 lb-in)
Continuous stall current
1.8 A (0-pk)
Peak stall current
6.1 A (0-pk)
Communication & Power
Connector type
SpeedTEC DIN, right-angle, 180° rotatable
Feedback interface
Multi-turn high-resolution absolute encoder
Physical & Environmental
Frame size
63 mm
Stack length
50.8 mm
Rotor inertia
0.000013 kg·m² (0.00012 lb-in-s²)
Weight
1.2 kg (2.6 lb)
