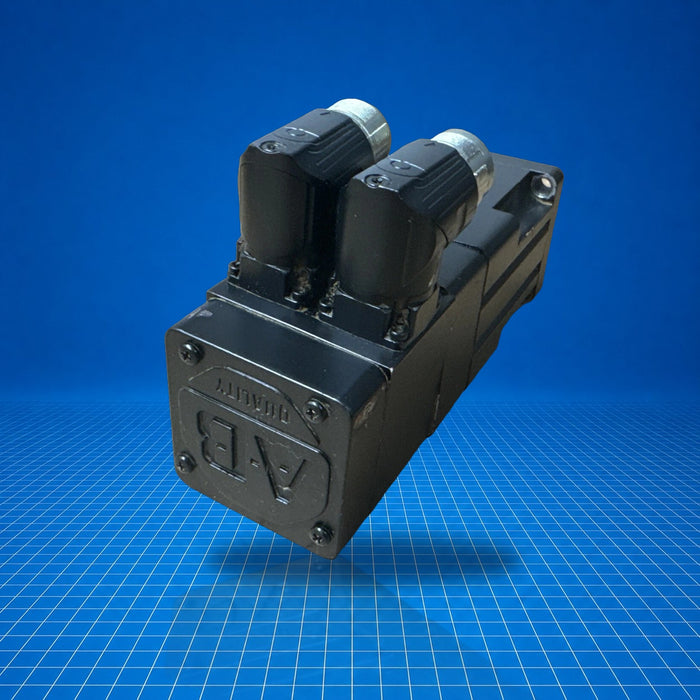

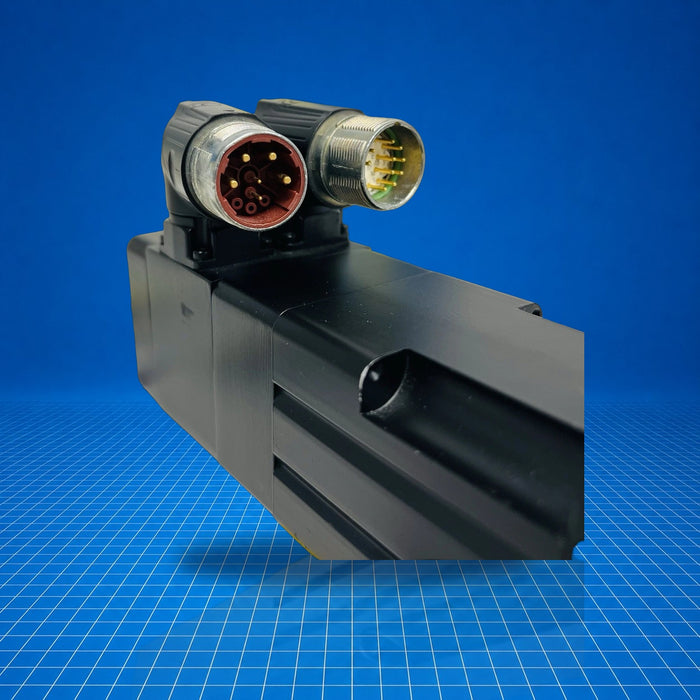

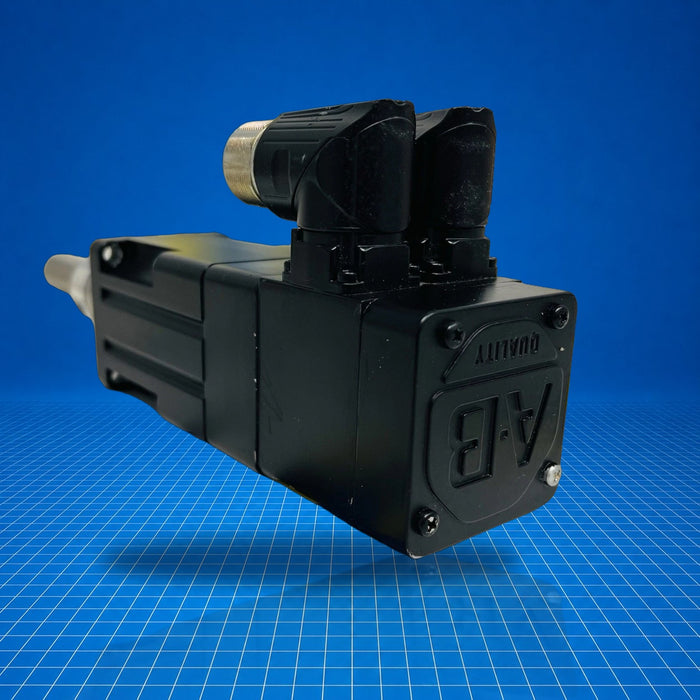

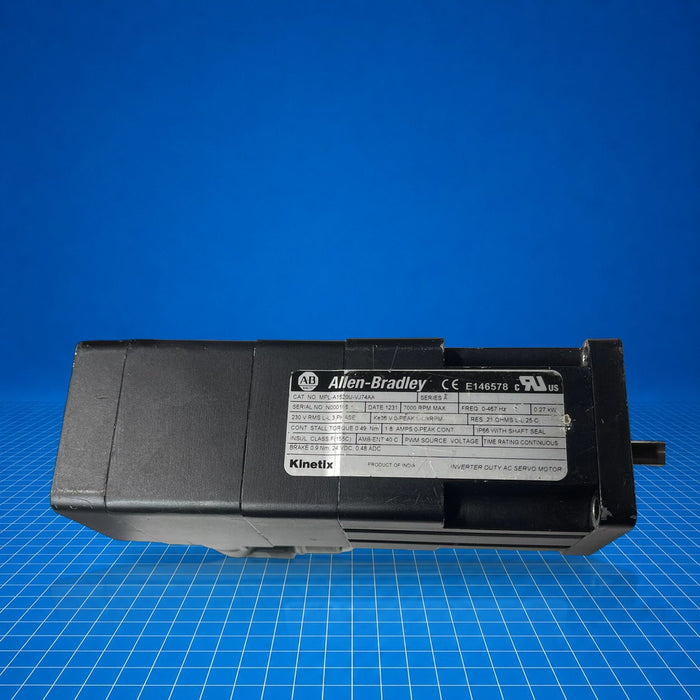

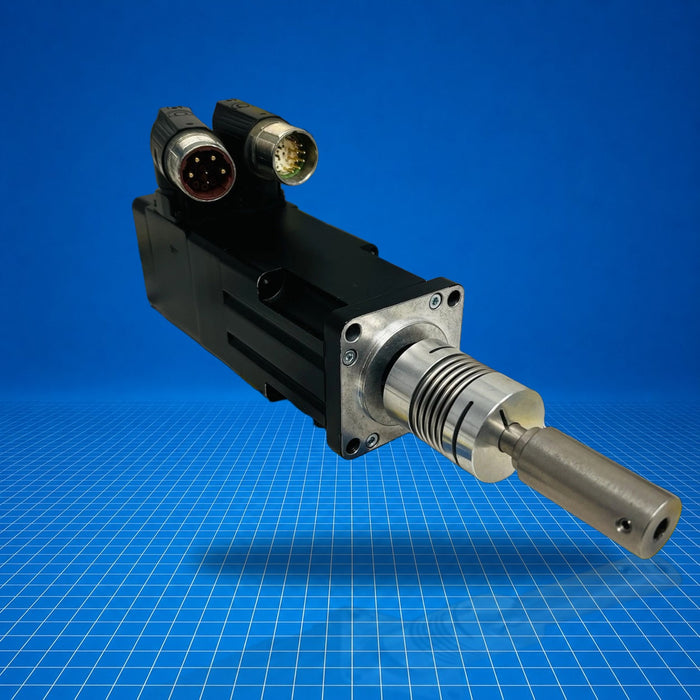

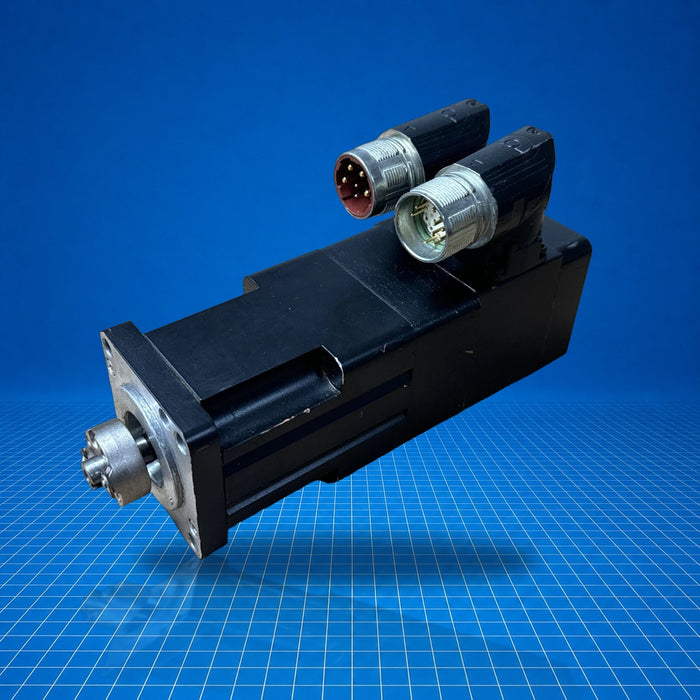

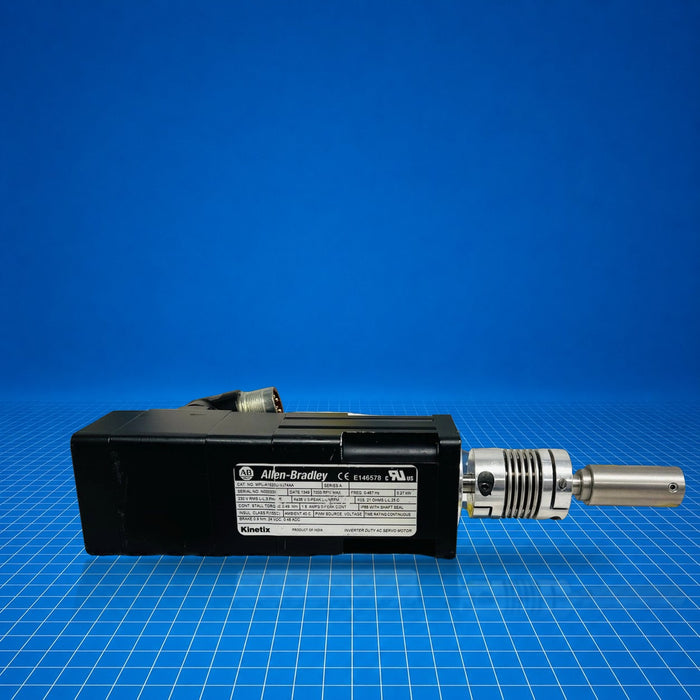

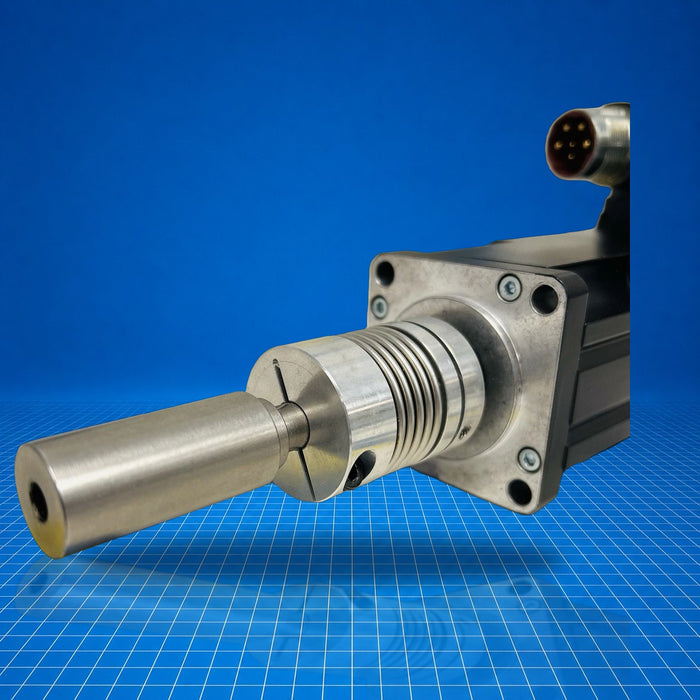

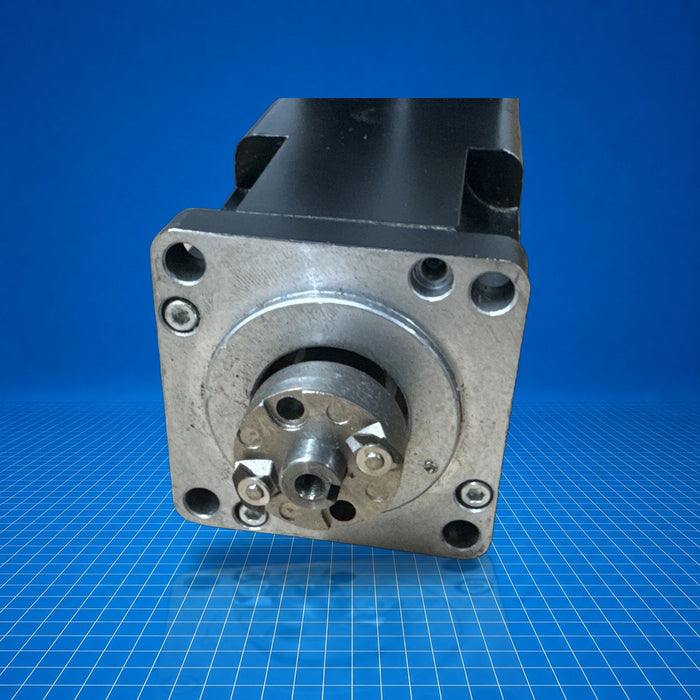

MPL-A1520U-VJ74AA Allen-Bradley
Original price
$0.00
-
Original price
$1,375.00
Original price
$1,375.00
$0.00
-
$1,375.00
Current price
$1,375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

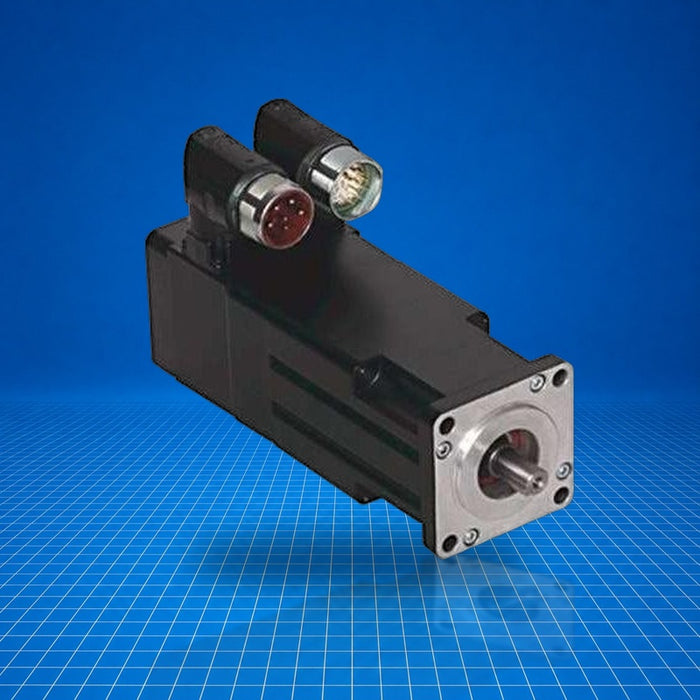

The Allen-Bradley MPL-A1520U-VJ74AA is a low-inertia, permanent-magnet rotary servo motor from the MPL series by Rockwell Automation. It operates at 230 V AC class, delivers a rated speed of 7000 rpm, and includes a built-in 24 V DC holding brake and multi-turn high-resolution absolute encoder feedback. The motor features a 63 mm frame, 2-inch magnetic stack length, circular DIN right-angle connector, and IEC metric mounting flange. It is used in motion control systems for positioning in packaging, pick-and-place, and general machine automation applications. Part number is MPL-A1520U-VJ74AA.
Best Suited For
- High-precision position control loops
- On-machine servo installations with limited space
- Systems requiring built-in holding brake
- Integration with Kinetix drives and PowerFlex family
Voltage class
230 V AC
Rated speed
7000 rpm
Frame size
63 mm
Brake
24 V DC holding brake
Encoder feedback
Multi-turn absolute
Technical Specifications
I/O & Electrical
Voltage class
230 V AC
Continuous stall torque
0.49 N·m (4.3 lb·in.)
Peak stall torque
1.58 N·m (14 lb·in.)
Continuous stall current (0-peak)
1.8 A
Peak stall current (0-peak)
6.1 A
Communication & Power
Brake voltage
24 V DC
Connector style
Circular DIN, right-angle, 180° rotatable
Physical & Environmental
Frame size
63 mm
Magnetic stack length
2 in.
Rotational speed
7000 rpm
Ambient operating temperature
0 to 40 °C
Ambient storage temperature
-30 to 70 °C
Mounting flange
IEC metric
Rotor inertia
0.000013 kg·m² (0.00012 lb·in.·s²)
