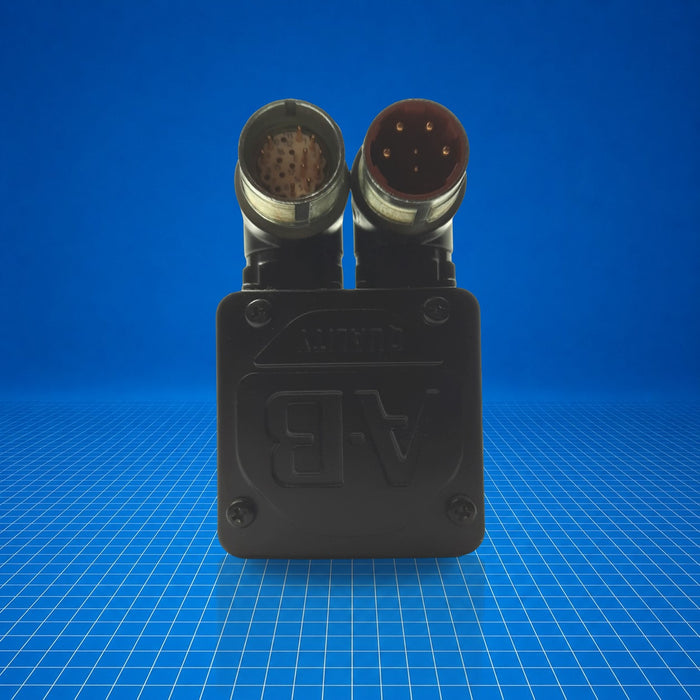

MPL-A1530U-VJ74AA Allen-Bradley
Original price
$1,749.98
-
Original price
$1,872.50
Original price
$1,872.50
$1,749.98
-
$1,872.50
Current price
$1,872.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

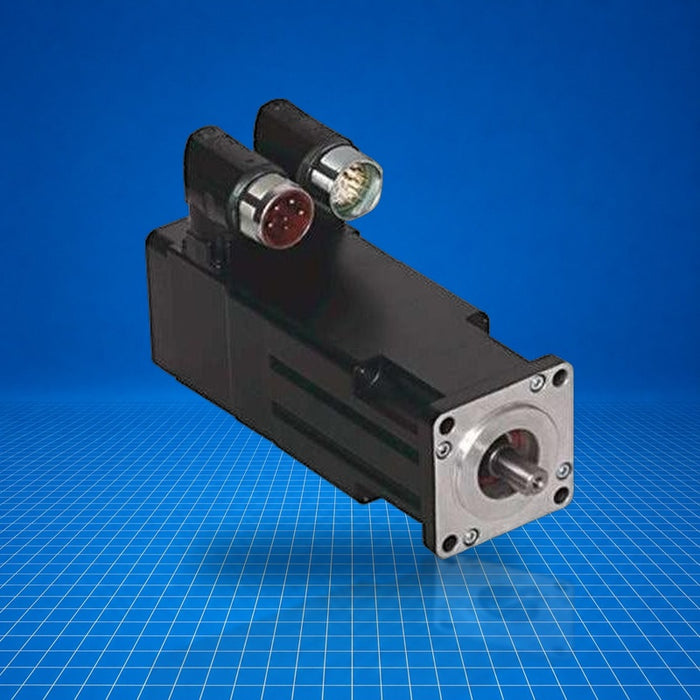

The MPL-A1530U-VJ74AA is an Allen-Bradley MP-Series, low-inertia, 230 V AC brushless rotary servo motor with a 63 mm (2.48 in.) frame and 76.2 mm (3.0 in.) magnet stack. It provides 7000 rpm nominal speed and absolute multi-turn encoder feedback. It includes a keyed shaft extension, right-angle SpeedTEC DIN connector (180° rotatable), and a 24 V DC brake. It integrates into motion control systems paired with PowerFlex or Kinetix drives, used in precision positioning and assembly, pick-and-place, and compact automation applications.
Best Suited For
- Precision positioning on compact machinery
- Integration with PowerFlex/Kinetix servo drive systems
- Applications requiring absolute multi-turn feedback
- On-machine mounting where right-angle connector clearance is critical
Voltage class
230 V AC
Rated speed
7000 rpm
Feedback
Multi-turn absolute encoder
Brake
24 V DC
Frame size (Ø)
63 mm
Technical Specifications
I/O & Electrical
Continuous stall torque
0.90 N·m
Peak stall torque
2.80 N·m
Continuous stall current (0-peak)
2.8 A
Peak stall current (0-peak)
10.1 A
Communication & Power
Connectors
SpeedTEC DIN, right-angle, 180° rotatable
Brake voltage
24 V DC
Physical & Environmental
Frame diameter
63 mm (2.48 in.)
Magnet stack length
76.2 mm (3.0 in.)
Rotor inertia
0.000023 kg·m² (0.00020 lb-in·s²)
Approximate weight
1.6 kg (3.4 lb)
Operating temperature range
0 °C to 40 °C
Storage temperature range
-30 °C to 70 °C
Shock resistance
20 G peak, 6 ms
Housing material
Aluminum
