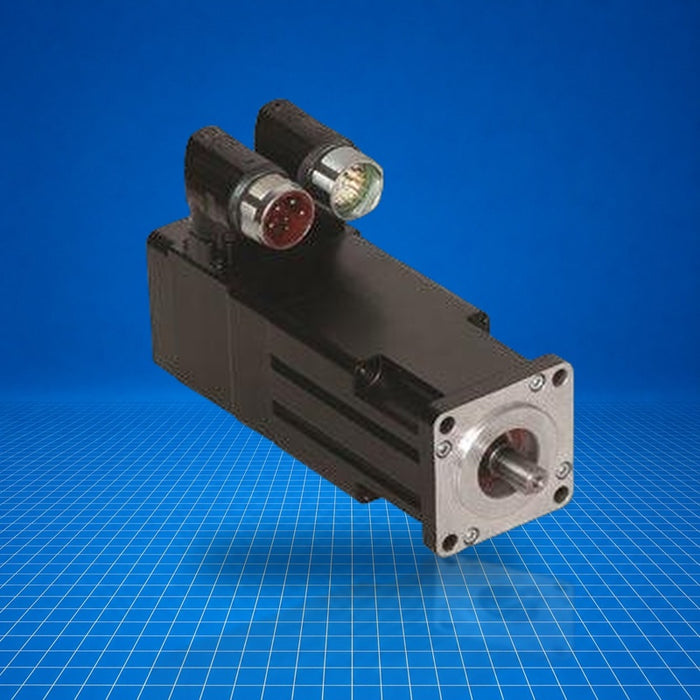

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
MPL-A220T-VJ74AA Allen-Bradley
Original price
$0.00
-
Original price
$2,861.14
Original price
$2,861.14
$0.00
-
$2,861.14
Current price
$2,861.14
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MPL-A220T-VJ74AA is an Allen-Bradley MP-Series low-inertia 230 V AC brushless rotary servo motor, frame size 2 (75 mm) with a 50.8 mm magnetic stack, rated speed 6000 rpm, multi-turn high-resolution absolute encoder feedback, keyed shaft, SpeedTEC right-angle connector, and 24 V DC brake. It integrates into Kinetix drive systems to provide position and motion control in machine automation and packaging systems. MPL-A220T-VJ74AA supports precise servo-driven positioning where compact inertia and feedback accuracy are required.
Best Suited For
- Compact motion control (low-inertia applications)
- Kinetix 6000/5700 servo drive systems
- On-machine installations with right-angle connectors
- Applications requiring brake on motor shaft
Rated speed
6000 rpm
Voltage class
230 V AC
Continuous stall torque
1.61 N•m (14.2 lb-in)
Peak stall torque
4.74 N•m (42 lb-in)
Brake
24 V DC on motor
Technical Specifications
I/O & Electrical
Rated speed
6000 rpm
Continuous stall torque
1.61 N•m (14.2 lb-in)
Peak stall torque
4.74 N•m (42 lb-in)
Communication & Power
Voltage class
230 V AC
System continuous stall current
4.54 A (0-peak)
System peak stall current
15.5 A (0-peak)
Physical & Environmental
Frame size
75 mm (2.95 in)
Magnetic stack length
50.8 mm (2.0 in)
Rotor inertia
0.000039 kg·m² (0.00035 lb-in·s²)
Motor weight, approx
2.0 kg (4.4 lb)
