MPL-A310P-MK72AA Allen-Bradley

Name: MPL-A310P-MK72AA Allen-Bradley
Brand: Allen Bradley
SKU: MPL-A310P-MK72AA
Price: 1797.5 USD
Availability: InStock

$1,797.50 - $3,024.00

$1,797.50

$1,797.50 - $3,024.00

$1,797.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

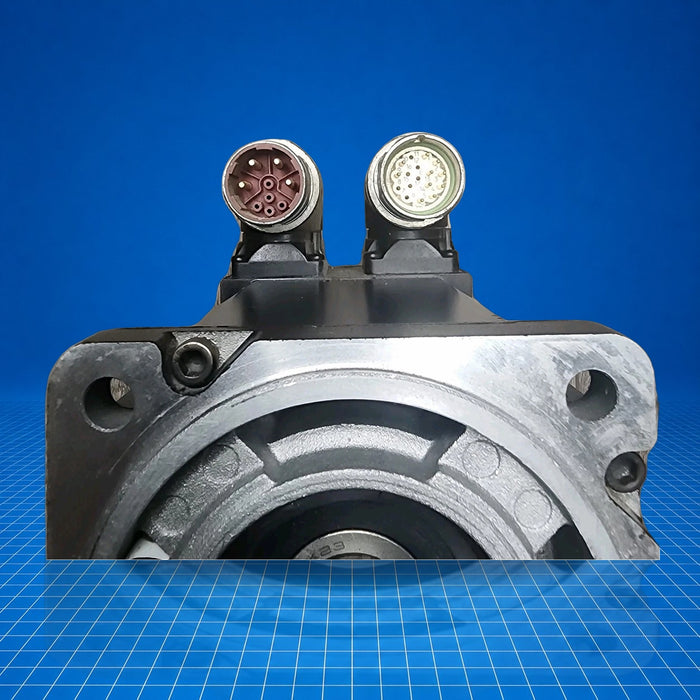

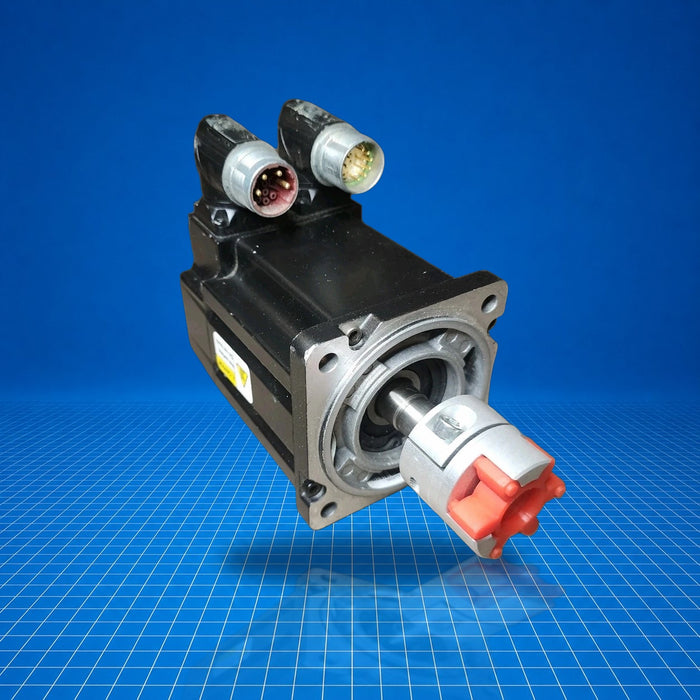

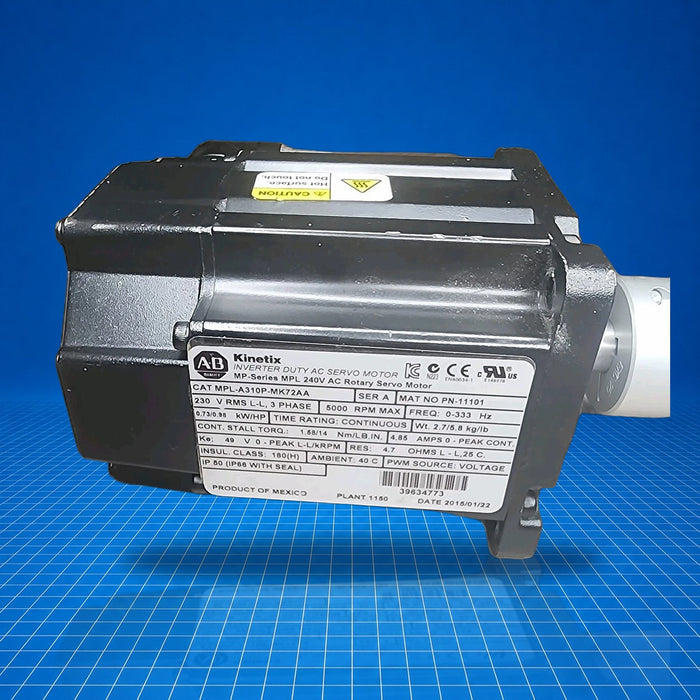

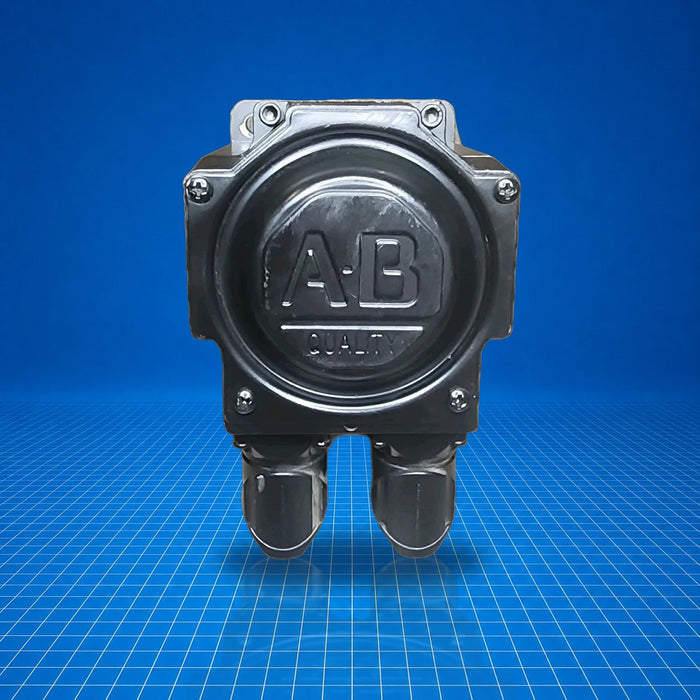

The MPL-A310P-MK72AA is an Allen-Bradley MP-Series low-inertia brushless rotary servo motor, 230 V AC, frame size 3 (100 mm), stack length 10 (25.4 mm), rated for 5000 rpm with a multi-turn high-resolution absolute encoder (Hiperface). It features a keyless shaft extension, SpeedTEC DIN 7-pin right-angle connector (180° rotatable), and no brake. Designed for motion control roles in machine tools, indexing tables, packaging, and other automated positioning systems, the servo motor integrates with Kinetix drives for precise closed-loop feedback control. Part number MPL-A310P-MK72AA.

Best Suited For

Automated positioning in packaging or indexing systems
Integration with Kinetix servo drives (e.g. Kinetix 300/350)
High-precision motion in machine tool axes
Applications requiring compact low-inertia servo response

Voltage rating

230 V AC

Max speed

5000 rpm

Frame size

100 mm

Feedback type

Multi-turn absolute encoder

Technical Specifications

I/O & Electrical

Voltage supply

230 V AC

Continuous stall torque

1.58 N·m

Peak stall torque

3.61 N·m

Continuous stall torque (lb-in)

14 lb-in

Peak stall torque (lb-in)

32 lb-in

Rated output

0.73 kW

Rated speed

4750 rpm

Communication & Power

Connector

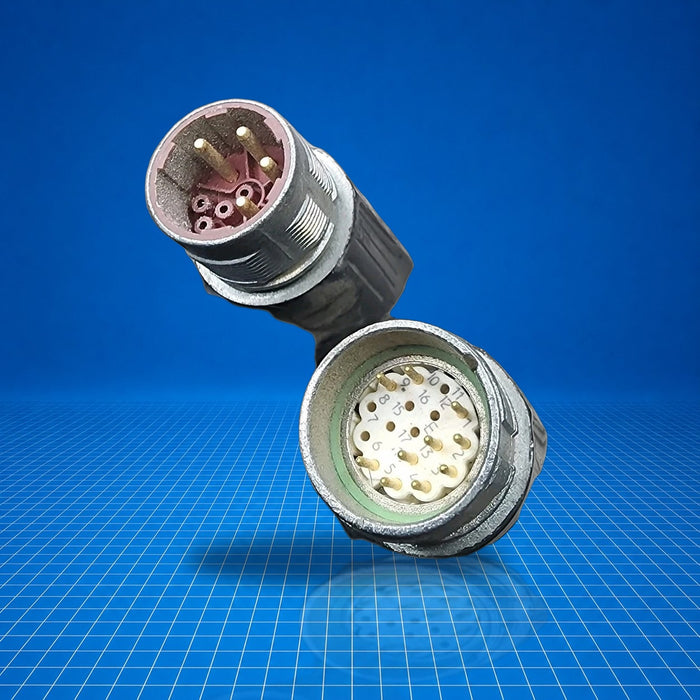

SpeedTEC DIN 7-pin, right-angle, 180° rotatable

Feedback interface

Hiperface multi-turn absolute encoder

Physical & Environmental

Frame size

100 mm

Stack length

25.4 mm (1.0 in)

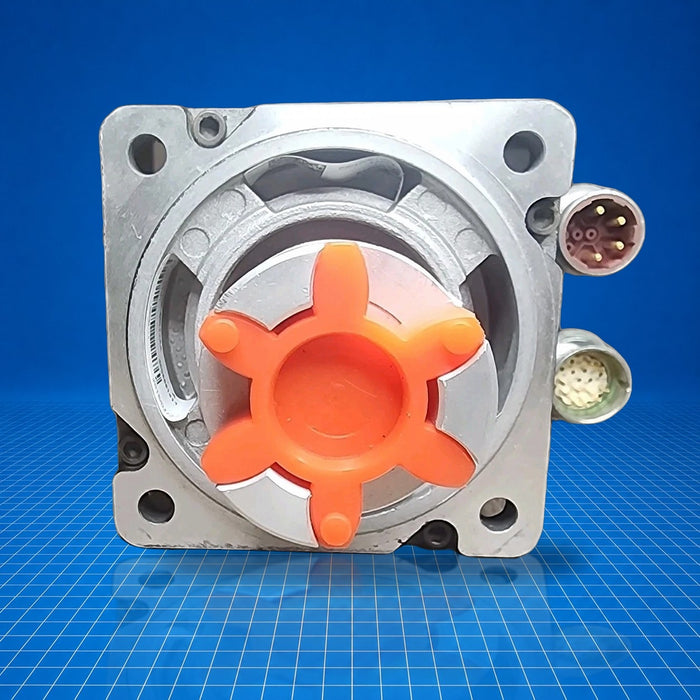

Shaft extension

Keyless

Certifications

Morocco DOC

Certified for Morocco as of May 20 2026 (check product label for other certifications).
