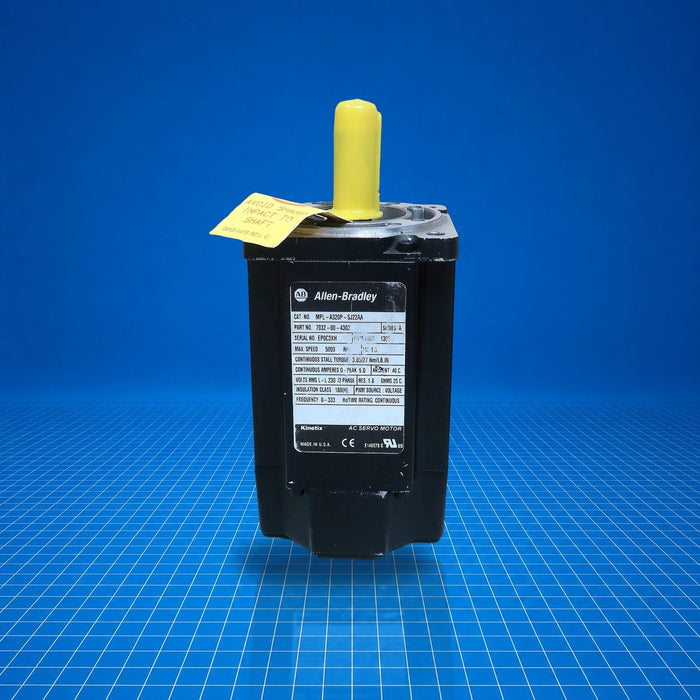

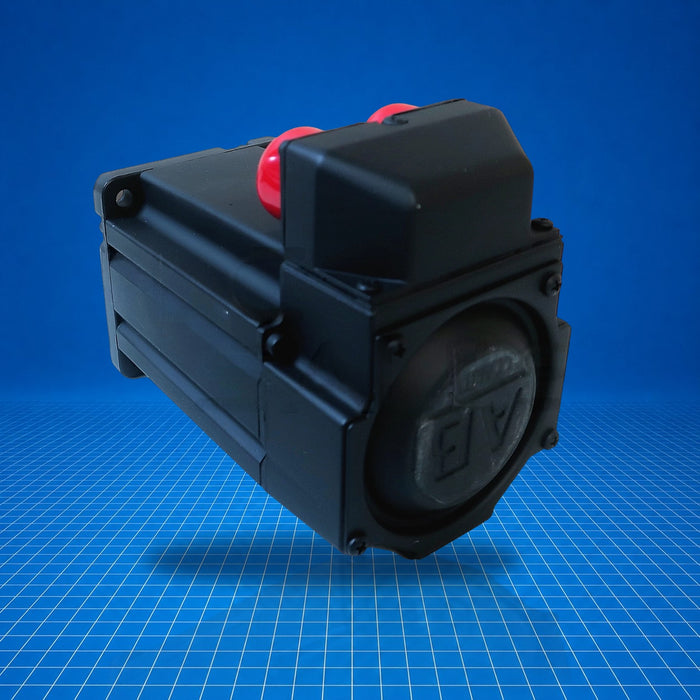

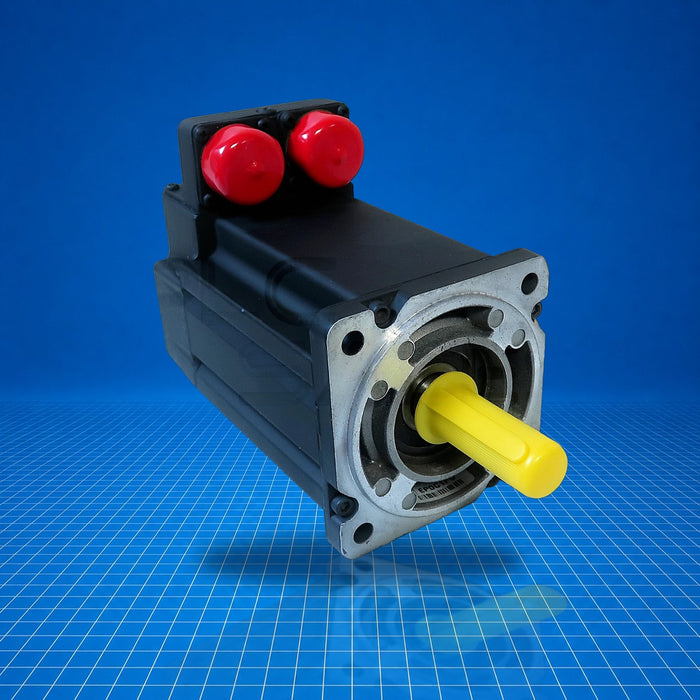

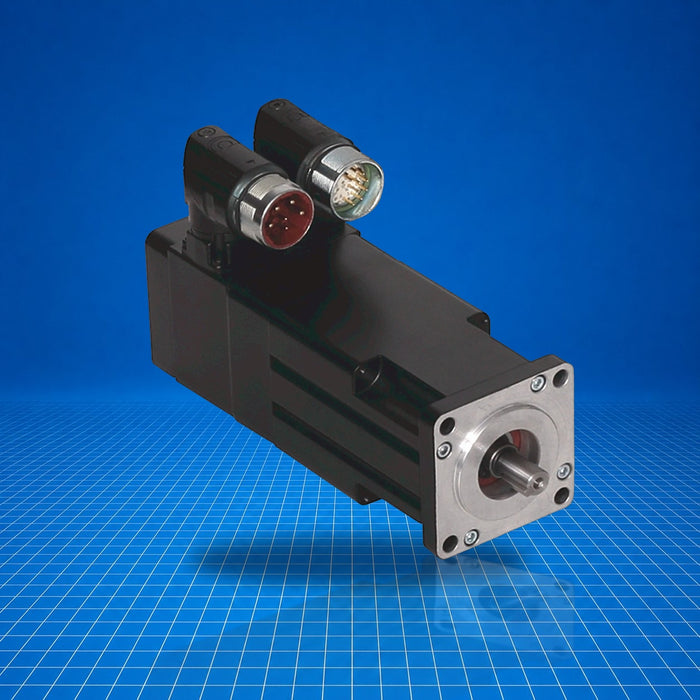

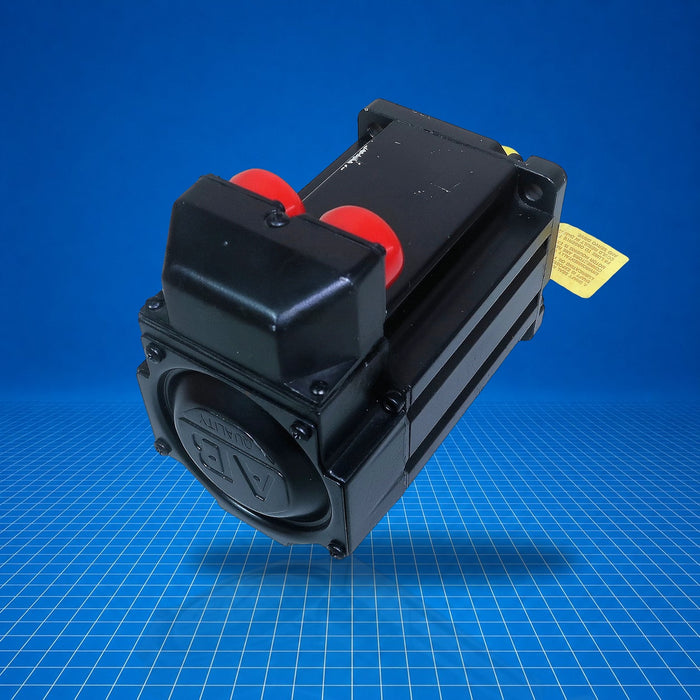

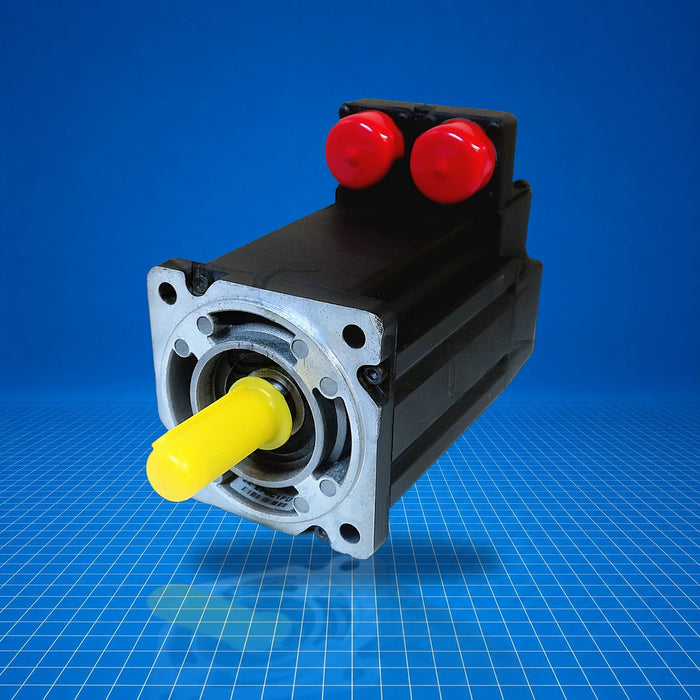

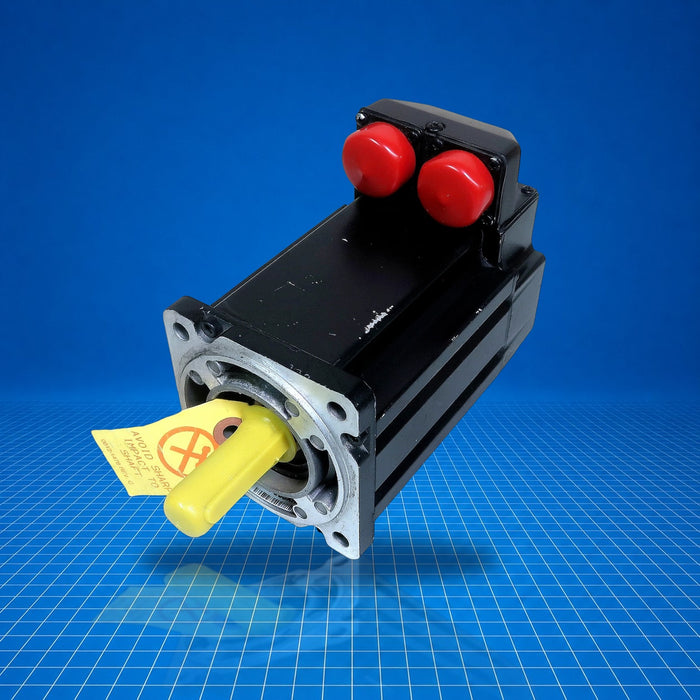

MPL-A320P-SJ22AA Allen-Bradley
Original price
$2,854.81
-
Original price
$6,372.00
Original price
$2,854.81
$2,854.81
-
$6,372.00
Current price
$2,854.81
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MPL-A320P-SJ22AA is part of the Allen-Bradley MP-Series low-inertia 240 V AC rotary servo motor family. It provides approximately 1.3 kW rated output at up to 5,000 rpm, with a compact footprint suited for precise motion control. In control systems, it acts as the actuator for positioning tasks, paired with compatible drives. Typical industrial applications include packaging, machine tool, and assembly systems requiring accurate and repeatable servo performance. MPL-A320P-SJ22AA integrates into existing Kinetix motion platforms.
Best Suited For
- Medium-duty motion control systems up to 5 kW
- Compact machine tools or packaging equipment
- Positioning in assembly or indexing systems
- Retrofit or replacement of MPL-series actuators
Rated output
1.3 kW
Rated speed
5,000 rpm
Continuous stall torque
3.05 Nm (27 lb-in)
Peak stall torque
7.91 Nm (70 lb-in)
Rotor inertia
0.000078 kg·m² (0.00069 lb-in·s²)
Technical Specifications
I/O & Electrical
Rated output
1.3 kW
Rated speed
5,000 rpm
Continuous stall torque
3.05 Nm (27 lb-in)
Peak stall torque
7.91 Nm (70 lb-in)
Continuous stall current
9.0 A (0-peak)
Peak stall current
29.5 A (0-peak)
Physical & Environmental
Rotor inertia
0.000078 kg·m² (0.00069 lb-in·s²)
Approximate weight
3.7 kg (8.0 lb)
