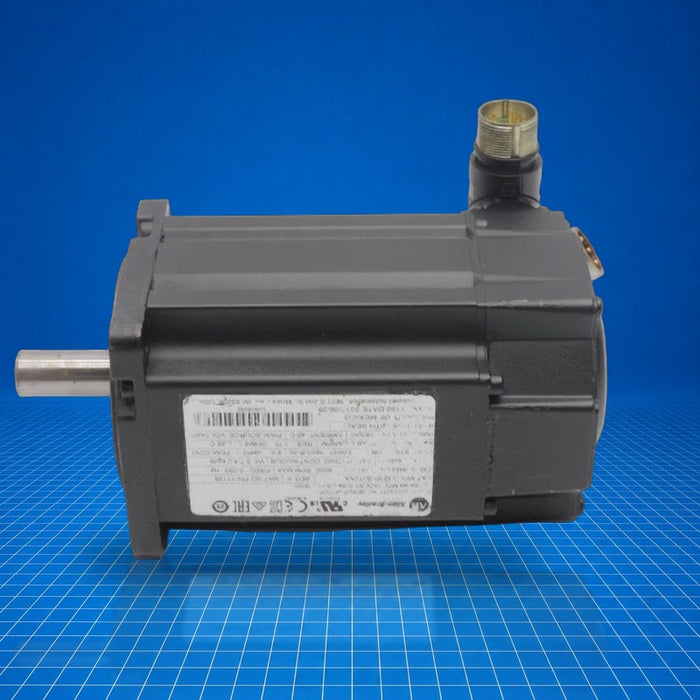

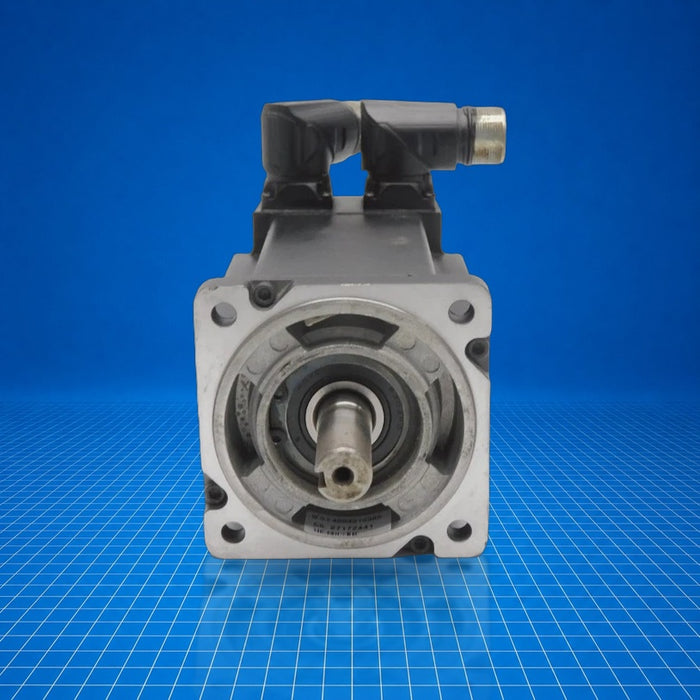

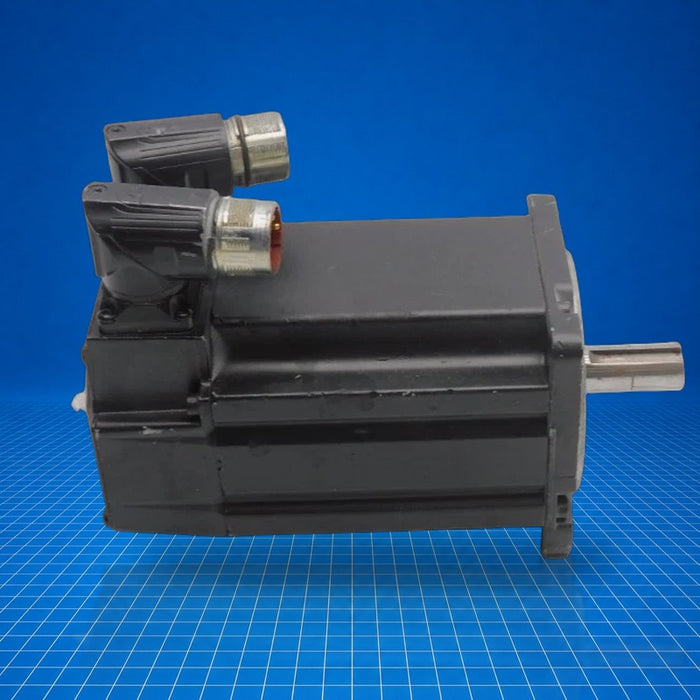

MPL-A320P-SJ72AA Allen-Bradley
Original price
$2,463.75
-
Original price
$3,869.25
Original price
$2,463.75
$2,463.75
-
$3,869.25
Current price
$2,463.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MPL-A320P-SJ72AA is an Allen-Bradley MP-Series low-inertia brushless rotary servo motor designed for integration with Kinetix motion control systems. Operating at 230 V AC, frame size 100 mm, with a 50.8 mm magnetic stack and 5000 rpm nominal speed, it provides precise position control via its single-turn high-resolution encoder. Used in factory automation, packaging, and material handling, this motor offers accurate motion in compact servo systems. MPL-A320P-SJ72AA conforms with MP-Series platforms and serves as a direct replacement in systems requiring low-inertia servo performance.
Best Suited For
- Kinetix MP-Series motion control systems
- High-precision positioning applications
- Compact machine automation (e.g. packaging stations)
- Quick-response servo loops requiring low inertia
Voltage class
230 V AC
Rated speed
5000 rpm
Magnetic stack length
50.8 mm (2.0 in.)
Feedback
Single-turn high-resolution encoder
Technical Specifications
I/O & Electrical
Rated Output
1.3 kW
Continuous stall torque
3.05 N·m (27 lb-in.)
Peak stall torque
7.91 N·m (70 lb-in.)
Continuous stall current
9.0 A
Peak stall current
29.5 A
Communication & Power
Connector
SpeedTEC DIN, right-angle, 180° rotatable
Physical & Environmental
Frame size
100 mm (3.94 in.)
Rotor inertia
0.000078 kg·m² (0.00069 lb-in-s²)
Motor weight (approx)
3.7 kg (8.0 lb)
