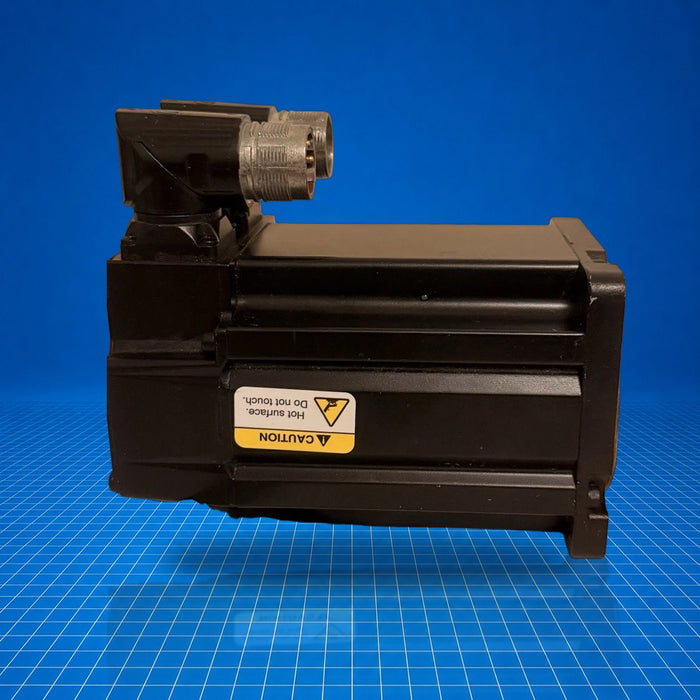

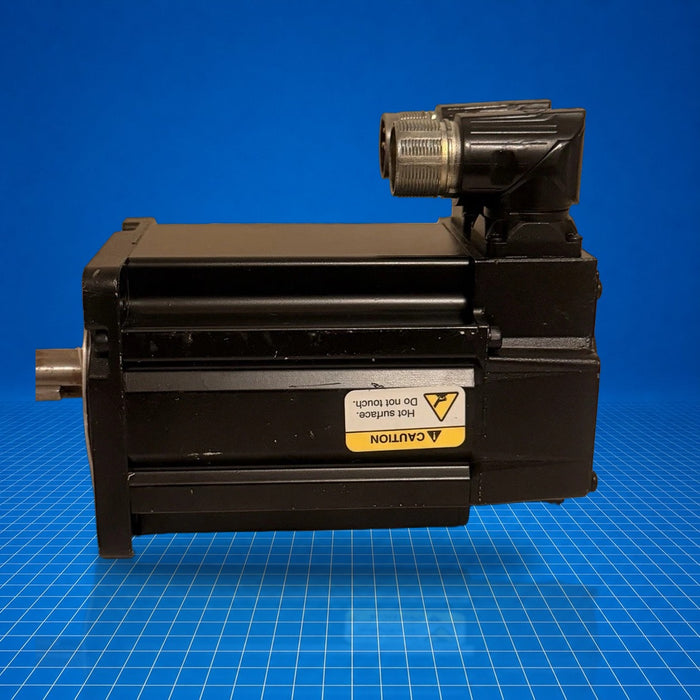

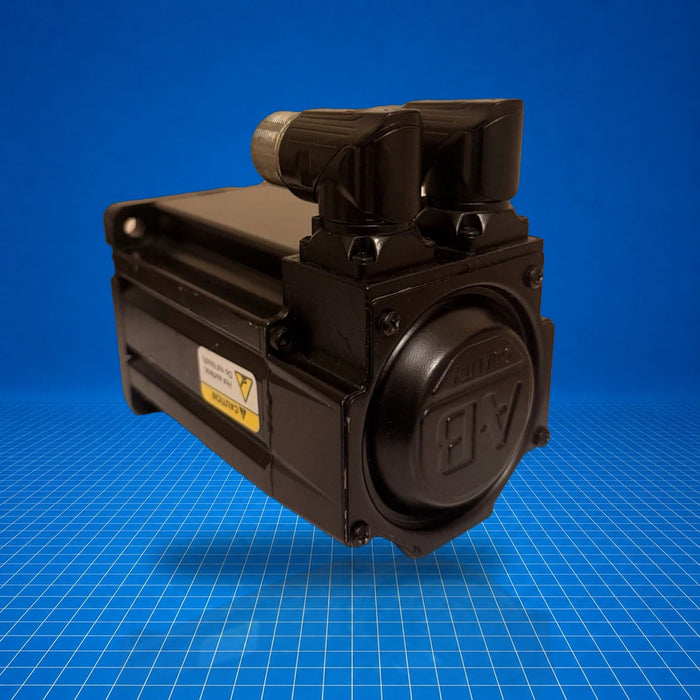

MPL-A330P-MJ72AA Allen-Bradley
Original price
$1,583.33
-
Original price
$2,809.51
Original price
$1,583.33
$1,583.33
-
$2,809.51
Current price
$1,583.33
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
The MPL-A330P-MJ72AA is an Allen-Bradley MP-Series low-inertia, brushless servo motor designed for motion control systems. It operates at 230 V AC, delivers 1.8 kW at 5000 rpm, and includes a multi-turn high-resolution absolute encoder for position feedback. The servo integrates with Kinetix drive platforms and is suitable for industrial applications including packaging, material handling, and electronics assembly, where precise torque and compact form factor are required. The model delivers 11.1 Nm peak stall torque and uses SpeedTEC DIN quick-connect interface.
Technical Specifications
Series / Family
MP-Series Low-Inertia Brushless Servo Motor (Bulletin MPL)
Voltage (Armature)
230 V
Frame Size
3 = 100 mm (3.94 in.)
Stack Length
30 = 76.2 mm (3.0 in.)
Rated Speed
5000 rpm
Feedback
Multi-turn High-resolution Encoder (absolute feedback)
Connectors
SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect)
Brake Option
No Brake
Rated Output Power
1.8 kW
Continuous Stall Torque
4.18 Nm (37 lb-in)
Peak Stall Torque
11.1 Nm (98 lb-in)
Continuous Stall Current
12.0 A (0-peak)
Peak Stall Current
38.0 A (0-peak)
Rotor Inertia
0.00012 kg-m² (0.0010 lb-in-s²)
Operating Temperature
0-40 °C (32-104 °F)
Mounting
Standard IEC 72-1 mounting dimensions; Free mounting holes (Type FF)
Optional Enclosure / Environmental
Optional Shaft Seal for IP66 (if shaft seal kit installed)
Certifications
UL recognized component, CE marked
