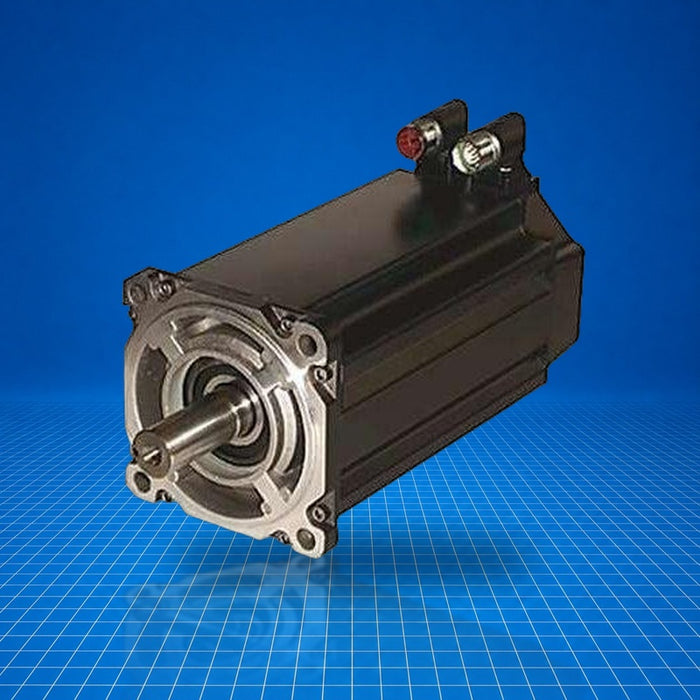

Product image is representative; revision or series may vary.
Contact us to request a specific version.

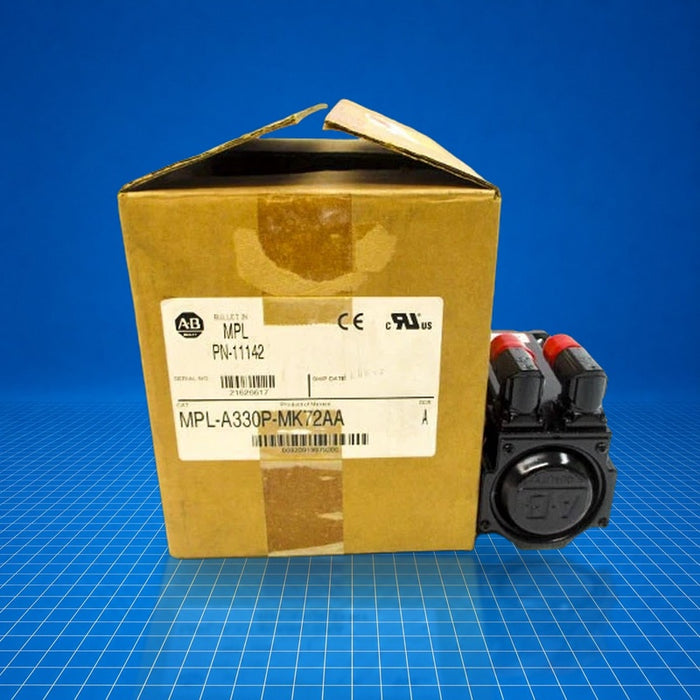

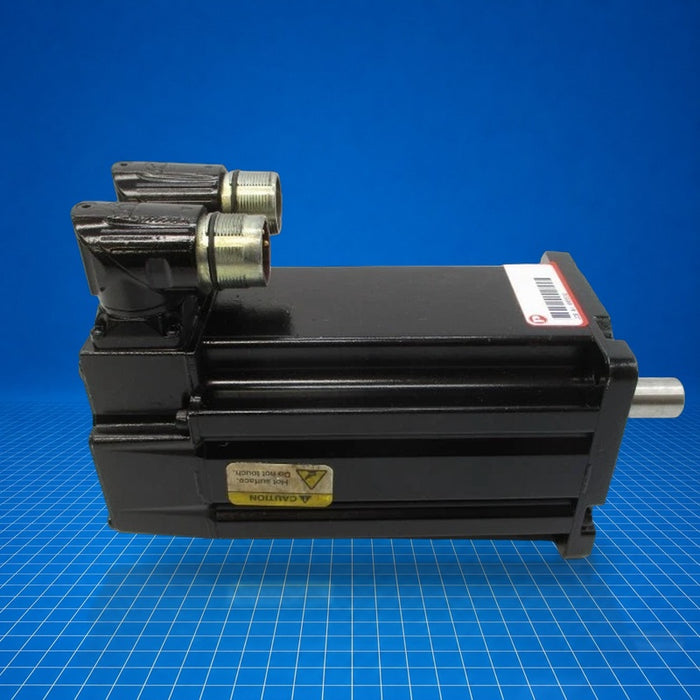

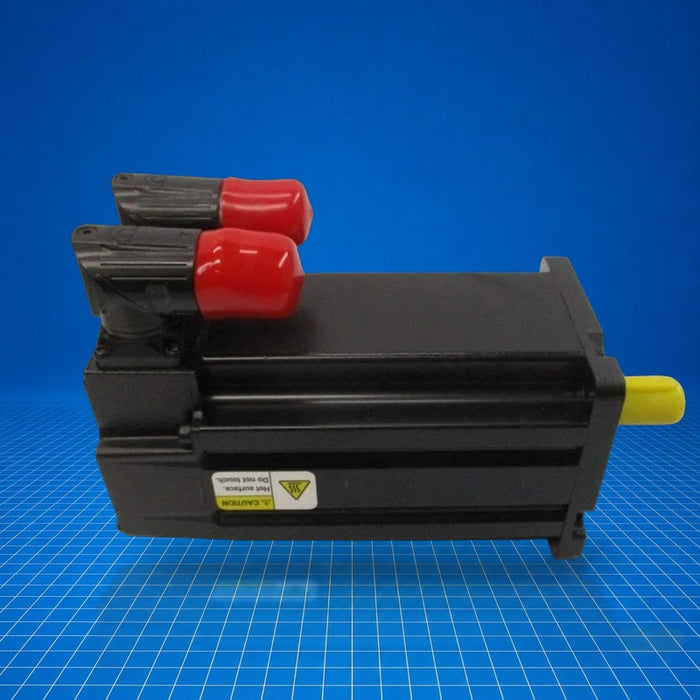

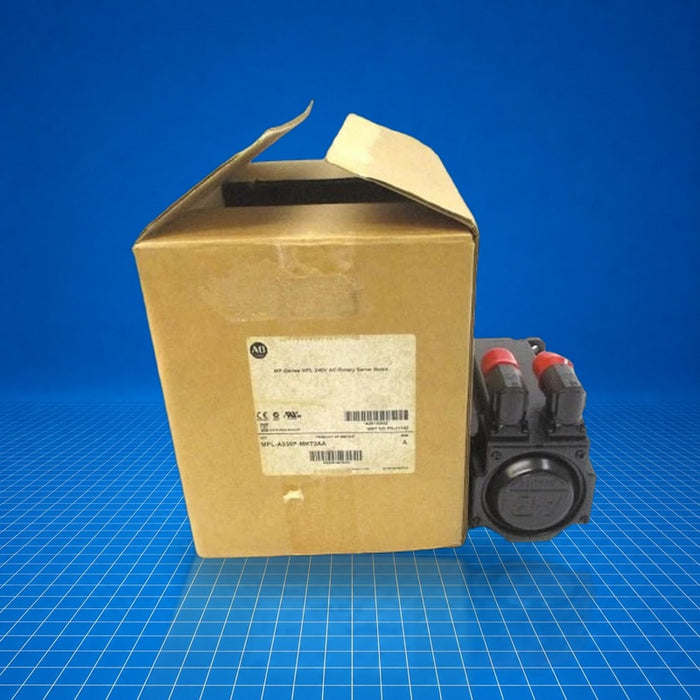

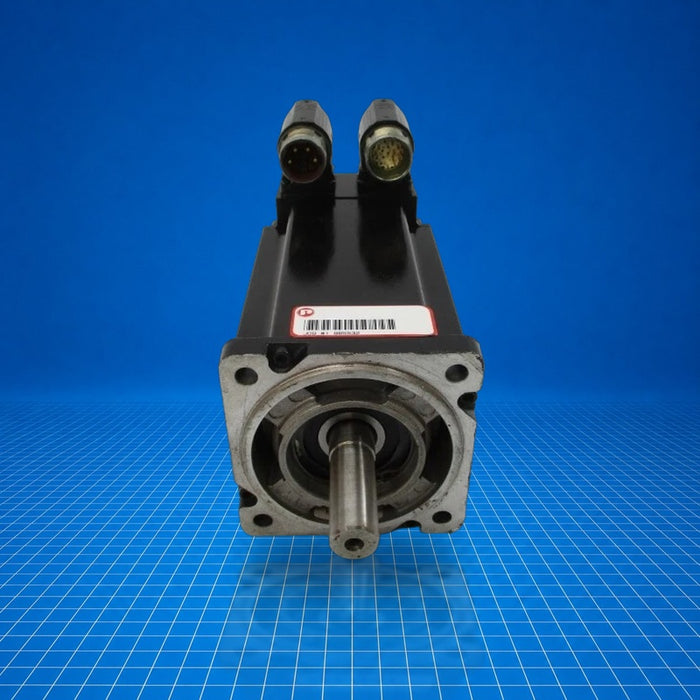

MPL-A330P-MK72AA Allen-Bradley

Name: MPL-A330P-MK72AA Allen-Bradley
Brand: Allen Bradley
SKU: MPL-A330P-MK72AA
Price: 3079.98 USD
Availability: InStock

$3,079.98 - $4,547.50

$3,079.98

$3,079.98 - $4,547.50

$3,079.98

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The MPL-A330P-MK72AA is an Allen-Bradley MP-Series low-inertia brushless rotary servo motor, Bulletin MPL. It operates at 230 V nominal armature voltage, frame size 3 (100 mm), stack length 30 (76.2 mm), with a rated speed of 5000 rpm and multi-turn high-resolution absolute encoder feedback. It features a keyless shaft extension, SpeedTEC DIN right-angle 180° rotatable connector, no brake, IEC metric mounting, and free mounting (Type FF). Typical applications include precise motion control in packaging machinery, assembly systems, and manufacturing automation where compact, accurate servo performance is required. Part number MPL-A330P-MK72AA integrates into the Kinetix motion control platform.

Best Suited For

Integration with Kinetix servo systems
Short-stack, compact machine designs
High-speed indexing or positioning
Manufacturing automation where absolute feedback is required

Rated speed

5000 rpm

Voltage

230 V AC

Feedback

Multi-turn high-resolution encoder

Connector

SpeedTEC DIN, right-angle, 180° rotatable

Frame size

100 mm

Technical Specifications

I/O & Electrical

Armature voltage

230 V AC

Rated speed

5000 rpm

Continuous stall torque

4.18 Nm (37 lb-in.)

Peak stall torque

11.1 Nm (98 lb-in.)

System continuous stall current

12.0 A (0-peak)

System peak stall current

38.0 A (0-peak)

Rated output

1.8 kW

Physical & Environmental

Frame size

100 mm

Magnet stack length

76.2 mm

Shaft type

Keyless shaft extension

Connector type

SpeedTEC DIN, right-angle, 180° rotatable
