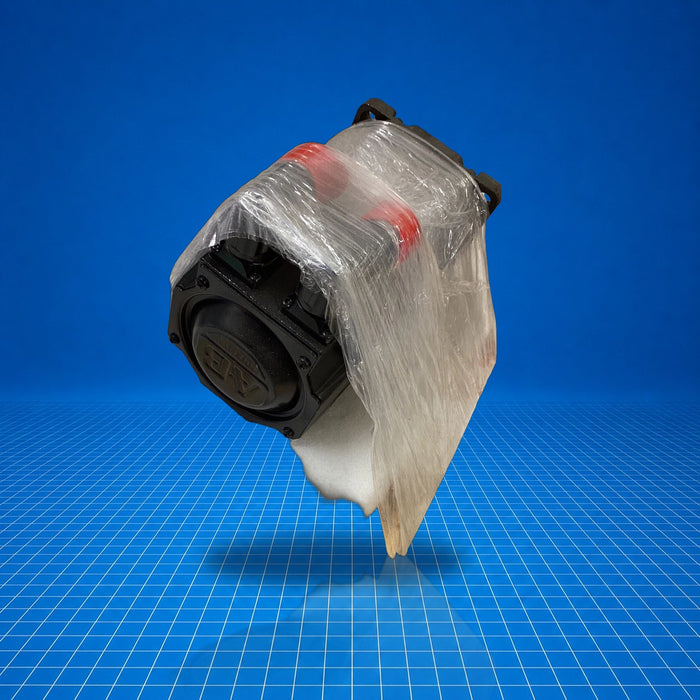

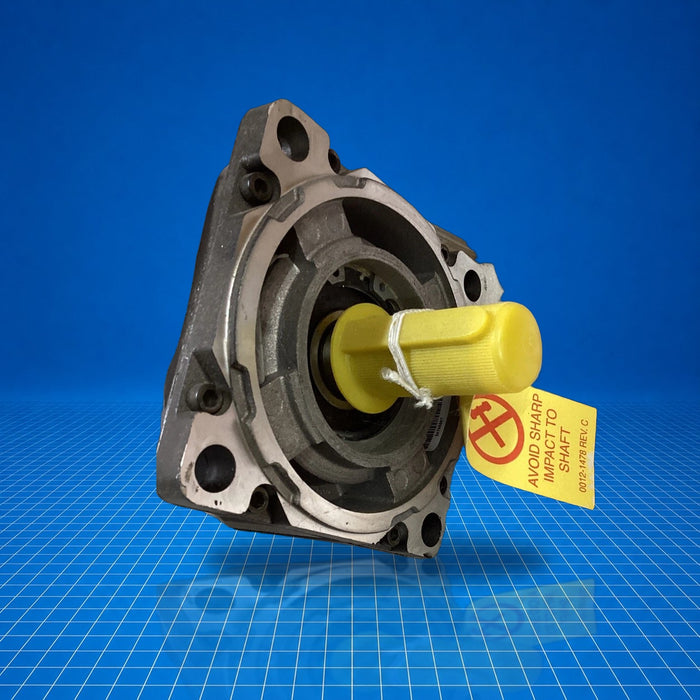

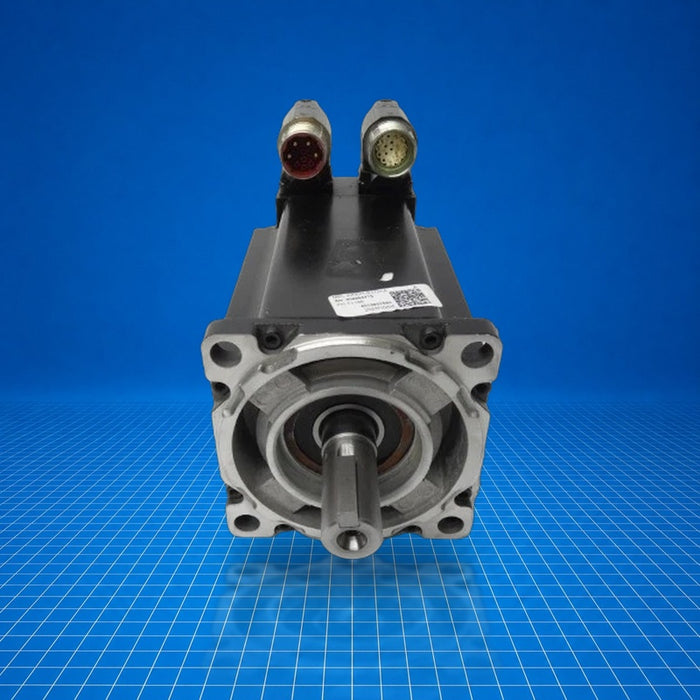

MPL-A430H-SJ72AA Allen-Bradley
Original price
$0.00
-
Original price
$3,599.98
Original price
$3,599.98
$0.00
-
$3,599.98
Current price
$3,599.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MPL-A430H-SJ72AA is a 230 V-class, low-inertia, brushless AC synchronous servo motor from Allen-Bradley's MP-Series. Built on a 115 mm frame (frame size 4) with a 76.2 mm (3.0 in) magnet stack and 3500 rpm rated speed. It includes a single-turn high-resolution encoder and a keyed shaft extension. Designed for precision motion in machine control systems, it is typically used in applications such as packaging, material handling, and general industrial automation as the drive element of a motion control axis. MPL-A430H-SJ72AA integrates with Kinetix servo systems for accurate velocity and position control.
Best Suited For
- Integration with Kinetix 5500 or 5700 servo drives
- Compact machine tool axes requiring low-inertia response
- Material handling systems demanding precise motion control
- Packaging equipment with fast dynamic positioning
Voltage class
230 V AC
Frame size
115 mm
Rated speed
3500 rpm
Encoder
Single-turn high-resolution
Connector interface
SpeedTEC DIN, right-angle, 180° rotatable
Technical Specifications
I/O & Electrical
Voltage class
230 V AC
Rated speed
3500 rpm
System continuous stall current
12.2 A (0-peak)
System continuous stall torque
6.21 N·m (55 lb-in)
System peak stall current
45 A (0-peak)
System peak stall torque
19.8 N·m (175 lb-in)
Motor rated output
1.8 kW (2.4 hp)
Communication & Power
Feedback
Single-turn high-resolution encoder
Connector
SpeedTEC DIN, right-angle, 180° rotatable
Physical & Environmental
Frame size
115 mm
Magnet stack length
76.2 mm (3.0 in)
Rotor inertia
0.00038 kg·m² (0.0033 lb-in-s²)
