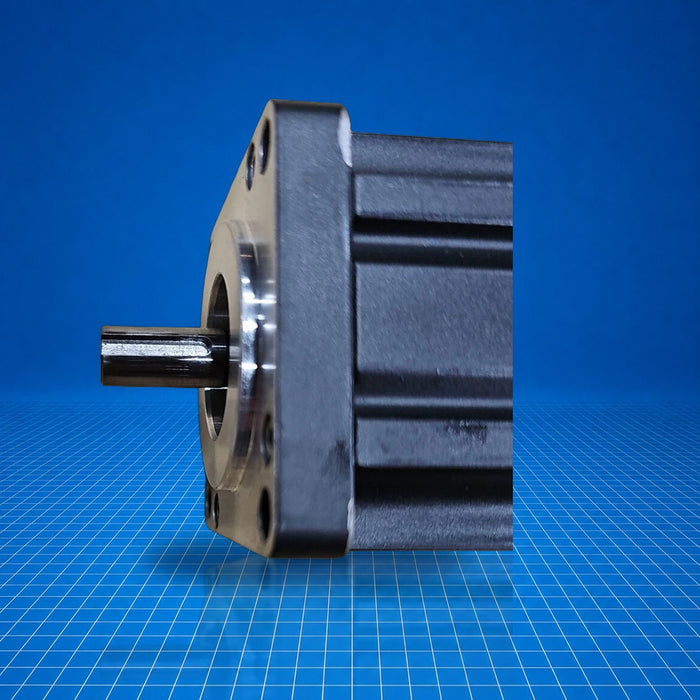

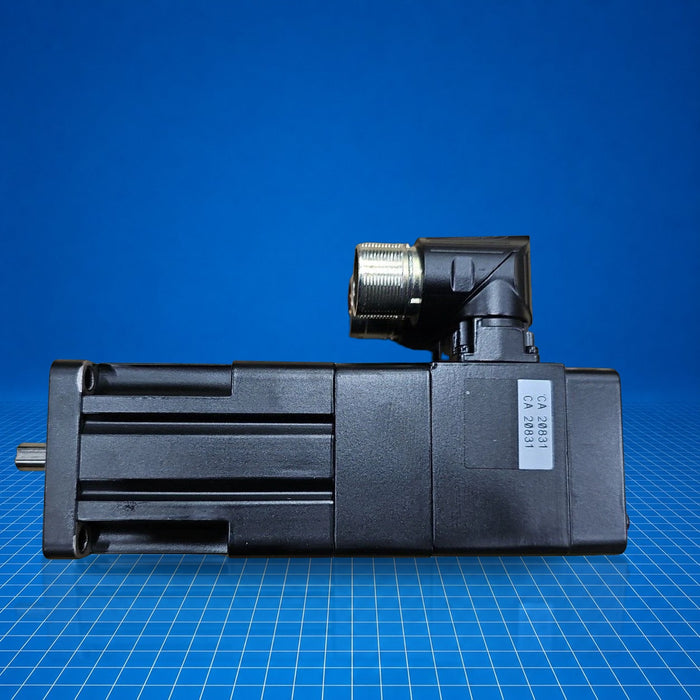

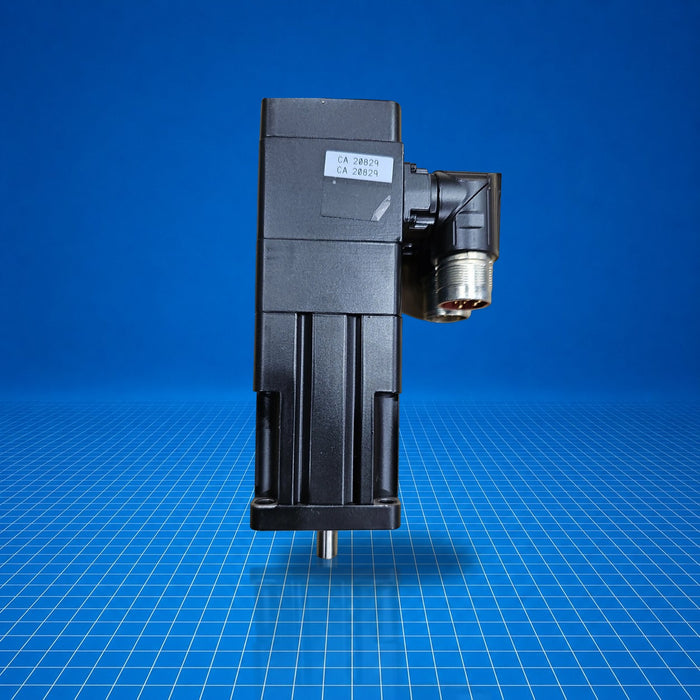

MPL-B1520U-VJ74AA Allen-Bradley

Name: MPL-B1520U-VJ74AA Allen-Bradley
Brand: Allen Bradley
SKU: MPL-B1520U-VJ74AA
Price: 1322.5 USD
Availability: InStock

$0.00 - $1,322.50

$1,322.50

$0.00 - $1,322.50

$1,322.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The MPL-B1520U-VJ74AA is a Bulletin MPL low-inertia brushless rotary servo motor from Allen-Bradley, operating at 460 V AC (480 V armature voltage) with a 63 mm frame (Frame Size 15) and 50.8 mm stack length. It delivers 7000 RPM, includes a multi-turn high-resolution absolute encoder for position feedback, and features a keyed shaft extension with a 7-pin SpeedTEC DIN connector (right-angle, 180° rotatable) plus an integral 24 V DC brake. This motor suits precision motion control applications such as machine tools, robotics joints, and indexing systems, where compact size and accurate positioning are required. Part number: MPL-B1520U-VJ74AA.

Best Suited For

Compact rotary positioning axes
High-precision indexing systems
Small-frame robotics joints
Integrated motion assemblies

Voltage Class

460 V AC

Rated Speed

7000 RPM

Encoder Type

Multi-turn high-resolution absolute

Brake

24 V DC

Technical Specifications

I/O & Electrical

Armature voltage

460 V

Rated speed

7000 RPM

Feedback

Multi-turn high-resolution encoder

Brake voltage

24 V DC

Communication & Power

Connector type

SpeedTEC DIN, right-angle, 180° rotatable

Physical & Environmental

Frame size

63 mm (Frame Size 15)

Magnet stack length

50.8 mm

Shaft extension

Keyed
