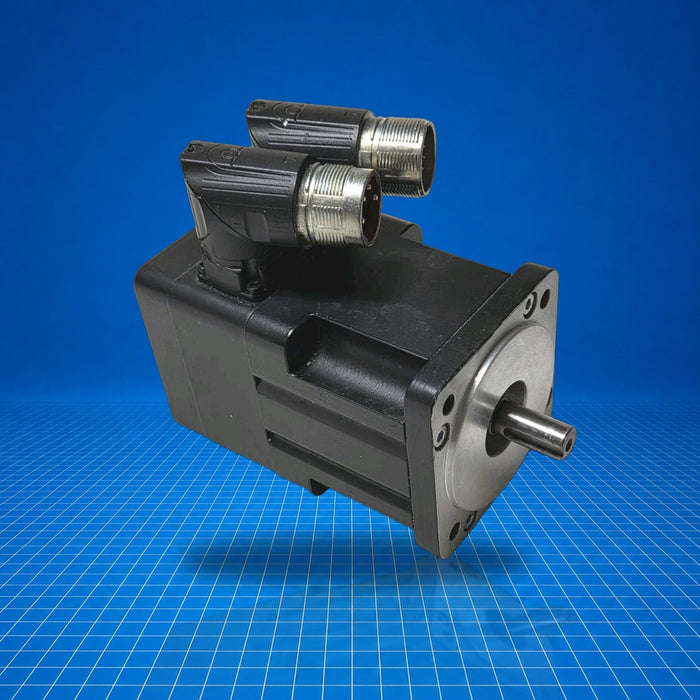

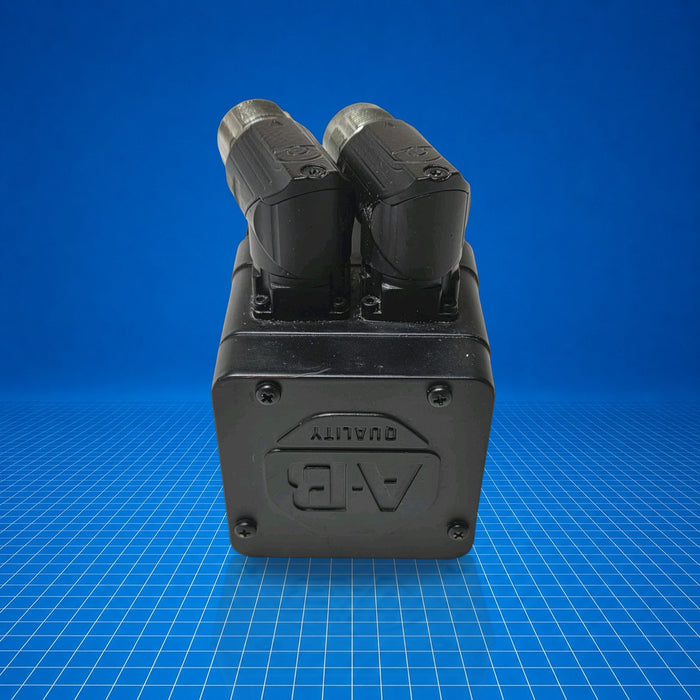

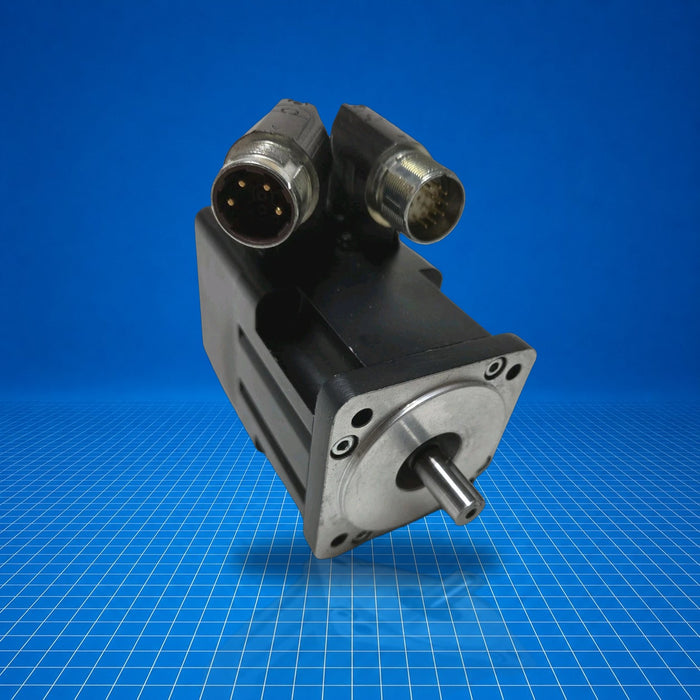

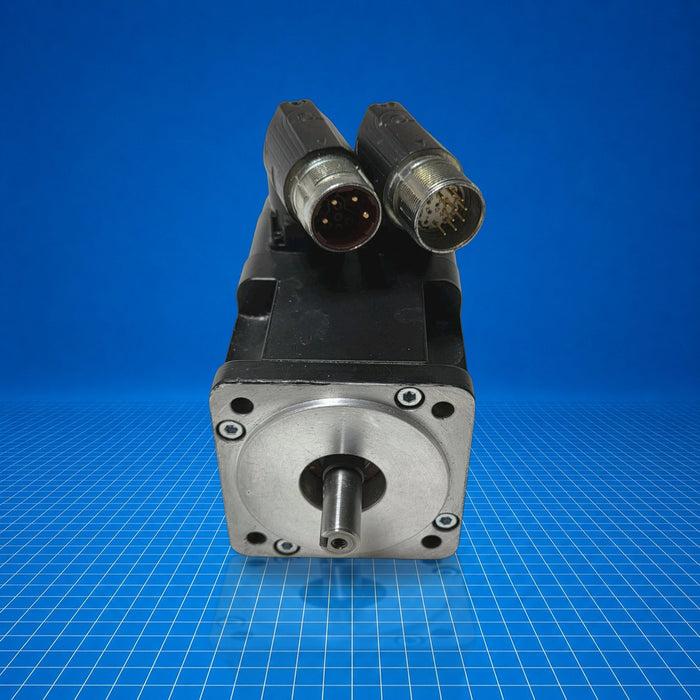

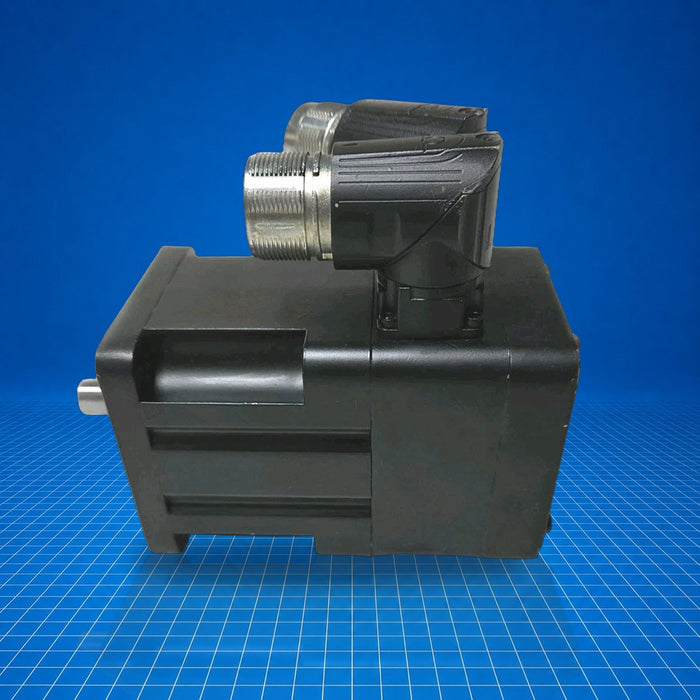

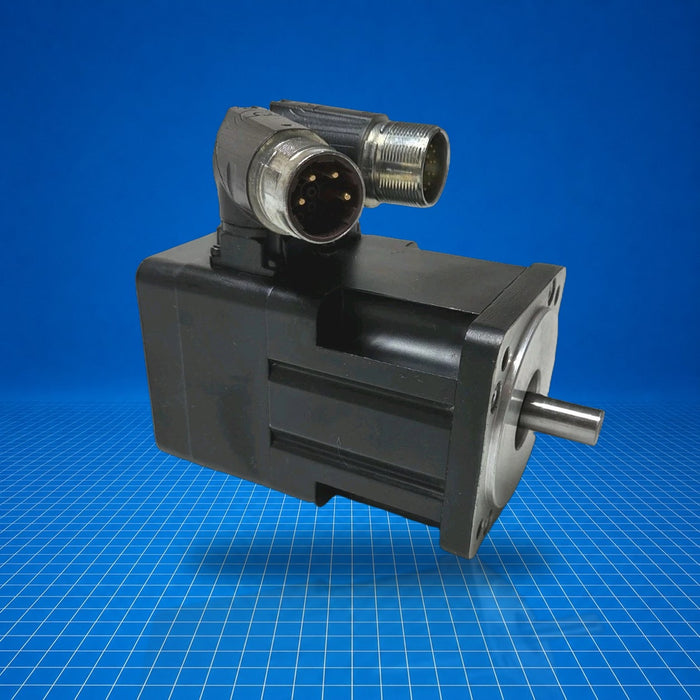

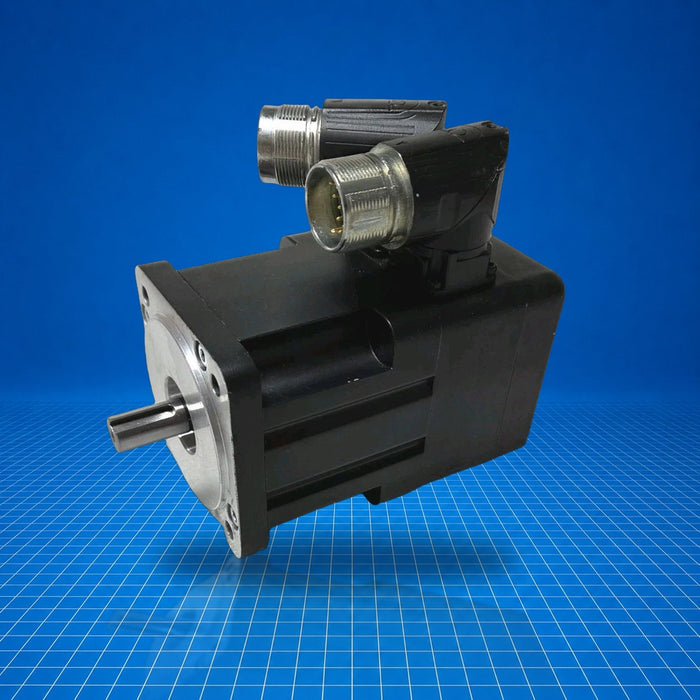

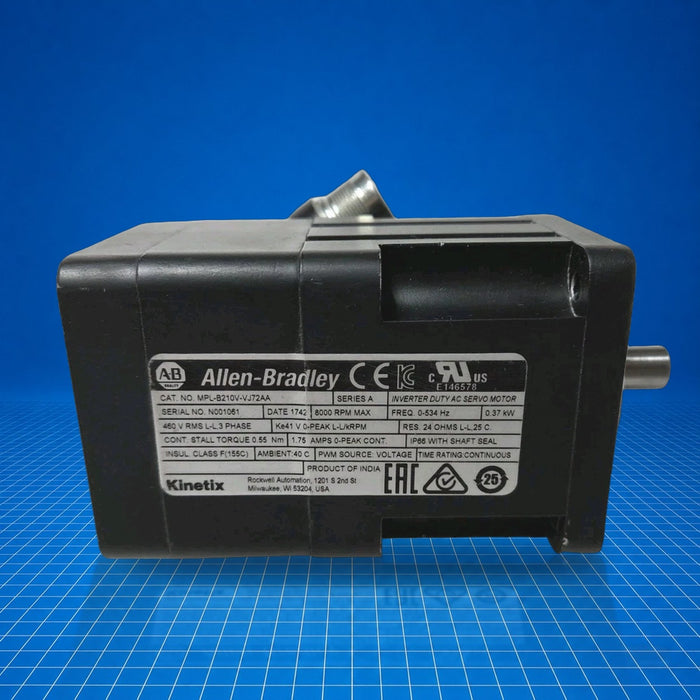

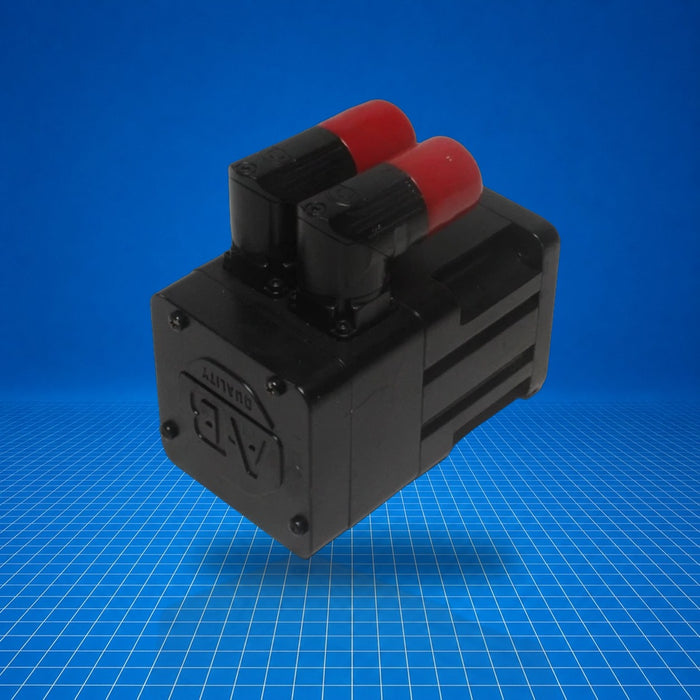

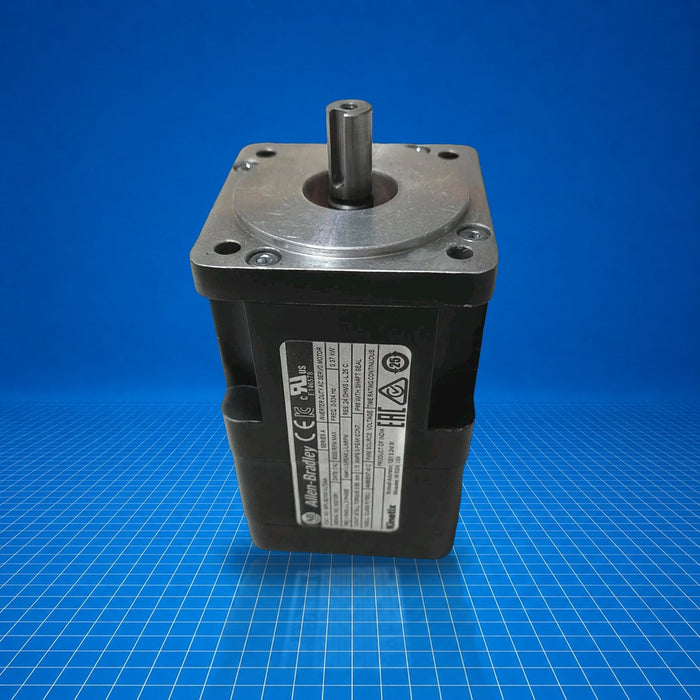

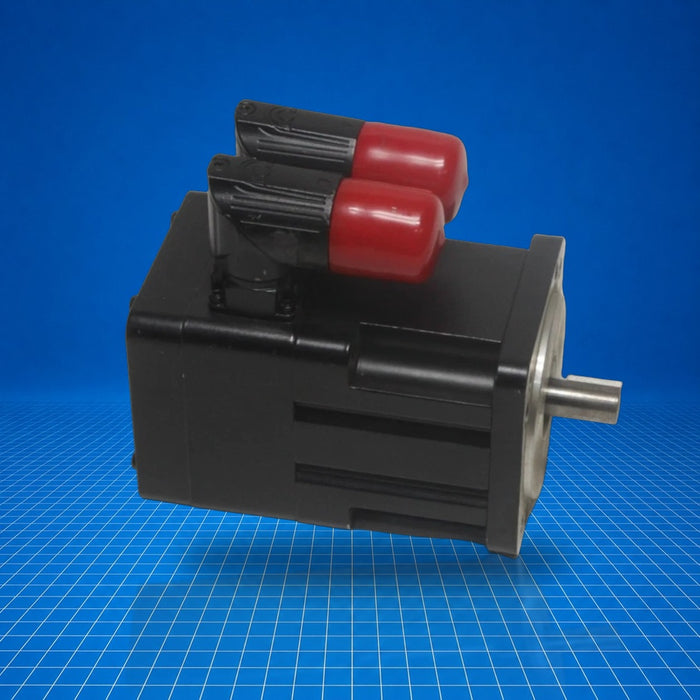

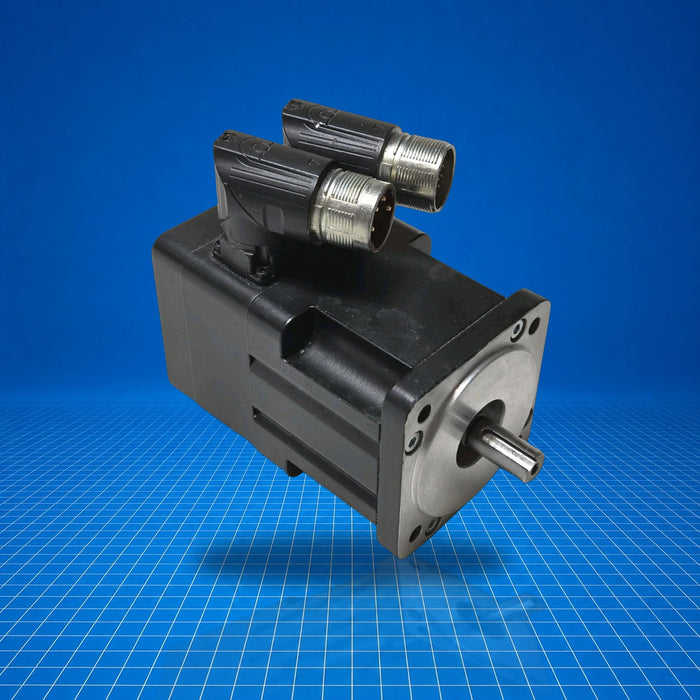

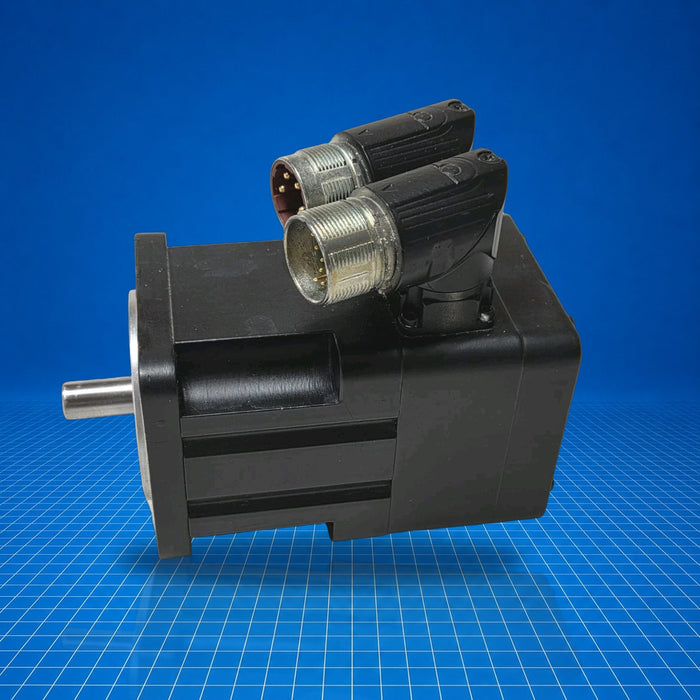

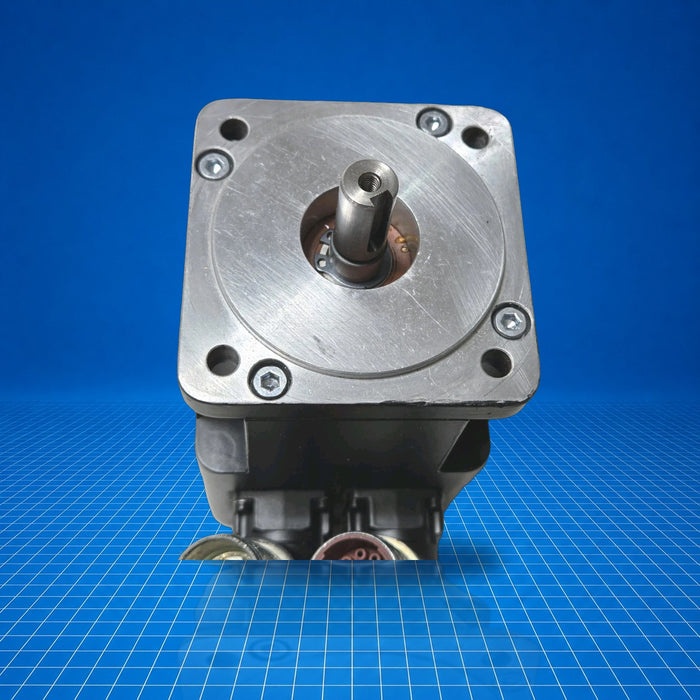

MPL-B210V-VJ72AA Allen-Bradley
Original price
$1,562.50
-
Original price
$3,937.50
Original price
$1,562.50
$1,562.50
-
$3,937.50
Current price
$1,562.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

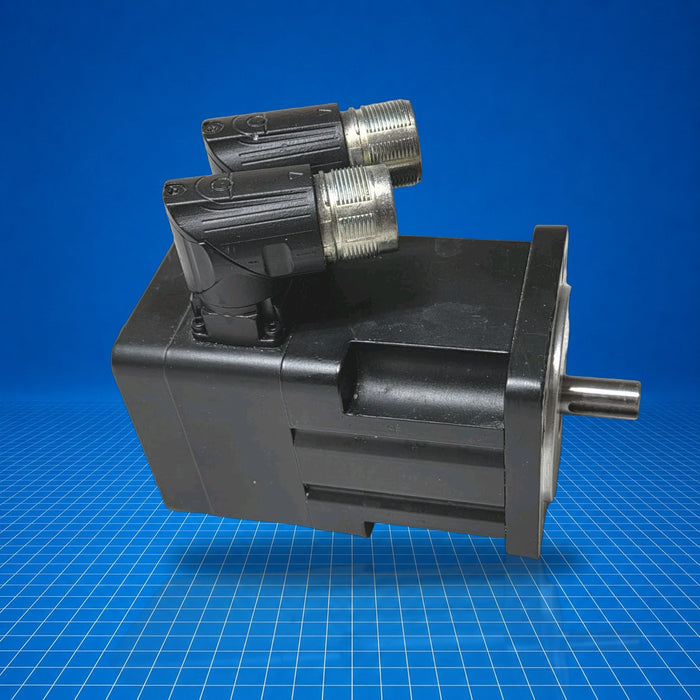

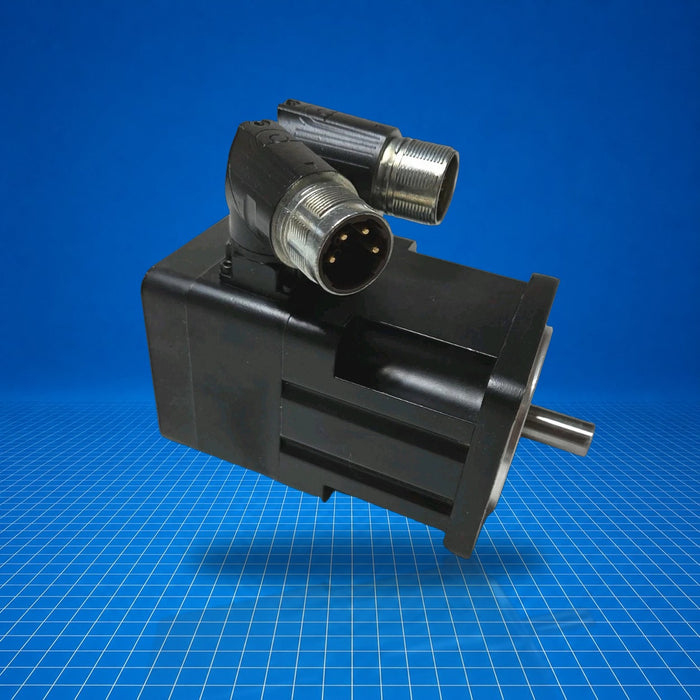

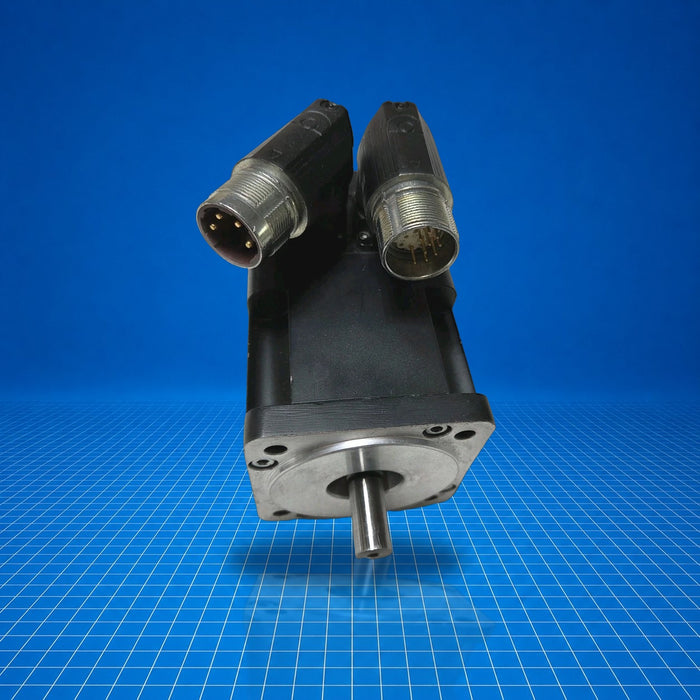

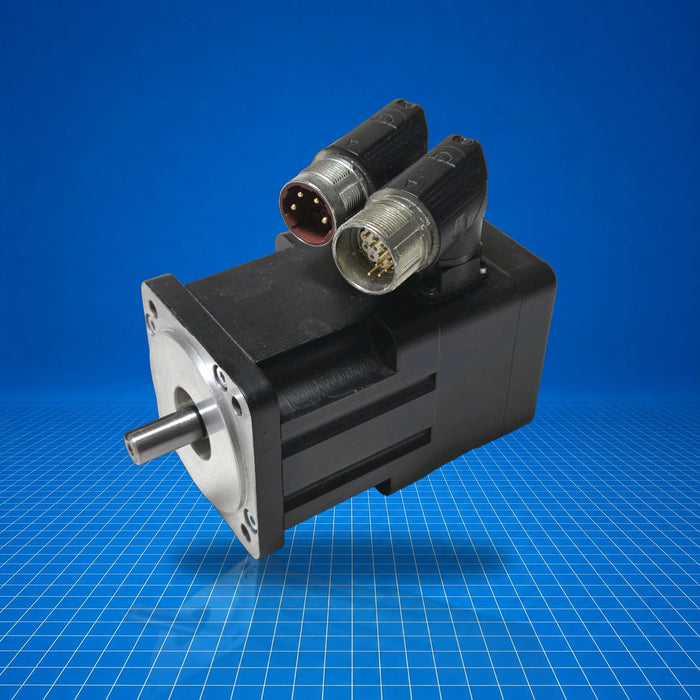

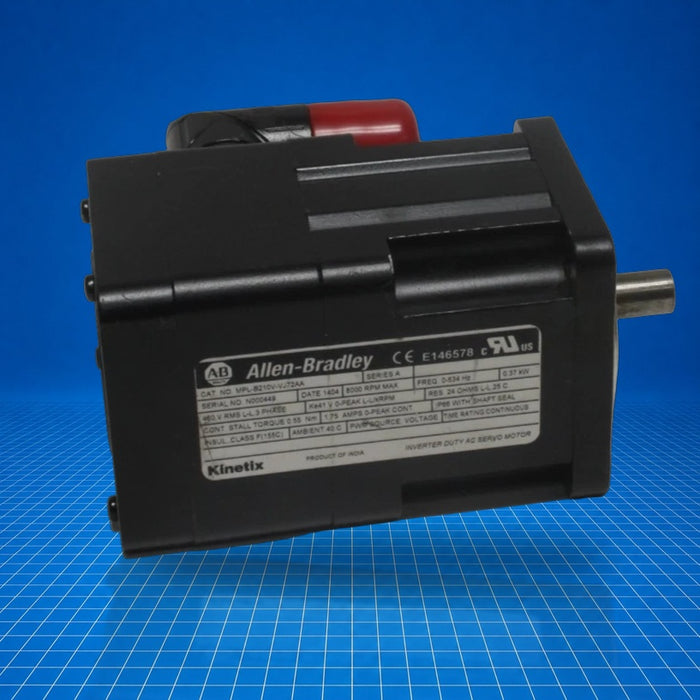

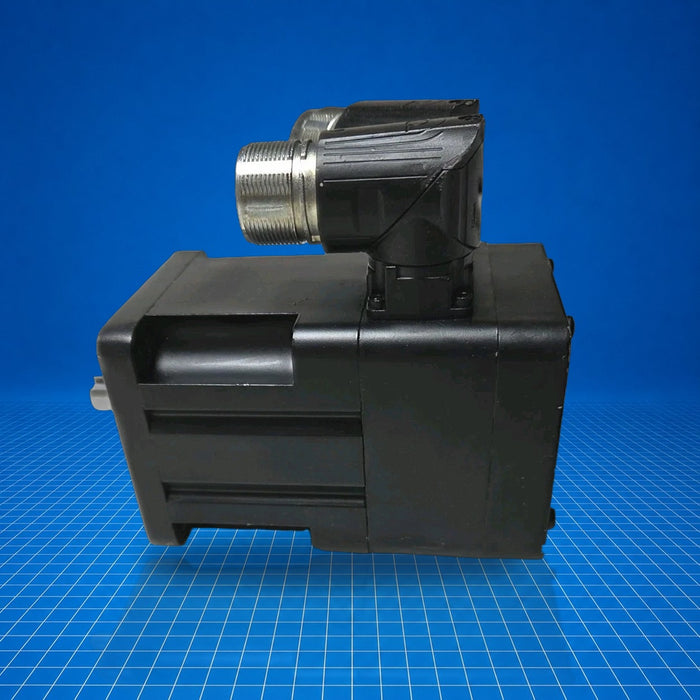

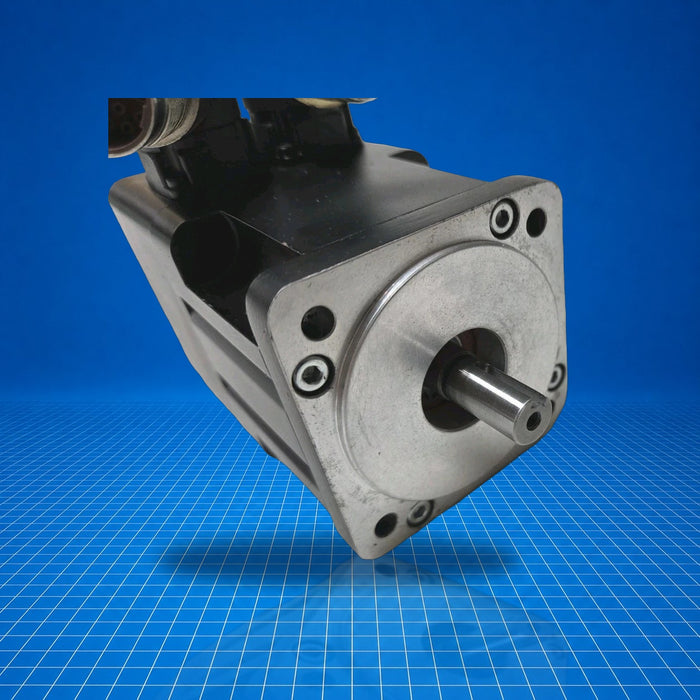

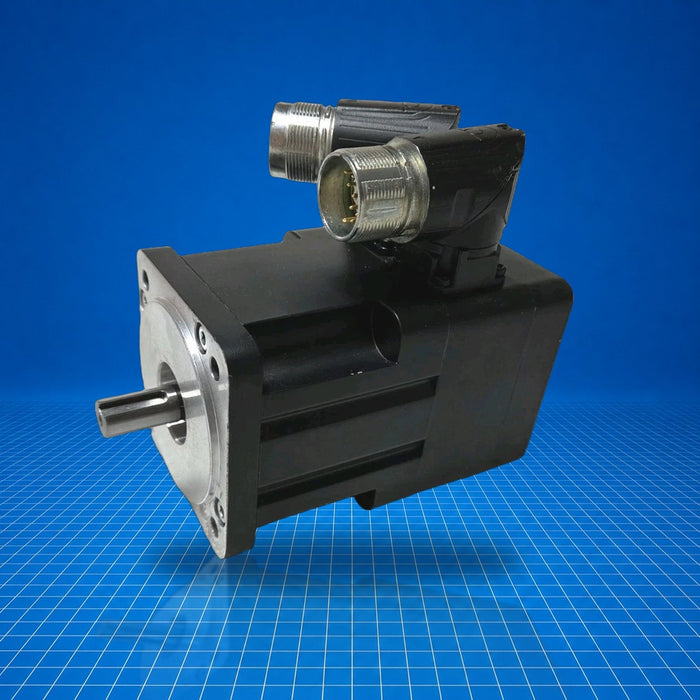

The MPL-B210V-VJ72AA is an Allen-Bradley MP-Series low-inertia brushless AC rotary servo motor. It operates at approximately 460 V AC and delivers up to 8 000 rpm with a multi-turn high-resolution encoder for absolute position feedback. The keyed shaft and IEC-metric flange (Type FF) allow direct mounting to machine axes. It is designed for use with Allen-Bradley Kinetix or Ultra servo drive systems, and is suitable for motion control tasks in packaging, material handling, and assembly machinery. MPL-B210V-VJ72AA is typically deployed where compact, precise rotary actuation is required.
Best Suited For
- Integration with Kinetix/Ultra series servo drives
- High-speed indexing or rotary motion axes
- Applications requiring absolute multi-turn feedback
- IEC-metric flange mounting in compact installations
Voltage
460 V AC
Rated Speed
8 000 rpm
Frame Size
75 mm
Magnetic Stack Length
25.4 mm (1 in.)
Feedback
Multi-turn high-resolution encoder
Technical Specifications
I/O & Electrical
Rated Speed
8 000 rpm
Voltage
460 V AC
Continuous Stall Current
1.75 A (0-peak)
Peak Stall Current
5.80 A (0-peak)
Continuous Stall Torque
0.55 Nm (4.9 lb-in.)
Peak Stall Torque
1.52 Nm (13.4 lb-in.)
Rated Output
0.37 kW (0.5 Hp)
Communication & Power
Feedback Interface
Absolute multi-turn encoder

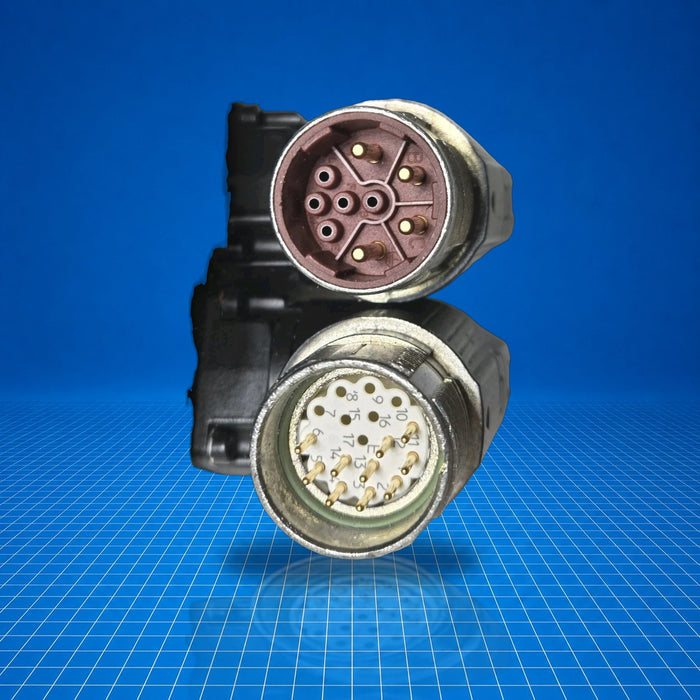

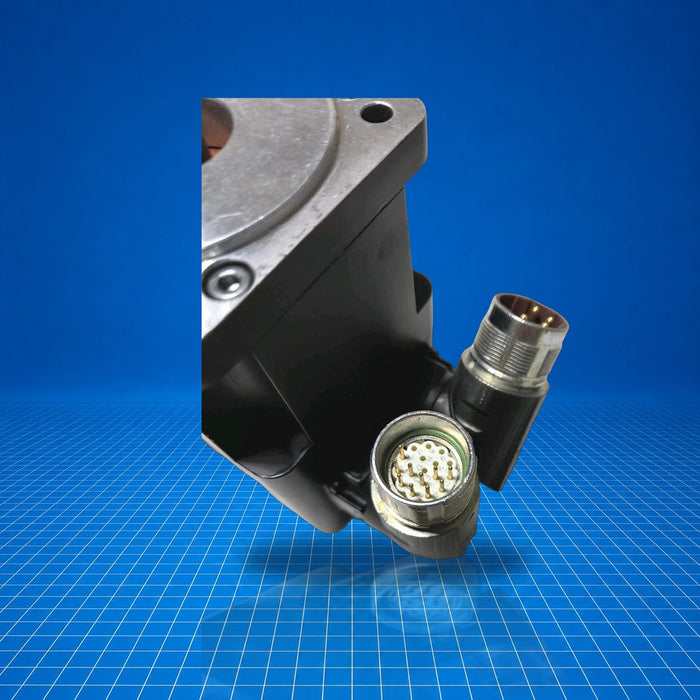

Motor Connector
SpeedTEC DIN, right-angle, 180° rotatable
Physical & Environmental
Frame Size
75 mm
Magnetic Stack Length
25.4 mm (1 in.)
Shaft
Keyed shaft, no seal

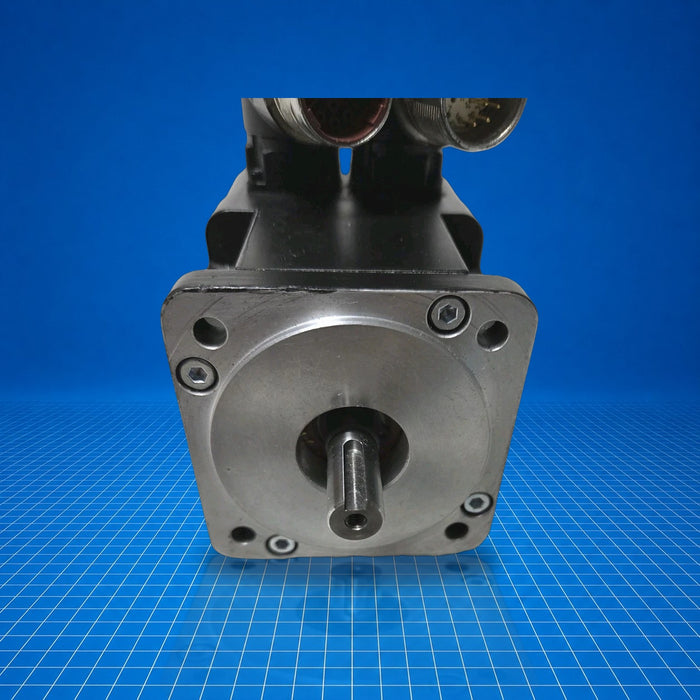

Mounting Flange
IEC-metric, free mounting holes (Type FF)
Weight
3.00 lb (1.36 kg)
