MPL-B230P-EJ72AA Allen-Bradley
Original price
$0.00
-
Original price
$965.11
Original price
$965.11
$0.00
-
$965.11
Current price
$965.11
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

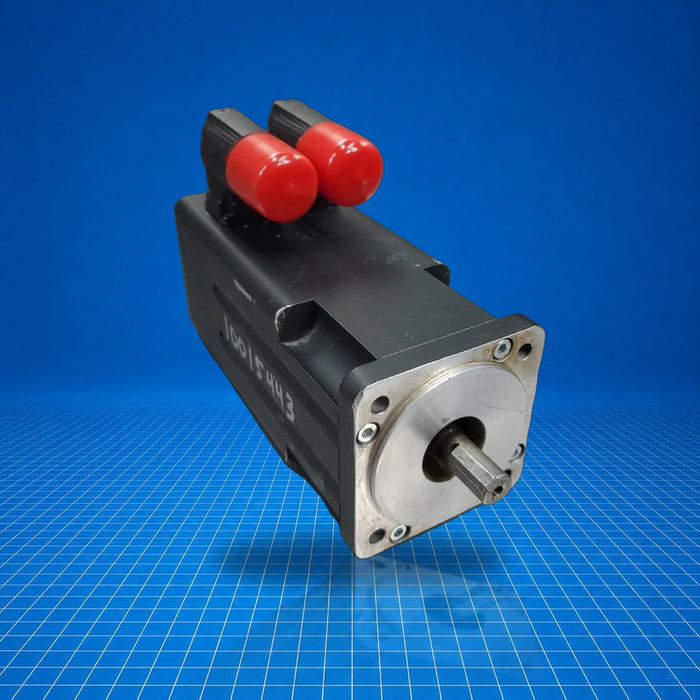

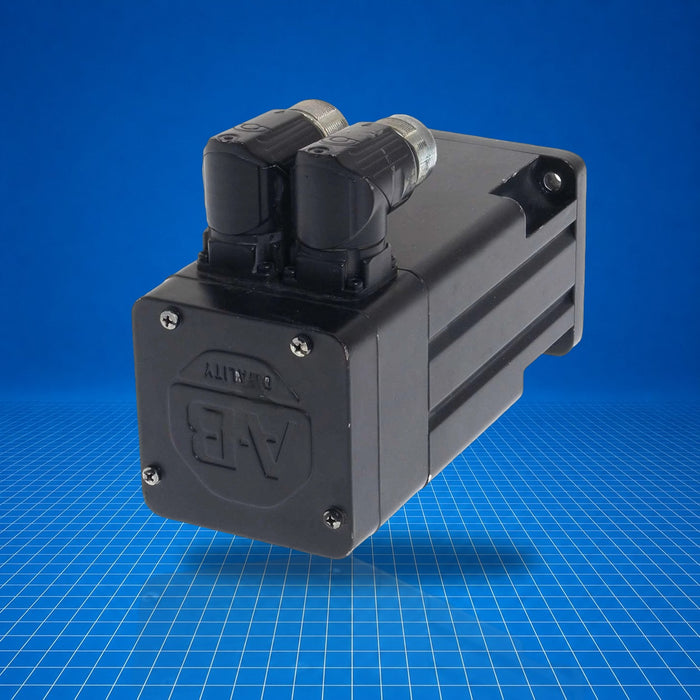

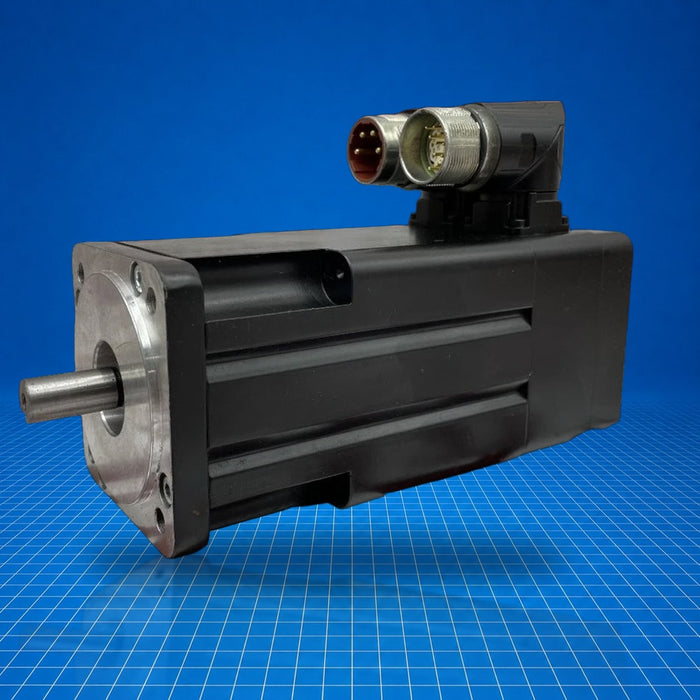

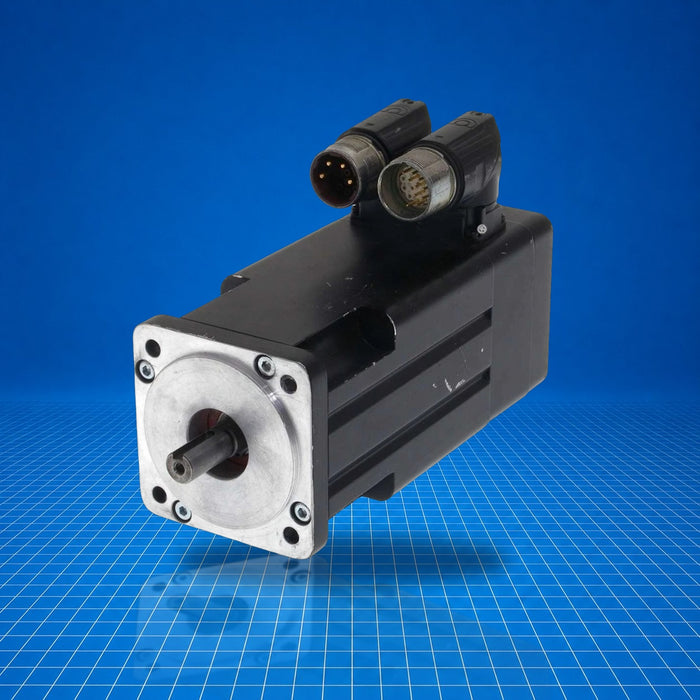

The MPL-B230P-EJ72AA is an Allen-Bradley MP-Series low-inertia brushless AC servo motor in the Kinetix MPL family. It provides 0.86 kW continuous output at a rated speed of 5000 rpm, with integrated single-turn Hiperface encoder feedback. It is used in motion control applications such as packaging, material handling, electronic assembly, and general industrial machine automation. MPL-B230P-EJ72AA is optimized for compact, high-torque installations requiring precise positioning.
Best Suited For
- Kinetix 5500/5700/6000/6200/6500 servo drive systems
- Automated packaging machinery
- Material handling systems
- Electronic assembly applications
Rated output
0.86 kW
Continuous stall torque
2.10 Nm
Peak stall torque
8.20 Nm
Rated speed
5000 rpm
Voltage class
400 V AC
Technical Specifications
I/O & Electrical
Voltage class
400 Volts
Rated output
0.86 kW
Rated speed
5000 rpm
Continuous stall torque
2.10 Nm
Peak stall torque
8.20 Nm
Continuous stall current (0-pk)
2.60 A
Peak stall current (0-pk)
11.3 A
Feedback
Single-turn high-resolution (Hiperface)
Communication & Power
Connectors

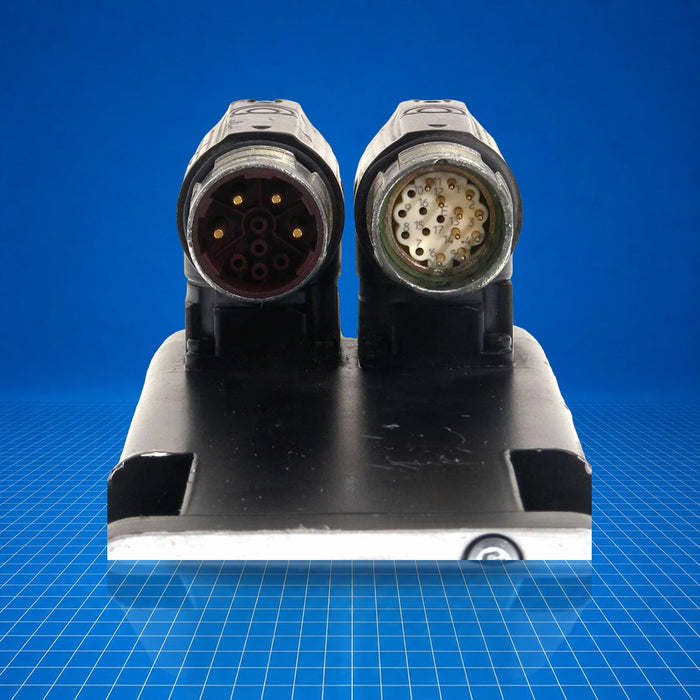

Circular DIN, right-angle, 180° rotatable
Physical & Environmental
Frame size
75 mm
Magnetic stack length
3 inches (76.2 mm)
Shaft
Keyed shaft, no shaft seal
Mounting flange
IEC metric, Type FF
Operating temperature
0 - 40 °C (32 - 104 °F)
Storage temperature
-30 - 70 °C
Relative humidity
5 - 95 % non-condensing
Weight
5.94 lb (2.69 kg)
Certifications
UL RecognizedCSACE
UL recognized, CSA and CE markings as part of MP series.
