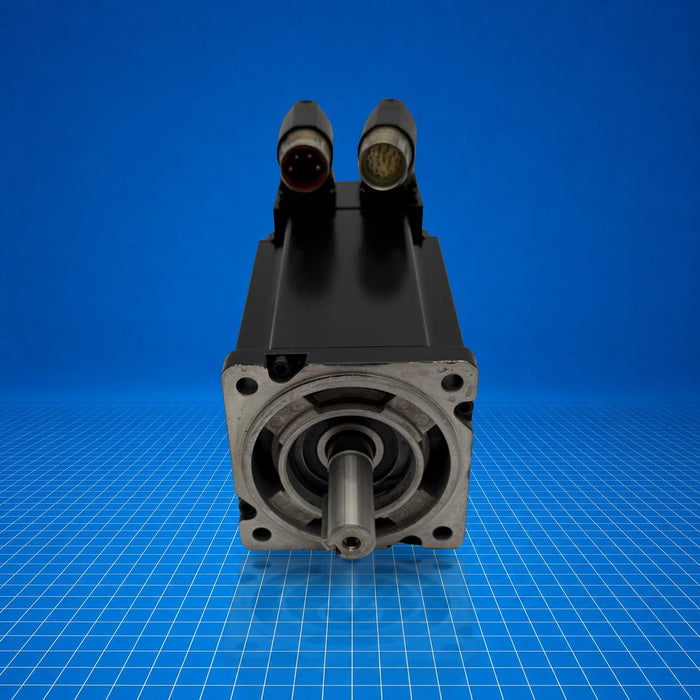

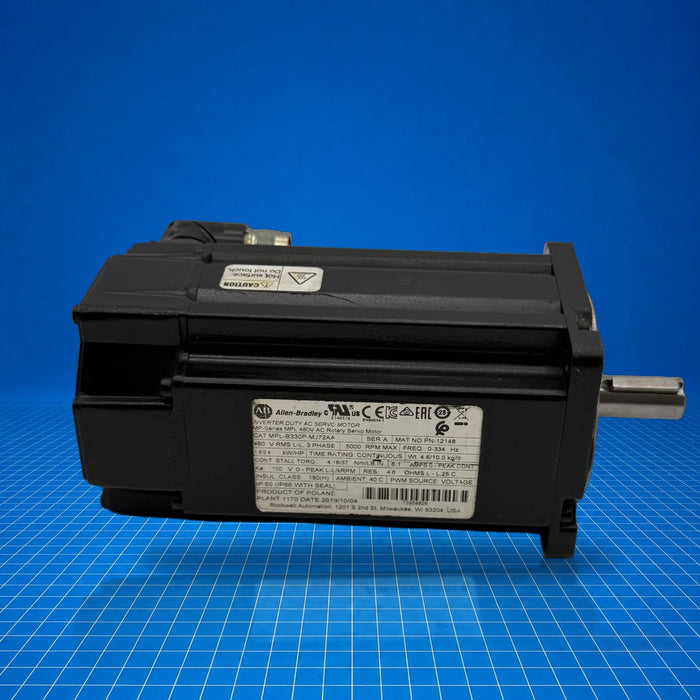

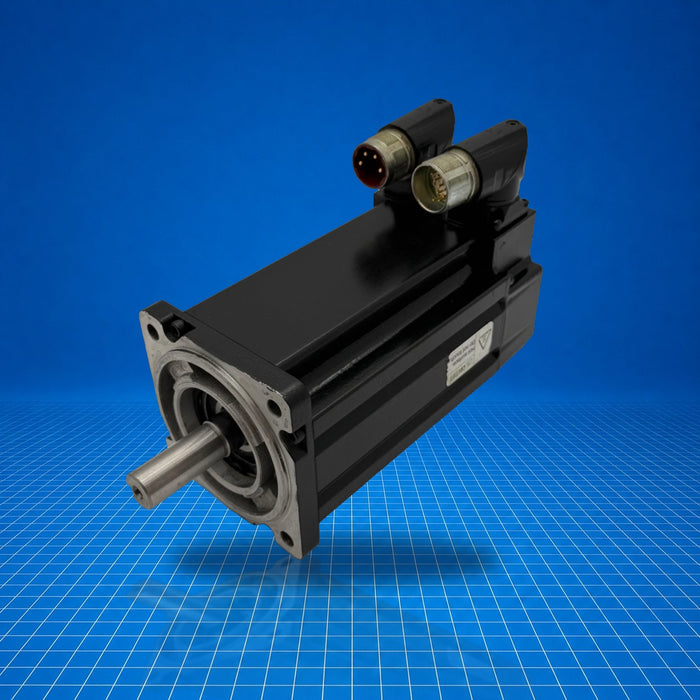

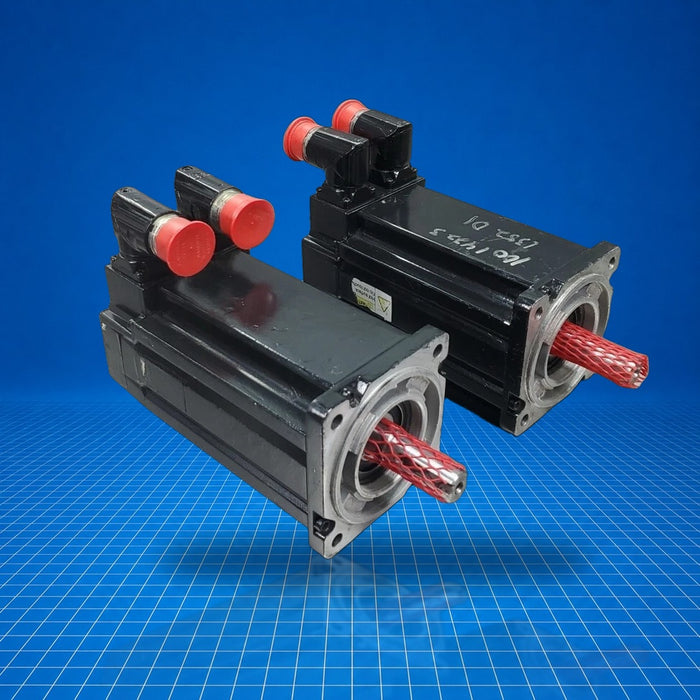

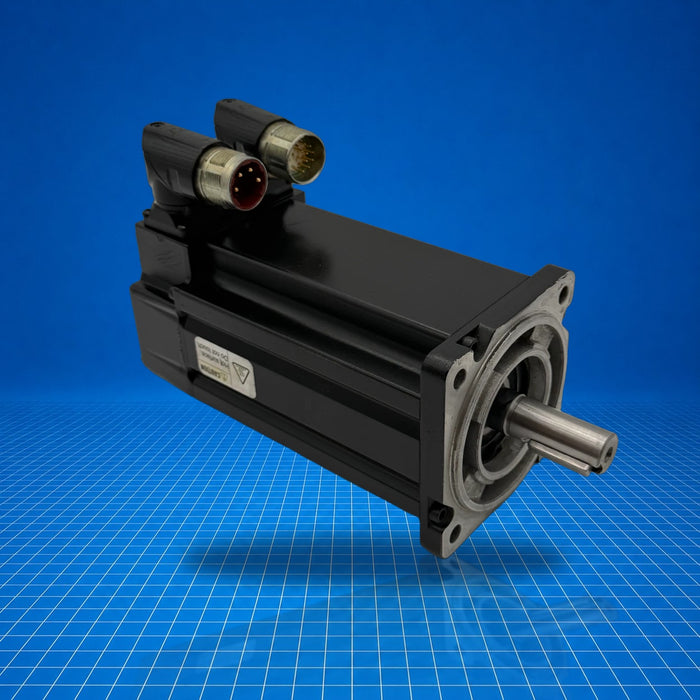

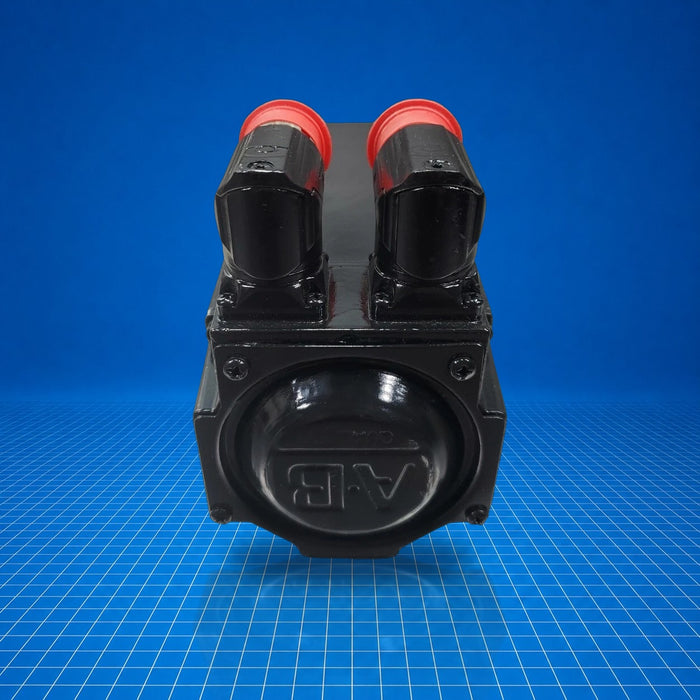

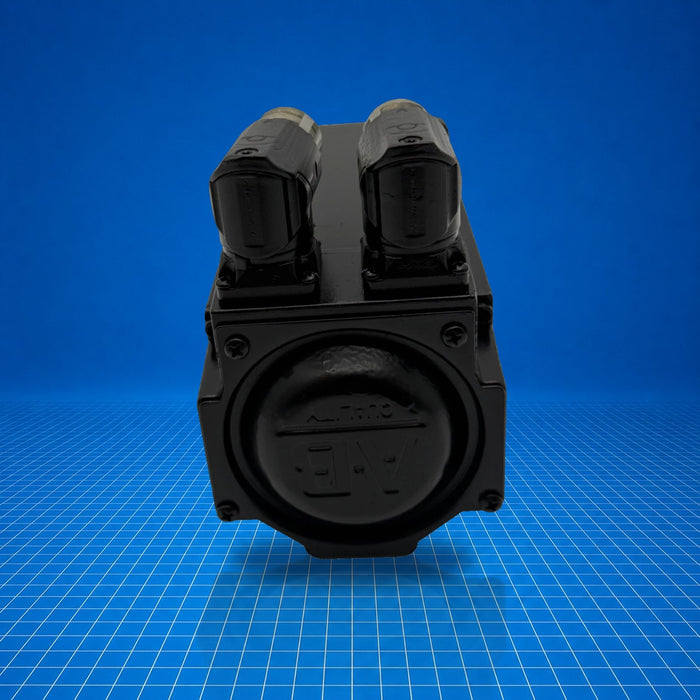

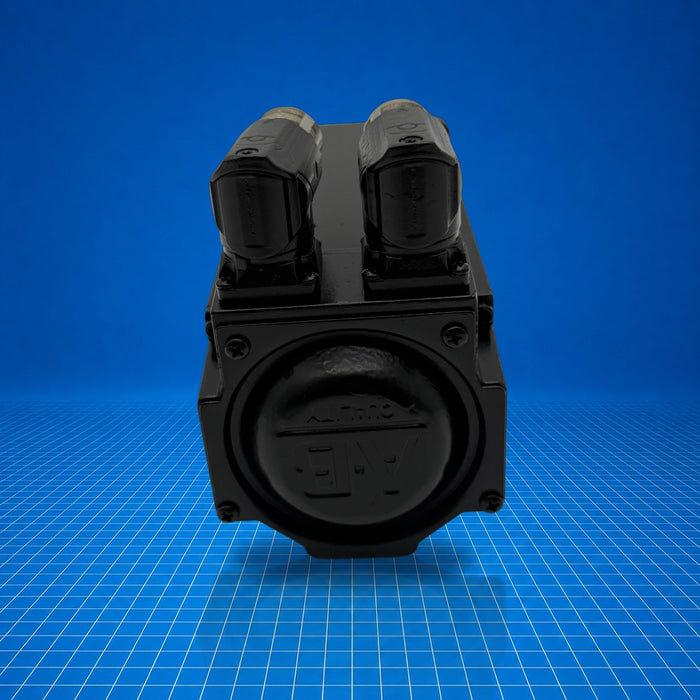

MPL-B330P-MJ72AA Allen-Bradley
Original price
$1,375.00
-
Original price
$2,449.98
Original price
$1,375.00
$1,375.00
-
$2,449.98
Current price
$1,375.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MPL-B330P-MJ72AA is an Allen-Bradley MP-Series low-inertia brushless rotary servo motor. It operates at 460 V AC with a 100 mm (3.94 in.) frame and 76.2 mm (3.0 in.) magnetic stack length, delivering 5 000 rpm, and featuring a multi-turn high-resolution absolute encoder and SpeedTEC DIN quick-connect interface. Designed for integration with Kinetix and PowerFlex servo drive systems, it is used in applications requiring precise positioning and dynamic response, such as machine tools, packaging equipment, and robotics. MPL-B330P-MJ72AA is repairable and actively supported.
Best Suited For
- Integration with Kinetix or PowerFlex servo controllers
- Compact machine tool or robotic axis requiring 5 000 rpm
- High-precision positioning with multi-turn encoder feedback
- Environments where right-angle, rotatable connector eases wiring
Voltage class
460 V AC
Frame size
100 mm (3.94 in.)
Stack length
76.2 mm (3.0 in.)
Max speed
5 000 rpm
Feedback type
Multi-turn high-resolution encoder
Technical Specifications
I/O & Electrical
Voltage
460 V AC
Max speed
5 000 rpm
Communication & Power
Connector
SpeedTEC DIN, right-angle, 180° rotatable
Feedback
Multi-turn high-resolution encoder (absolute)
Physical & Environmental
Frame size
100 mm (3.94 in.)
Stack length
76.2 mm (3.0 in.)
Mounting
IEC metric flange, free mounting holes (Type FF)
Inertia
0.00012 kg-m² (0.0010 lb-in-s²)
