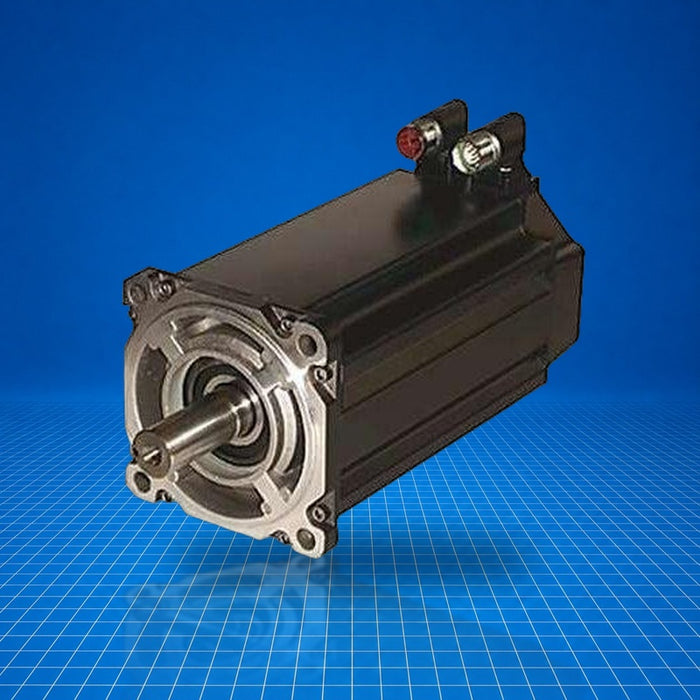

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
MPL-B330P-RJ72AA Allen-Bradley
Original price
$0.00
-
Original price
$3,585.75
Original price
$3,585.75
$0.00
-
$3,585.75
Current price
$3,585.75
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MPL-B330P-RJ72AA is an Allen-Bradley MP-Series low-inertia brushless rotary servo motor designed for 460 V AC operation. Frame size is 100 mm with a 76.2 mm (3.0 in) stack length (Frame 3, Stack 30), and rated for 5000 rpm with resolver feedback. It uses a keyed shaft and a right-angle, 180° rotatable SpeedTEC DIN connector. It integrates into motion control systems-typically paired with Kinetix or MP-Series drives-for positioning tasks in manufacturing, packaging, or material handling equipment. (MPL-B330P-RJ72AA occurs twice.)
Best Suited For
- Precision position control with Kinetix/MP drives
- On-machine servo mounting (IEC metric flange)
- Applications requiring 5000 rpm low-inertia response
- Environment with compact right-angle SpeedTEC DIN connection
Voltage class
460 V AC
Rated speed
5000 rpm
Frame / stack
100 mm / 76.2 mm
Feedback
Resolver
Connector type
Right-angle SpeedTEC DIN, 180° rotatable
Technical Specifications
I/O & Electrical
Rated speed
5000 rpm
Voltage class
460 V AC
Rated output
1.8 kW
Continuous stall torque
4.18 Nm (37 lb-in.)
Peak stall torque
11.1 Nm (98 lb-in.)
Continuous stall current (0-peak)
6.1 A
Peak stall current (0-peak)
19.0 A
Communication & Power
Connector type
SpeedTEC DIN, right-angle, 180° rotatable
Physical & Environmental
Frame size
100 mm (3.94 in.)
Magnetic stack length
76.2 mm (3.0 in.)
Shaft extension
Keyed, no brake
Mounting flange
IEC metric, free-mounting holes
