Product Overview

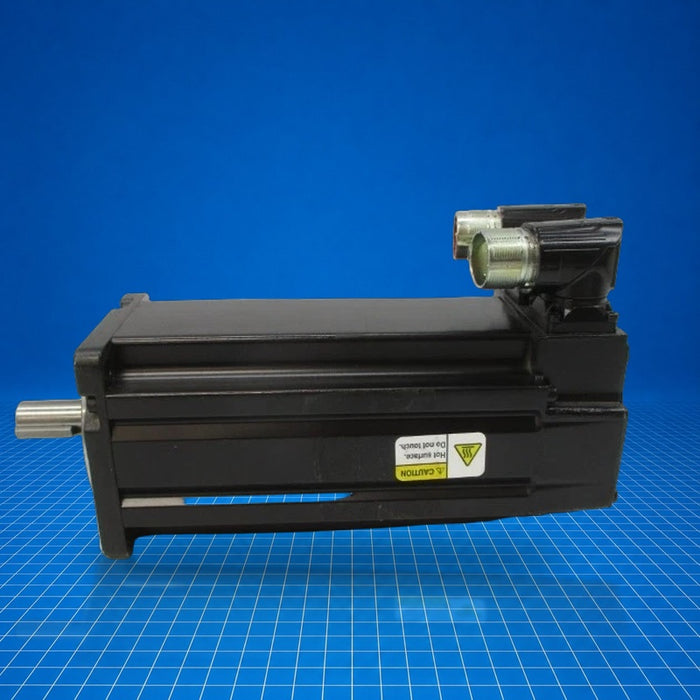

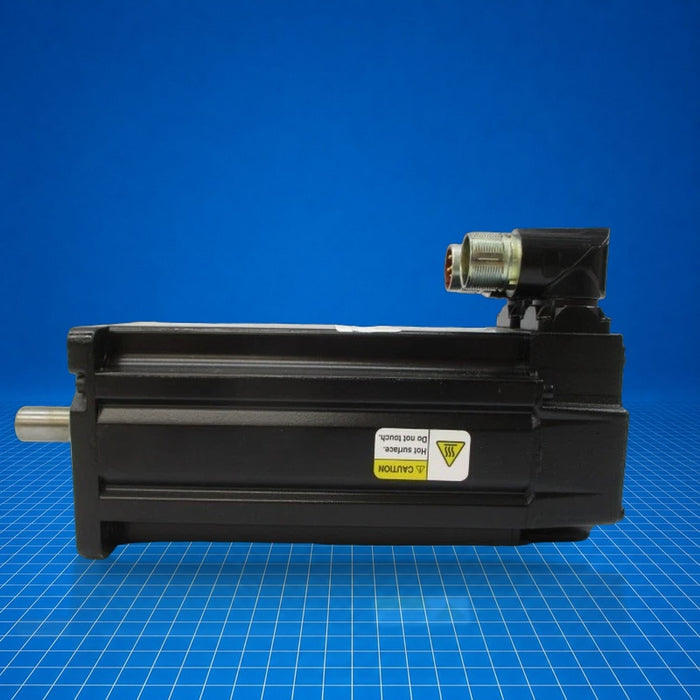

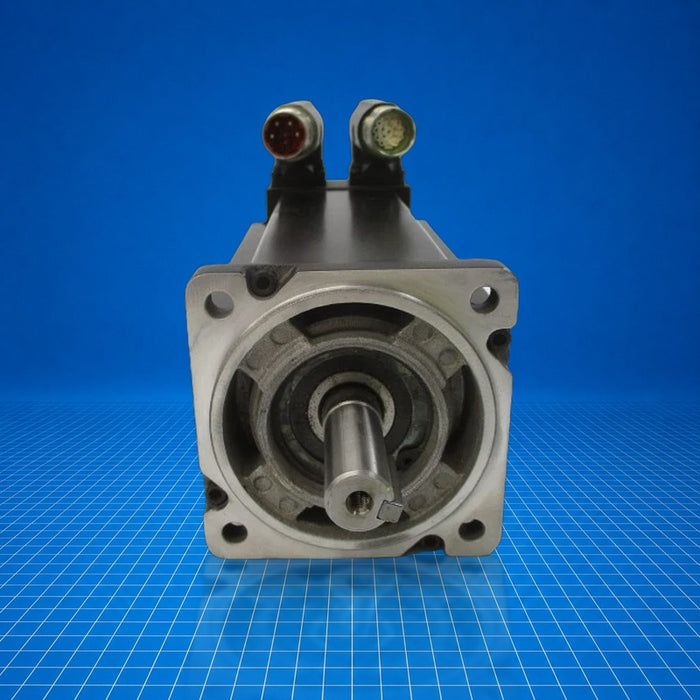

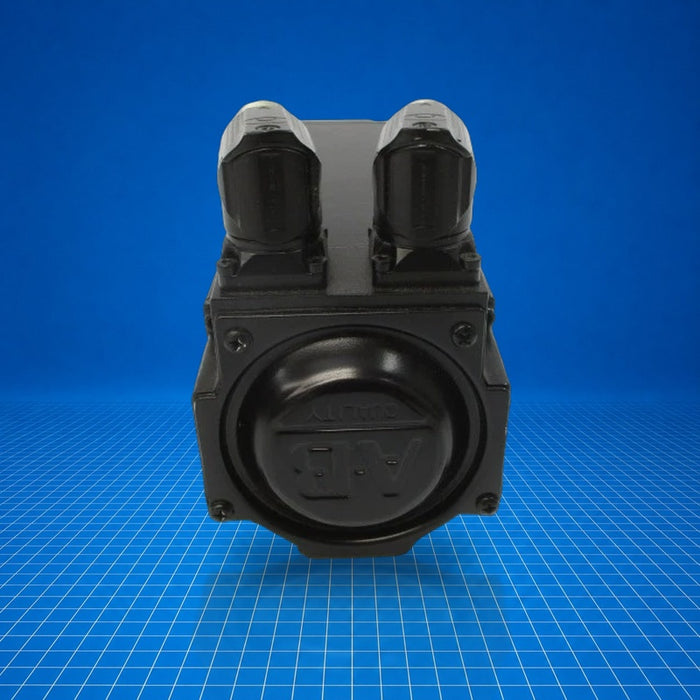

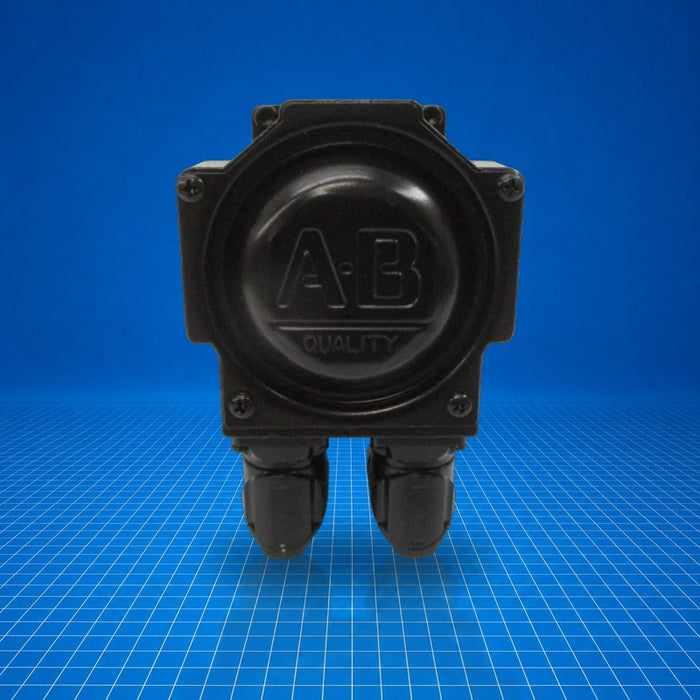

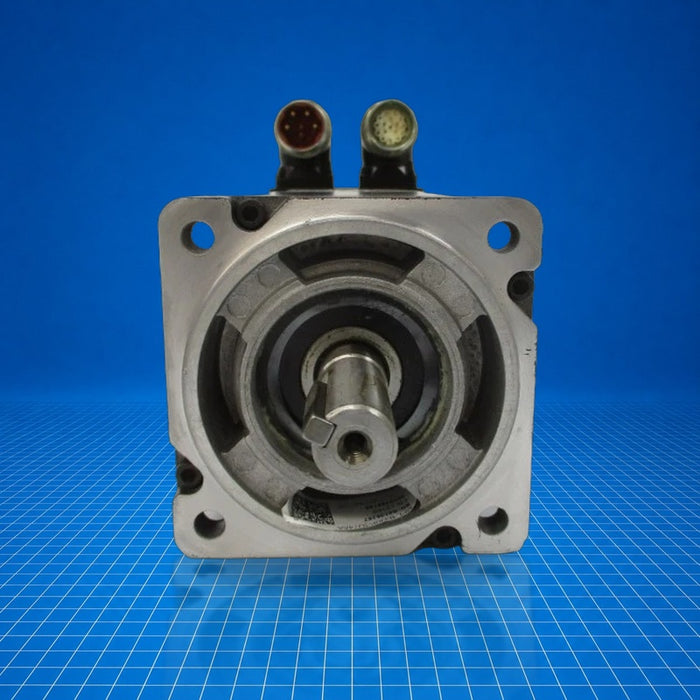

The MPL-B330P-SJ74AA is an Allen-Bradley MP-Series low-inertia brushless AC rotary servo motor. Part of the MPL family, it furnishes closed-loop position and velocity control in motion applications. With a 100 mm frame and 76.2 mm magnet stack, this 1.8 kW (400 V class) motor delivers continuous stall torque of 4.18 N·m at 5000 rpm, includes a 1024 sin/cos single-turn absolute encoder, 24 V DC holding brake, and SpeedTEC DIN connector. Typical use cases include packaging, material handling, electronic assembly, and automotive motion systems.
Best Suited For
- Kinetix servo drive systems (e.g. Kinetix 5500/5700/6000/6500)
- Compact motion control axes requiring moderate torque and fast acceleration
- Applications requiring absolute position feedback via Hiperface-style encoder
- Installations with need for integrated holding brake
Frame size
100 mm
Rated power
1.8 kW
Continuous stall torque
4.18 N·m
Rated speed
5000 rpm
Feedback
1024 sin/cos single-turn absolute encoder
Technical Specifications
I/O & Electrical
Input voltage
400 V AC (460 VAC, 3-phase)
Continuous stall current
6.1 A
Rated power
1.8 kW
Continuous stall torque
4.18 N·m
Communication & Power
Encoder
1024 sin/cos single-turn absolute
Connectors
SpeedTEC DIN, right-angle, 180° rotatable
Holding brake voltage
24 V DC
Physical & Environmental
Frame size
100 mm
Magnet stack length
76.2 mm (3.0 in)
Rotor inertia
0.00012 kg-m² (0.0010 lb-in-s²)
Weight
11.75 lb (5.33 kg)
