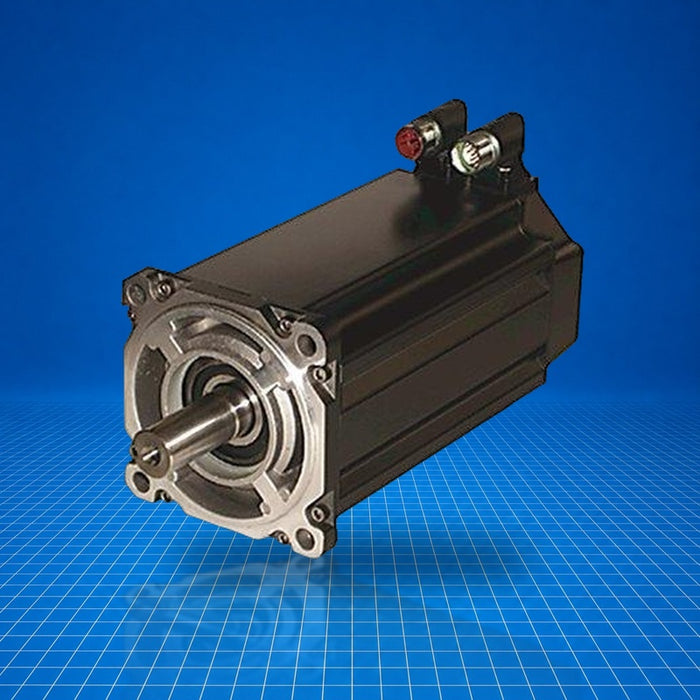

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

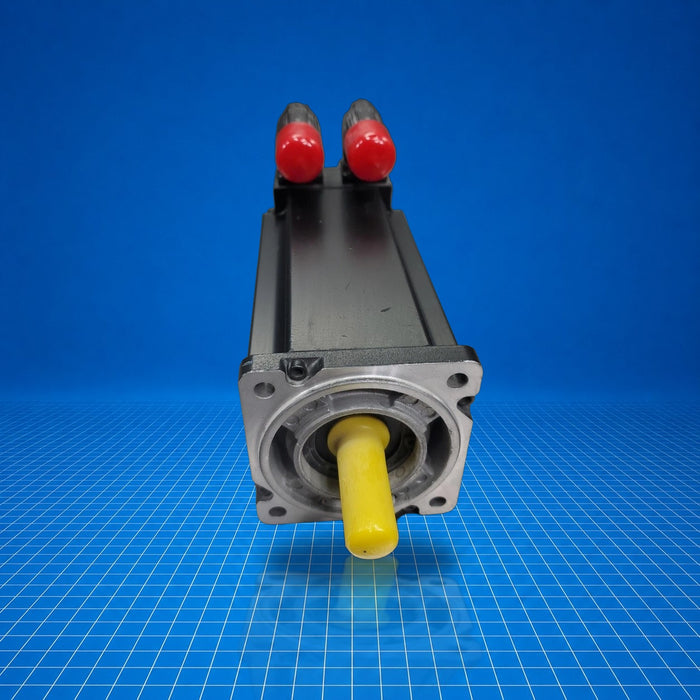

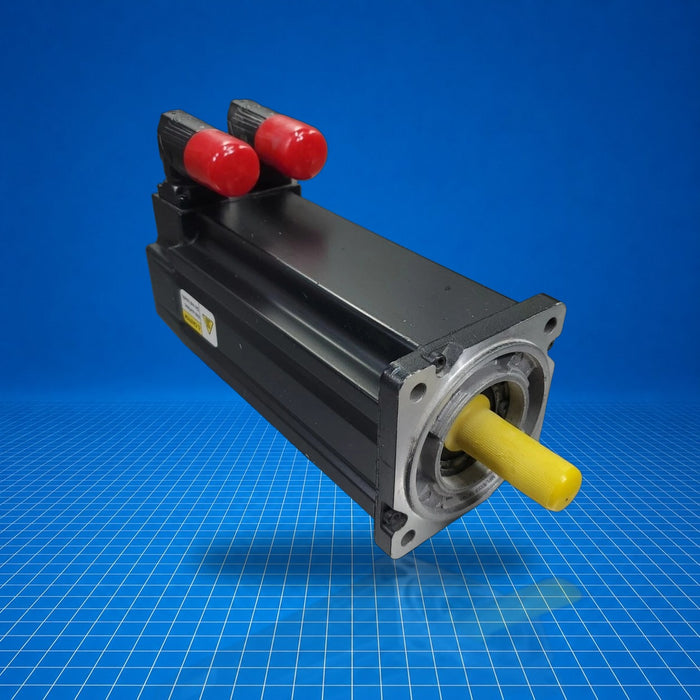

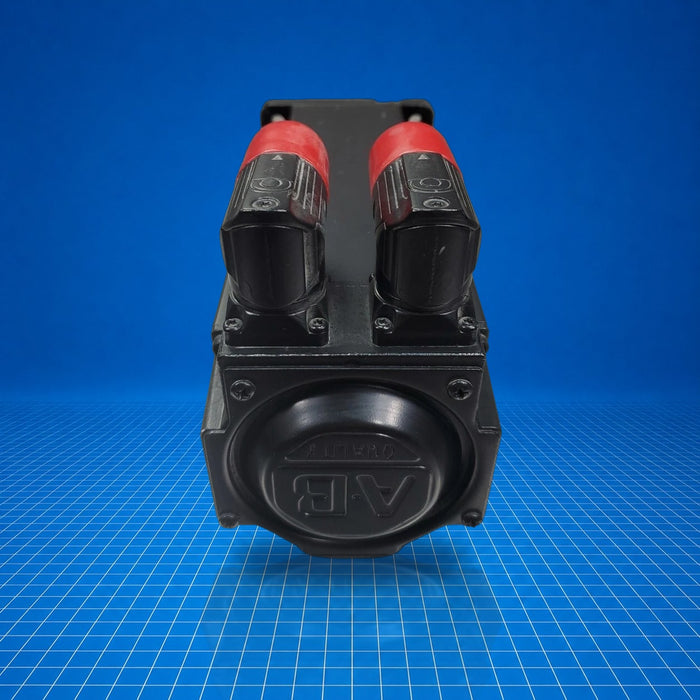

MPL-B330P-SK74AA Allen-Bradley
Original price
$4,233.08
-
Original price
$4,375.00
Original price
$4,233.08
$4,233.08
-
$4,375.00
Current price
$4,233.08
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MPL-B330P-SK74AA is an Allen-Bradley MP-Series low-inertia, brushless rotary servo motor (460 V class). It delivers precise motion feedback via a single-turn high-resolution encoder, includes a 24 V DC brake, and features a keyless shaft extension with 180° rotatable SpeedTEC DIN connector. Designed for integration with Kinetix and PowerFlex servo drive systems, it is suited for applications requiring accurate positioning and controlled deceleration in packaging, material handling, and machine tool systems. MPL-B330P-SK74AA is intended for control system feedback and dynamic axis control applications.
Best Suited For
- Kinetix 5500 and PowerFlex servo drive systems
- Precise position control and deceleration with integrated brake
- Compact low-inertia motion axes in packaging or handling systems
- Retrofit or replacement of discontinued HK74AA variant
Voltage class
460 V AC
Rated speed
5000 rpm
Encoder type
Single-turn high-resolution
Brake
24 V DC
Mounting frame
100 mm IEC metric
Technical Specifications
I/O & Electrical
Continuous stall current (0-peak)
6.1 A
Peak stall current (0-peak)
17.7 A
Continuous stall torque
4.18 N·m (37 lb-in)
Peak stall torque
10.4 N·m (92 lb-in)
Rated output
1.8 kW
Communication & Power
Brake voltage
24 V DC
Connector
SpeedTEC DIN, right-angle, 180° rotatable
Physical & Environmental
Frame size
100 mm
Magnet stack length
30 (76.2 mm / 3.0 in)
Shaft extension
Keyless
Mounting
IEC metric, free-mounting holes
