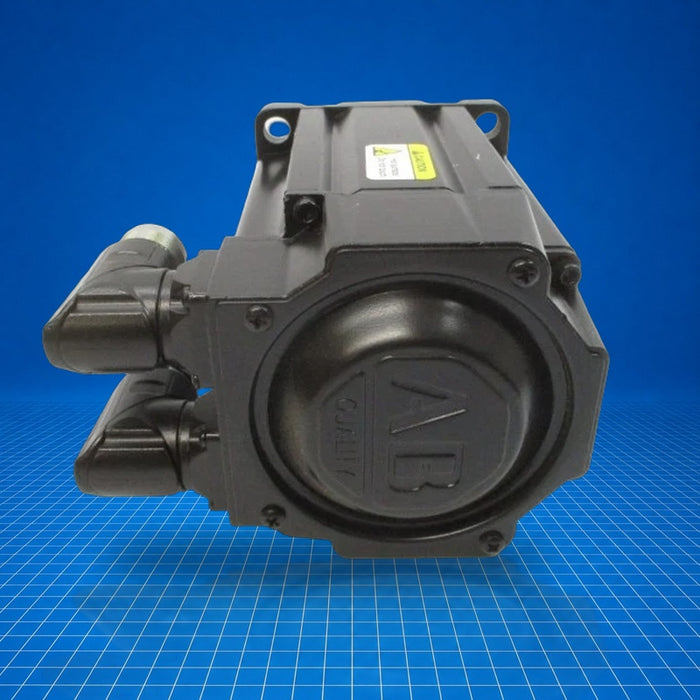

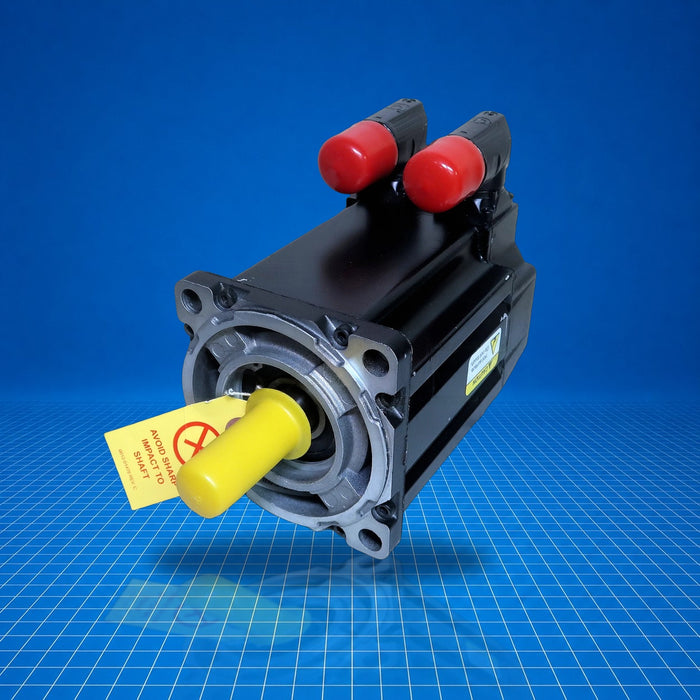

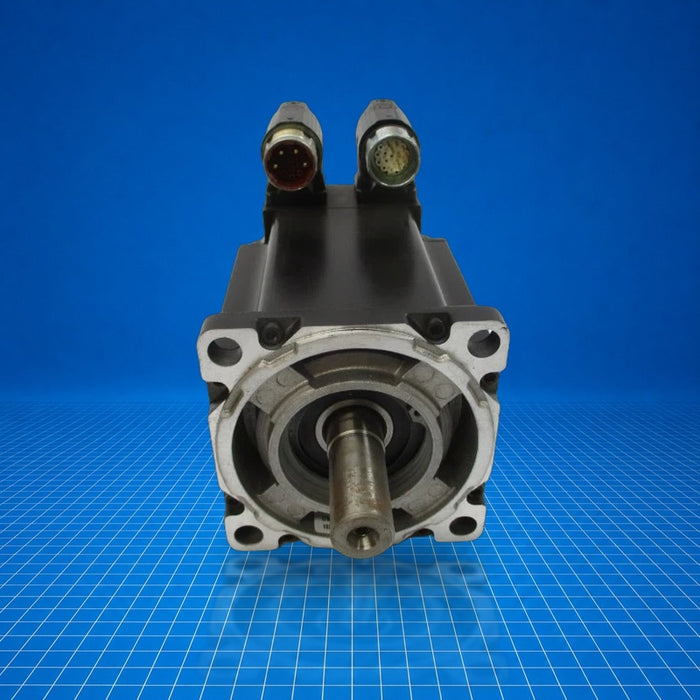

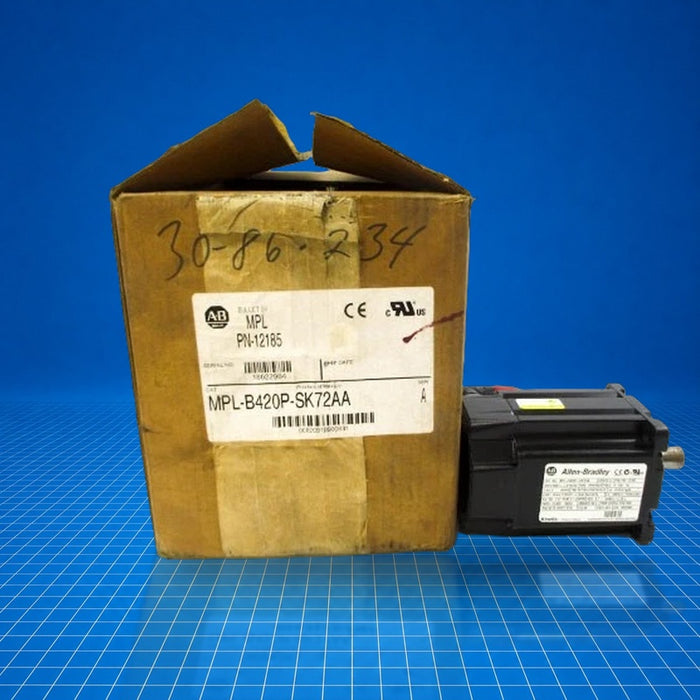

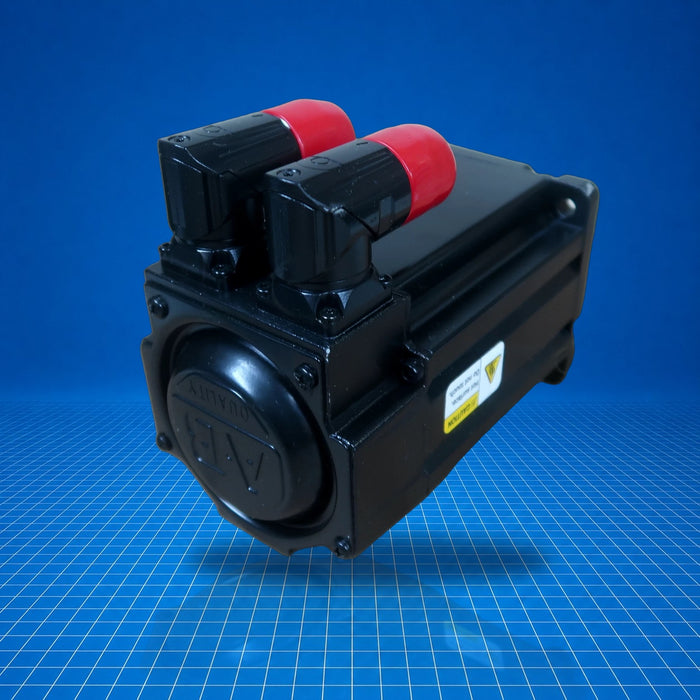

MPL-B420P-SK72AA Allen-Bradley
Original price
$2,475.00
-
Original price
$3,229.60
Original price
$3,229.60
$2,475.00
-
$3,229.60
Current price
$3,229.60
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MPL-B420P-SK72AA is an Allen-Bradley MP-Series low-inertia brushless rotary servo motor. It operates at 460 V AC and has a frame size of 115 mm (4.53 in) with a magnet stack length of 50.8 mm (2.0 in). Equipped with a single-turn high-resolution encoder and a keyless shaft extension, it connects via a 7-pin SpeedTEC DIN right-angle, 180° rotatable quick-connect. It integrates into motion control systems-such as those using Kinetix drives-for tasks like indexing, positioning, and precise speed control in manufacturing. Part number MPL-B420P-SK72AA appears in literature and hardware listings.
Best Suited For
- Integration with Allen-Bradley Kinetix motion control systems
- Precision positioning and indexing applications
- High-speed rotary servo applications up to 5000 rpm
- Compact machine tool or assembly line installations
Voltage
460 V AC
Frame size
115 mm (4.53 in)
Rated speed
5000 rpm
Encoder
Single-turn high-resolution
Connector
7-pin SpeedTEC DIN, right-angle, rotatable
Technical Specifications
I/O & Electrical
Line-to-line rated voltage
460 V
Continuous stall current
6.4 A (0-peak)
Peak stall current
22.0 A (0-peak)
Continuous stall torque
4.74 Nm
Peak stall torque
13.5 Nm
Communication & Power
Connector type
7-pin SpeedTEC DIN, right-angle, 180° rotatable
Physical & Environmental
Frame size
115 mm (4.53 in)
Magnet stack length
50.8 mm (2.0 in)
Shaft extension
Keyless
Rated speed
5000 rpm
