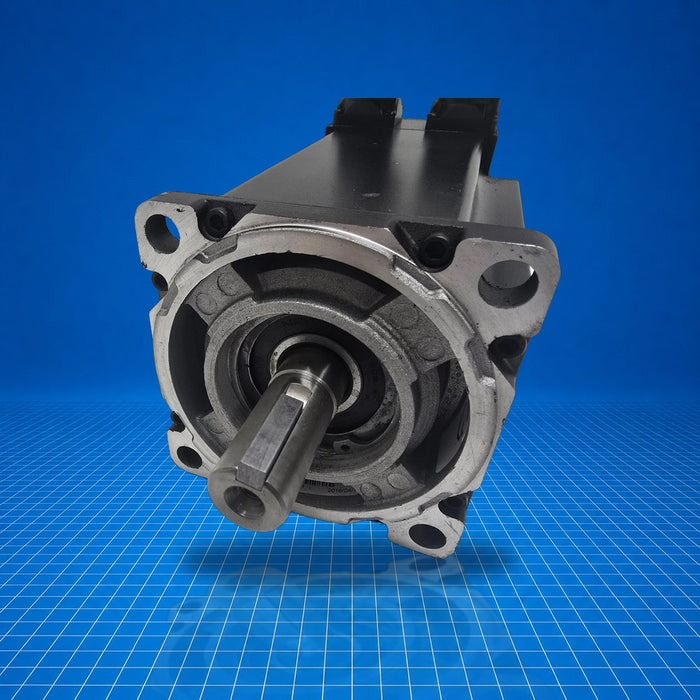

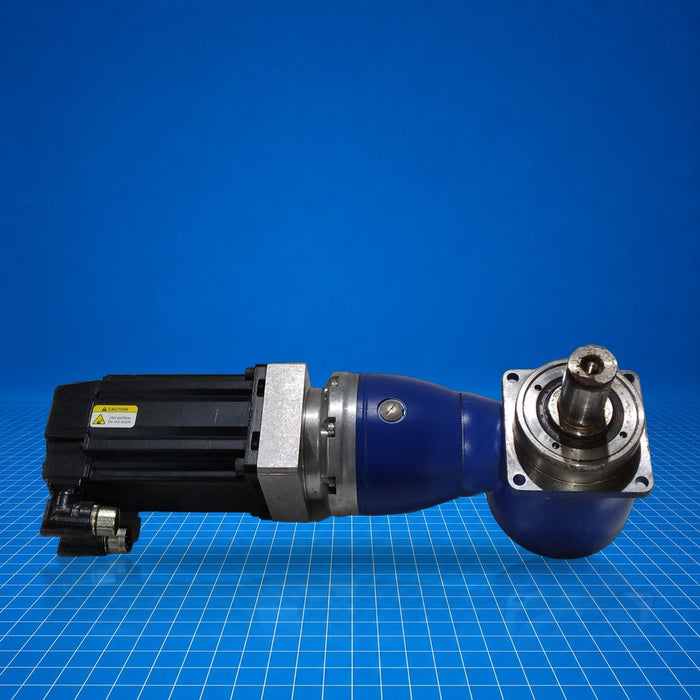

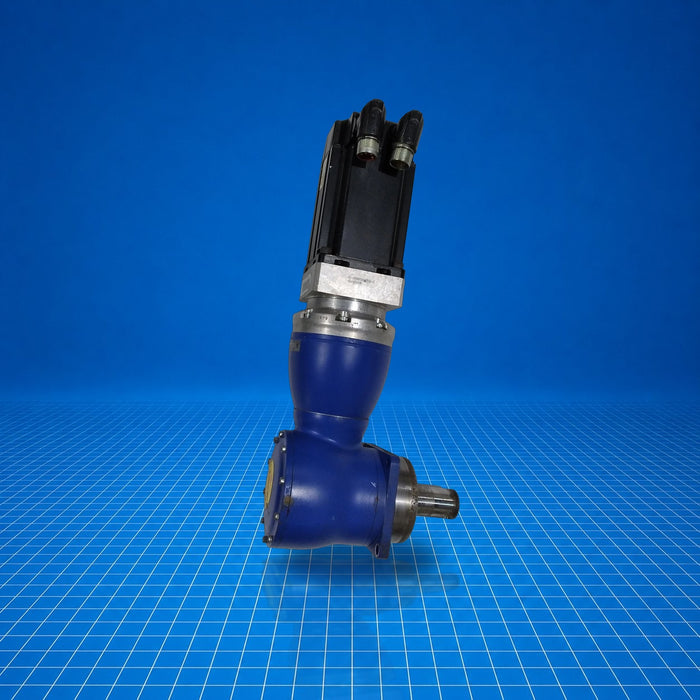

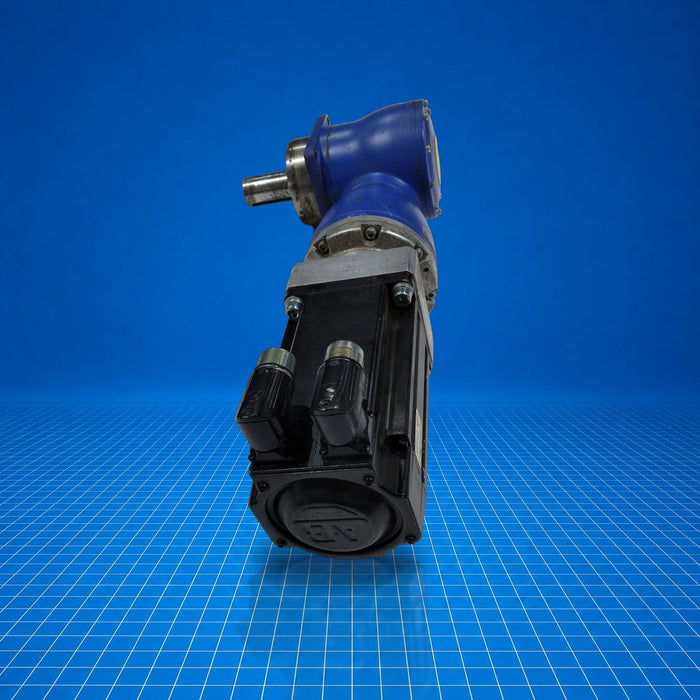

MPL-B430P-MJ72AA Allen-Bradley
Original price
$1,237.50
-
Original price
$2,328.73
Original price
$1,237.50
$1,237.50
-
$2,328.73
Current price
$1,237.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MPL-B430P-MJ72AA is an Allen-Bradley MP-Series low-inertia brushless rotary servo motor designed for use in industrial motion control systems. Part of the 460 V class Frame Size 4 (115 mm diameter, 76.2 mm stack length), it delivers rated speed of 5000 RPM with multi-turn high-resolution absolute encoder feedback. It includes a keyed shaft extension, SpeedTEC DIN quick-connect interface, and mount-friendly IEC metric flange. MPL-B430P-MJ72AA serves as the actuator element in coordinated drive systems for machine motion.
Best Suited For
- Integration with Kinetix or PowerFlex servo drives
- High-speed positioning applications
- Material handling systems
- Automated assembly or converting lines
Voltage Class
460 V
Frame / Stack Length
115 mm / 76.2 mm
Rated Speed
5000 RPM
Feedback
Multi-turn absolute encoder
Connector
SpeedTEC DIN, 180° rotatable
Technical Specifications
I/O & Electrical
Armature voltage
460 V
Communication & Power
Feedback type
Multi-turn absolute encoder
Connector type
SpeedTEC DIN circular, right-angle, 180° rotatable
Physical & Environmental
Frame size (diameter)
115 mm
Magnet stack length
76.2 mm
Shaft extension
Keyed
Mounting flange
IEC metric, free mounting holes (Type FF)
Certifications
Certifications valid as of May 19, 2026; review product label for current marks.
