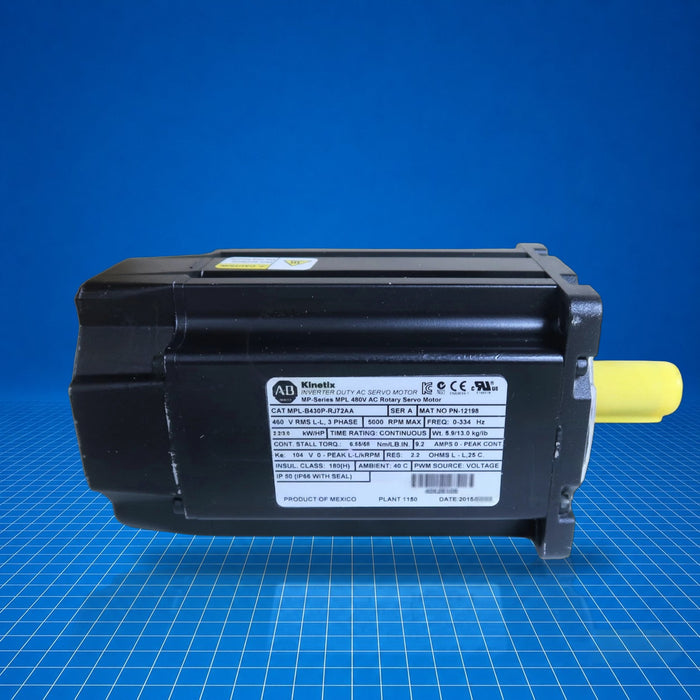

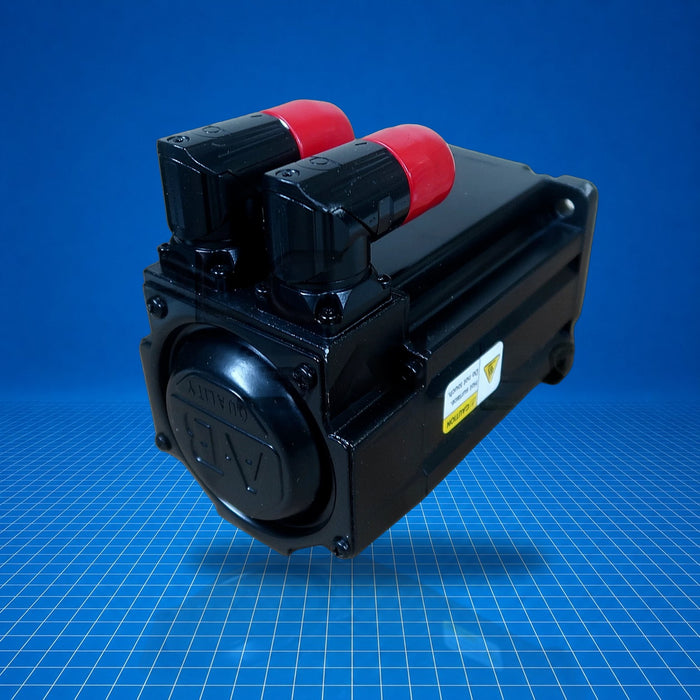

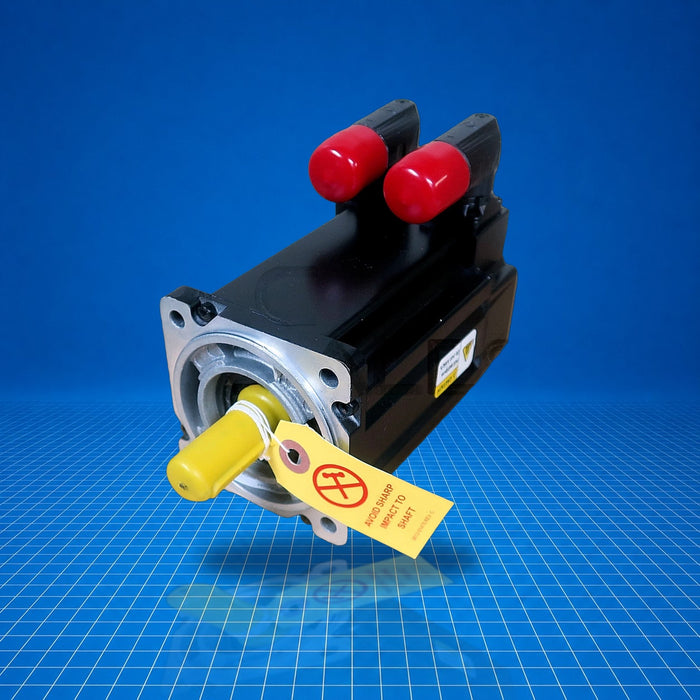

MPL-B430P-RJ72AA Allen-Bradley
Original price
$2,812.39
-
Original price
$2,930.00
Original price
$2,812.39
$2,812.39
-
$2,930.00
Current price
$2,812.39
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The part MPL-B430P-RJ72AA is a low-inertia brushless servo motor in the Allen-Bradley MP-Series (Bulletin MPL). It operates at 460 V AC, frame size 4 (115 mm), with a 76.2 mm stack length and 5000 RPM nominal speed. Its resolver feedback, keyed shaft extension, and right-angle SpeedTEC DIN quick-connect make it suitable for positioning and motion control systems where precise speed and torque control are required, such as CNC axes, robotic joints, and high-speed indexing applications. The part's configuration supports mounting versatility and straightforward integration into servo drive systems.
Best Suited For
- Position control in CNC machinery
- Robotic arm joint actuation
- High-speed indexing conveyors
- Servo drive compatibility in MP-Series applications
Voltage
460 V AC
Frame Size
115 mm
Speed
5000 RPM
Feedback Type
Resolver
Connector
SpeedTEC DIN, right-angle
Technical Specifications
I/O & Electrical
Nominal voltage
460 V AC
Communication & Power
Connector type
SpeedTEC DIN Connector, right-angle, 180° rotatable
Feedback
Resolver
Physical & Environmental
Frame size
115 mm (4.53 in.)
Stack length
76.2 mm (3.0 in.)
Shaft
Keyed shaft extension
Mounting
IEC metric, free mounting holes (Type FF)
