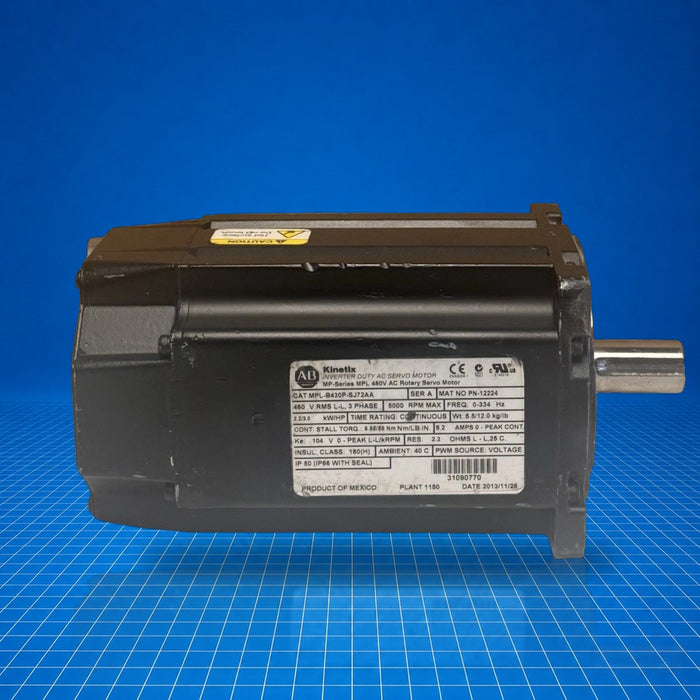

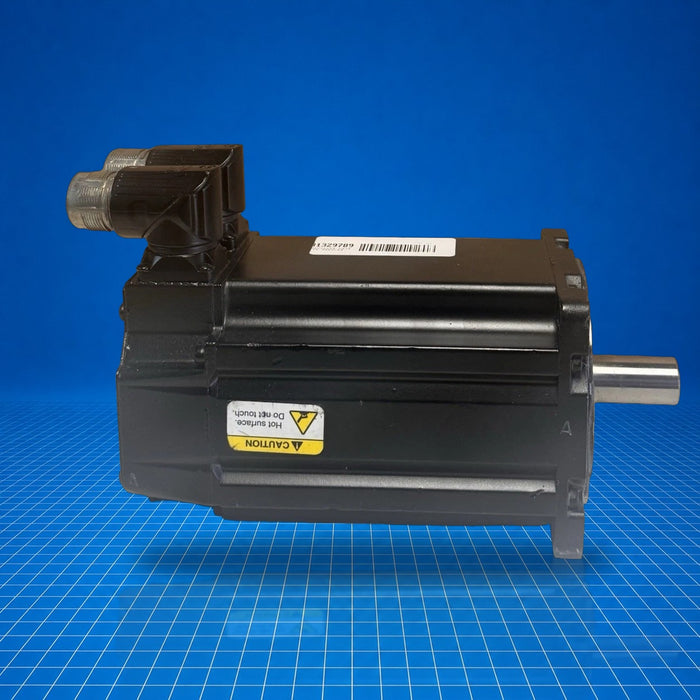

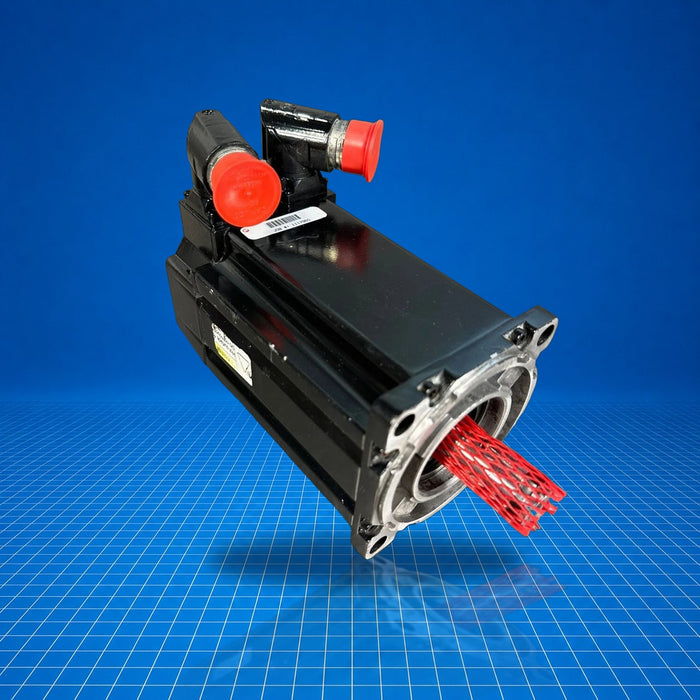

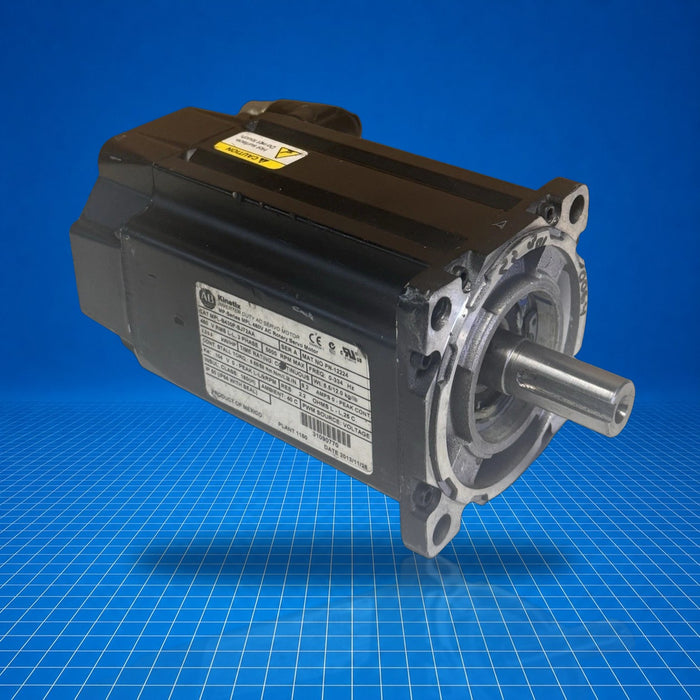

MPL-B430P-SJ72AA Allen-Bradley
Original price
$1,852.47
-
Original price
$3,080.00
Original price
$1,852.47
$1,852.47
-
$3,080.00
Current price
$1,852.47
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MPL-B430P-SJ72AA is an Allen-Bradley MP-Series low-inertia brushless servo motor, designed for dynamic motion control in industrial automation systems. It features a 115 mm (Frame 4) diameter and a 76.2 mm (3.0 in.) magnet stack, rated for 400 VAC operation. Integrated single-turn high-resolution encoder (1024 Sin/Cos) enables precise feedback without a battery. The motor is intended for use with Kinetix servo drives and suits applications such as material handling, assembly, and robotic joints.
Best Suited For
- Integration with Kinetix 5500/5700/6000/6500/300/350/2000/7000 drives
- Compact servo applications in assembly or sorting lines
- Robot joint actuation requiring fast acceleration and torque
- Dynamic material handling motion axes
Rated power
2.2 kW
Continuous stall torque
6.55 Nm (58 lb-in.)
Peak stall torque
19.8 Nm (175 lb-in.)
Frame size (diameter × stack length)
115 mm × 76.2 mm (3.0 in.)
Voltage class
400 VAC
Technical Specifications
I/O & Electrical
Rated voltage
400 VAC
Continuous stall current
9.2 A
Peak stall current
32.0 A
Communication & Power
Feedback
Single-turn high-resolution encoder (1024 Sin/Cos; no battery)
Physical & Environmental
Frame size
115 mm (Frame 4)
Magnet stack length
76.2 mm (3.0 in.)
Rated speed
5000 rpm
Weight
≈ 5.5 kg (12.13 lb)
Dimensions (L×W×H)
132 × 215 × 98.3 mm (5.2 × 8.48 × 3.87 in.)
Operating temperature
0 to 40 °C
IP rating
IP50 (up-facing); IP51 (horizontal); IP53 (down); IP66 with shaft seal accessory
