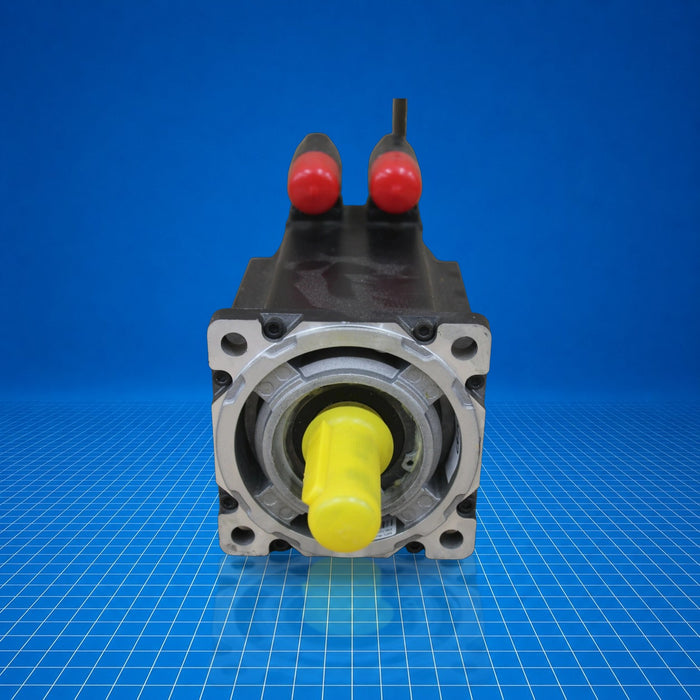

MPL-B4530F-MK72AA Allen-Bradley

Name: MPL-B4530F-MK72AA Allen-Bradley
Brand: Allen Bradley
SKU: MPL-B4530F-MK72AA
Price: 2362.5 USD
Availability: InStock

$2,362.50 - $2,700.00

$2,362.50

$2,362.50 - $2,700.00

$2,362.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (4) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The MPL-B4530F-MK72AA is an Allen-Bradley MP-Series 480 V AC low-inertia brushless rotary servo motor featuring a 130 mm (Frame Size 45) outer diameter and 76.2 mm (Stack Length 30) magnet stack. It is equipped with a multi-turn high-resolution absolute encoder, a keyless shaft extension, and a 7-pin SpeedTEC DIN connector (right-angle, 180° rotatable). It is typically applied in embedded motion control systems providing precise torque in constrained spaces, such as packaging machinery, indexing tables, and compact automation platforms. MPL-B4530F-MK72AA interfaces with Allen-Bradley Kinetix or MP motion drive platforms.

Best Suited For

Integration with Kinetix or MP-Series servo drives
Applications needing multi-turn absolute feedback
Compact installations requiring low-inertia high-torque motors
Servo applications at 3000 RPM operation

Voltage

460 V AC

Frame diameter

130 mm

Stack length

76.2 mm

Rated speed

3000 RPM

Feedback

Multi-turn absolute encoder

Technical Specifications

I/O & Electrical

Armature voltage

460 V AC

Rated speed

3000 RPM

Continuous stall torque

8.25 Nm (73 lb-in)

Peak stall torque

20.3 Nm (180 lb-in)

Continuous stall current

7.0 A (peak)

Peak stall current

21.0 A (peak)

Communication & Power

Connector type

7-pin SpeedTEC DIN, right-angle, 180° rotatable

Feedback type

Multi-turn high-resolution absolute encoder

Physical & Environmental

Frame size (diameter)

130 mm

Stack length

76.2 mm

Shaft extension

Keyless
