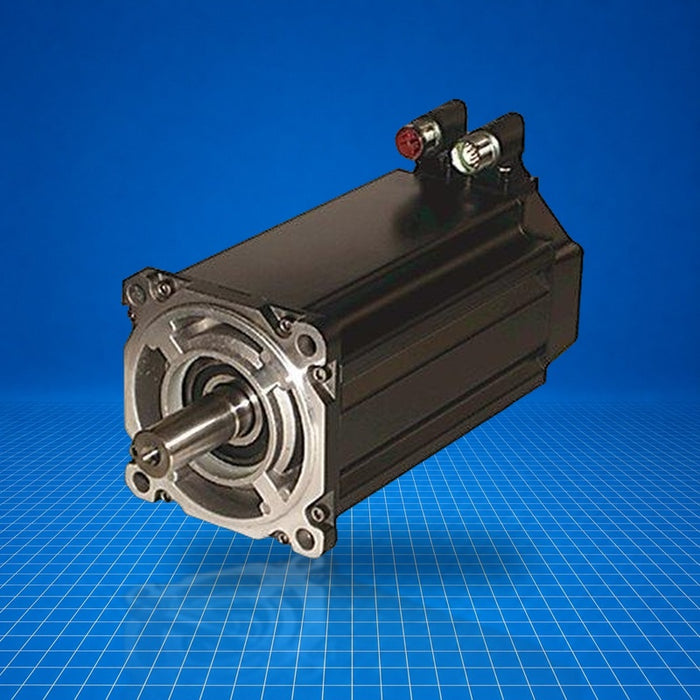

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.

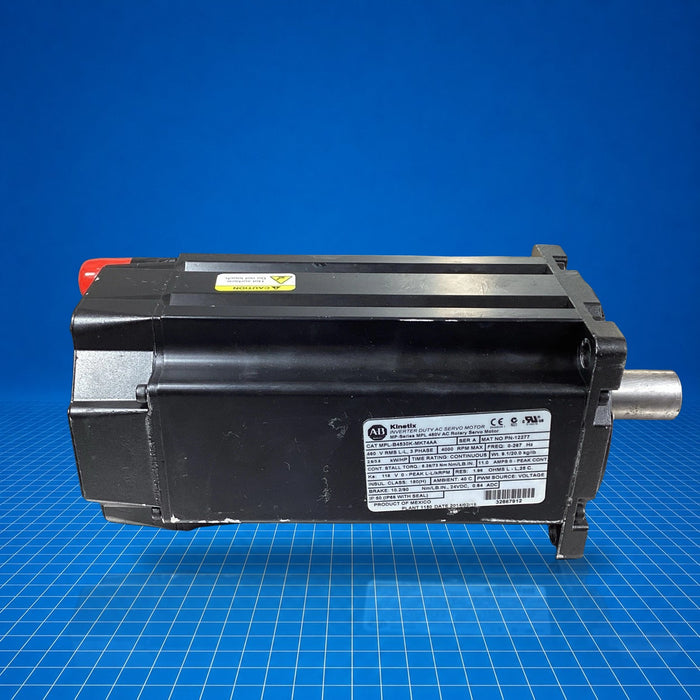

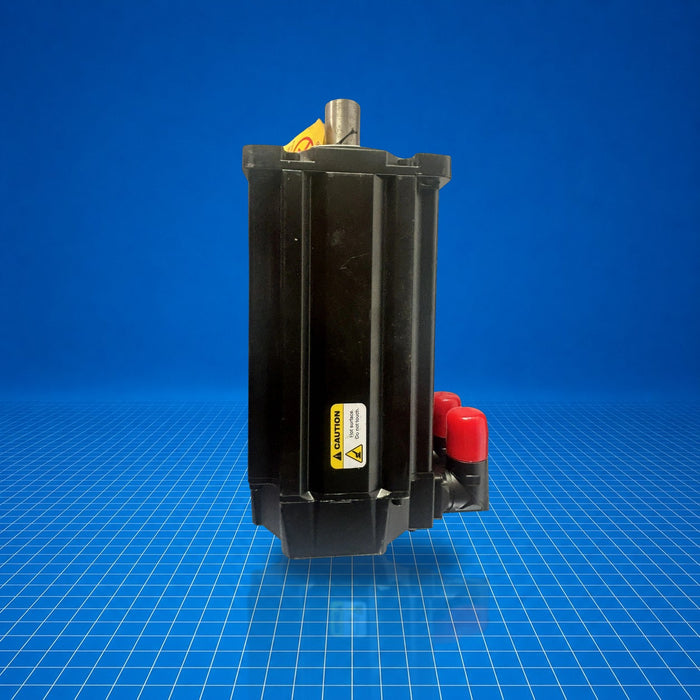

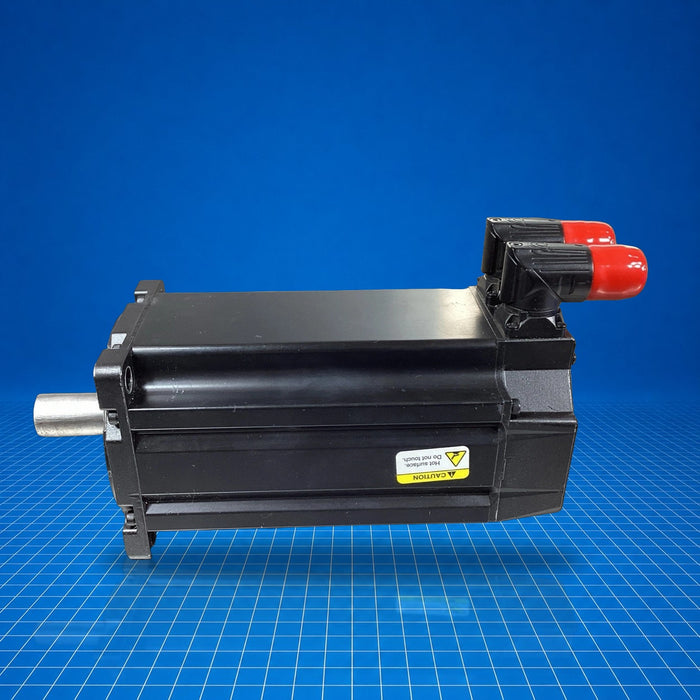

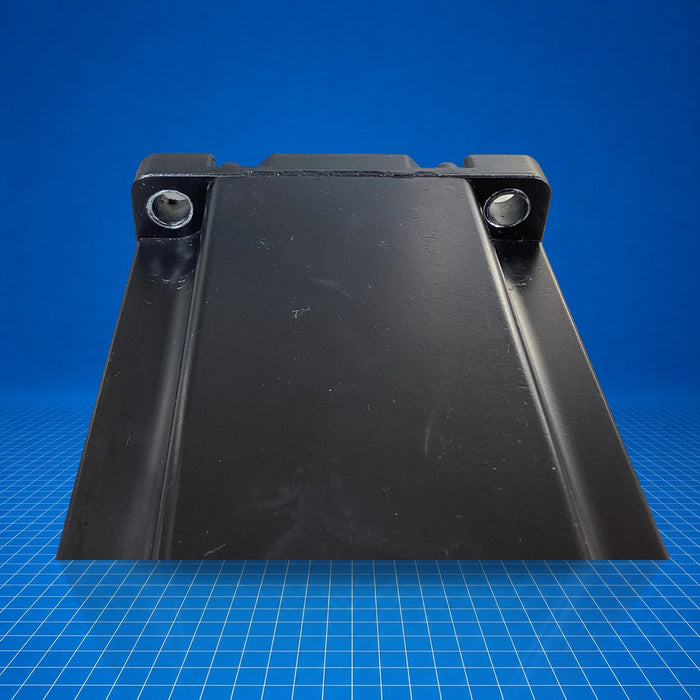

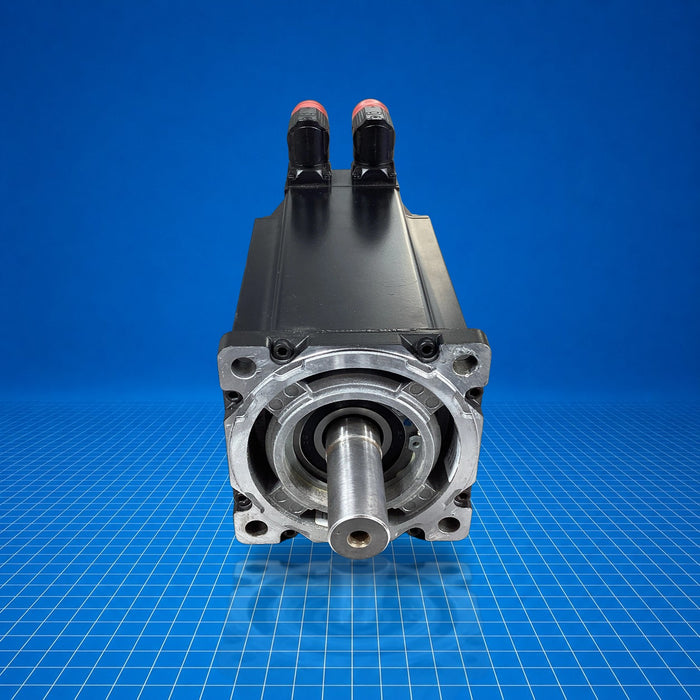

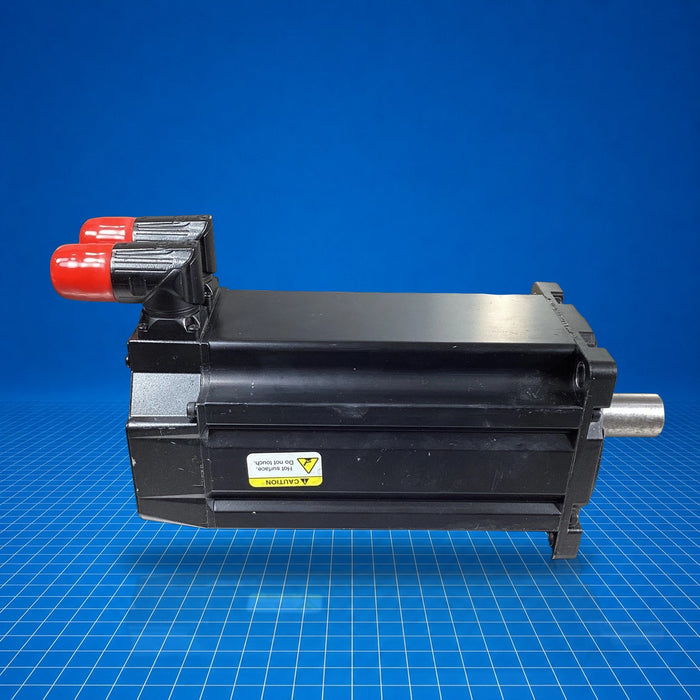

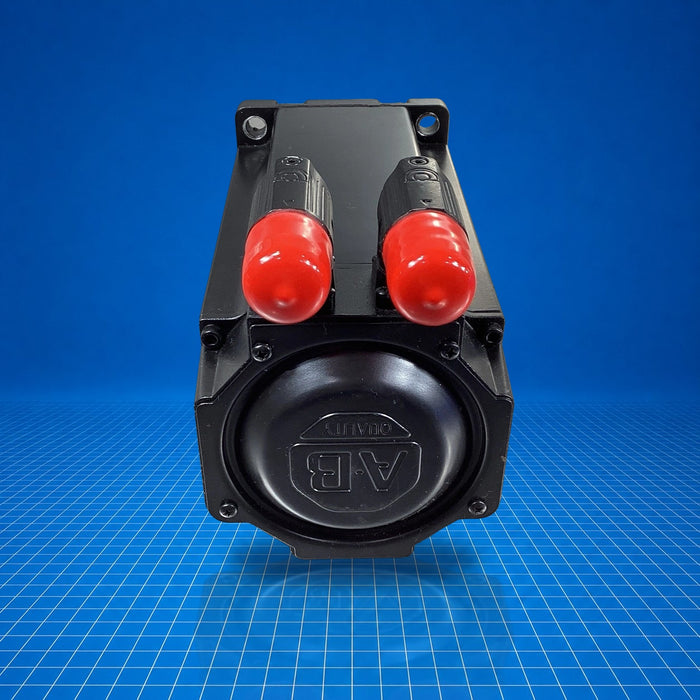

MPL-B4530K-MK74AA Allen-Bradley
Original price
$2,700.00
-
Original price
$3,510.00
Original price
$2,700.00
$2,700.00
-
$3,510.00
Current price
$2,700.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MPL-B4530K-MK74AA is a Bulletin MPL low-inertia brushless servo motor by Allen-Bradley, designed for 460 V AC operation. It features a 130 mm frame and 76.2 mm stack length, rated at 4000 RPM with multi-turn high-resolution absolute encoder feedback, right-angle SpeedTEC DIN connector, and 24 V DC brake. In a motion control system, this servo motor delivers precise position and speed control typical in machine tools, robotics, and indexing conveyors. MPL-B4530K-MK74AA supports industrial motion networks requiring accurate feedback and compact, lightweight motor solutions.
Best Suited For
- Mid-power motion axes with multi-turn feedback
- Machine tools requiring 4000 RPM servo control
- Applications needing right-angle SpeedTEC connector
- Systems integrating 24 V DC "on-brake" safety stop
Voltage
460 V AC
Frame size
130 mm
Stack length
76.2 mm
Max speed
4000 RPM
Feedback type
Multi-turn absolute encoder
Technical Specifications
I/O & Electrical
Voltage (line-to-line)
460 V AC (nominal)
Continuous stall torque
8.25 N·m (73 lb-in.)
Peak stall torque
20.3 N·m (180 lb-in.)
Continuous stall current
11.0 A rms
Peak stall current
31.0 A rms
Poles
8
Communication & Power
Brake voltage
24 V DC
Signal connector
SpeedTEC DIN, right-angle, 180° rotatable
Physical & Environmental
Frame diameter
130 mm
Magnet stack length
76.2 mm (3.0 in.)
Max speed
4000 RPM
