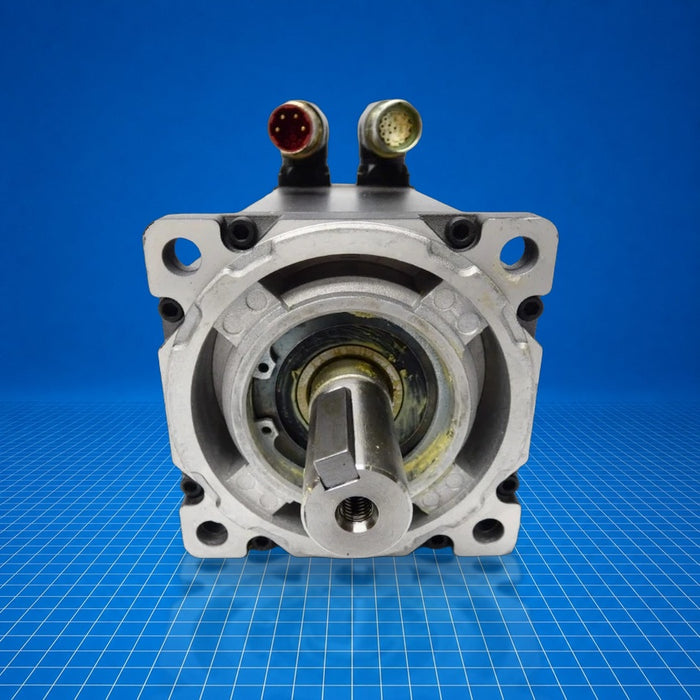

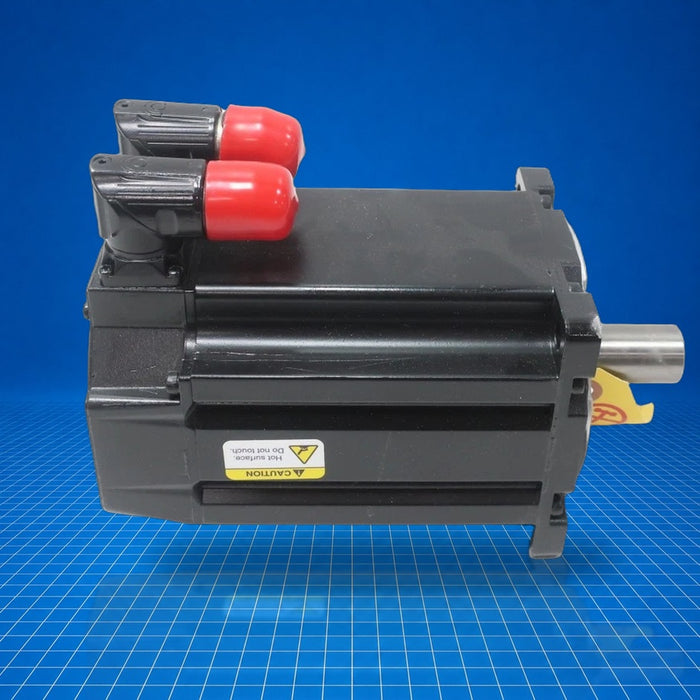

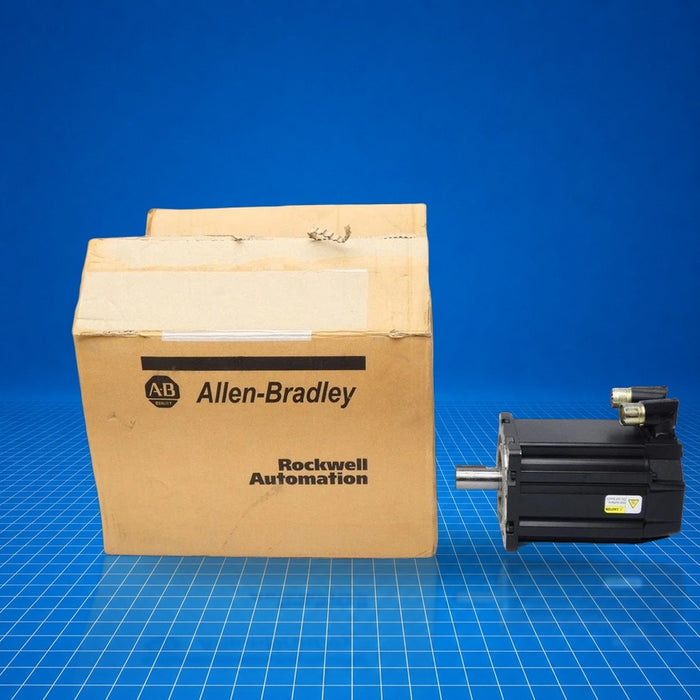

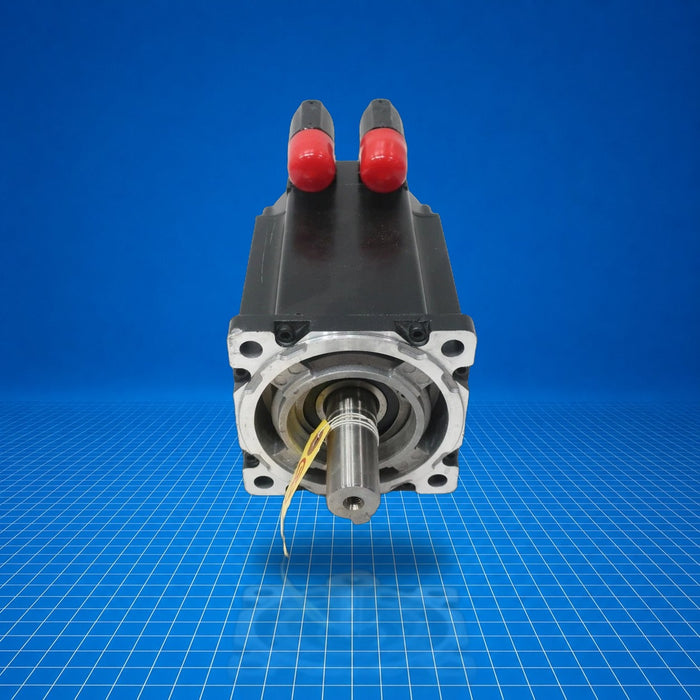

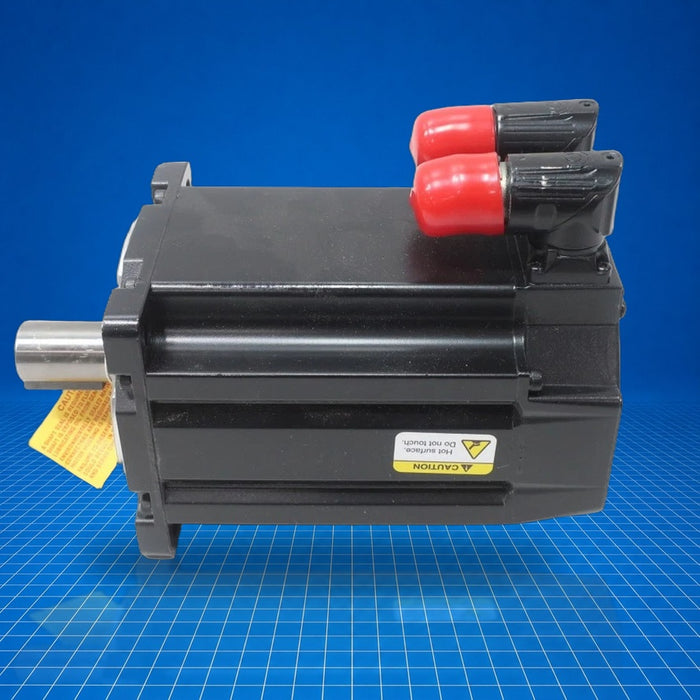

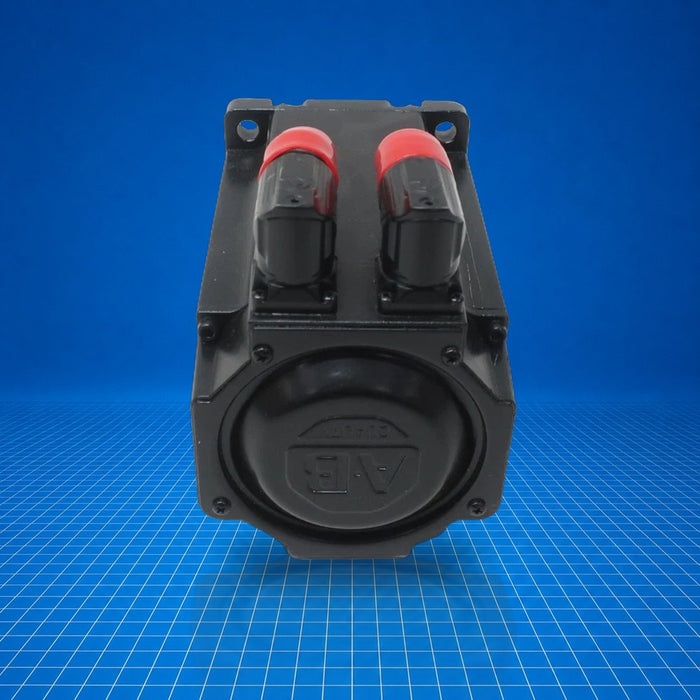

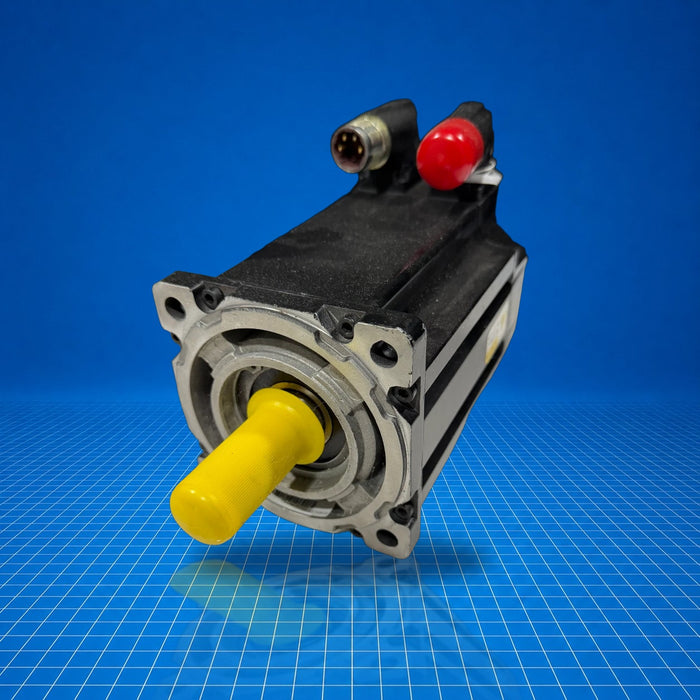

MPL-B4530K-SJ72AA Allen-Bradley
Original price
$3,402.00
-
Original price
$3,968.65
Original price
$3,402.00
$3,402.00
-
$3,968.65
Current price
$3,402.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
The MPL-B4530K-SJ72AA is an Allen-Bradley MP-Series low-inertia brushless servo motor, 460 V AC class, frame size 45 (130 mm), stack length 30 (76.2 mm), rated for 4000 RPM with a single-turn high-resolution encoder. It integrates into mid-voltage servo drive systems (e.g., PowerFlex 750-Series, Kinetix 5500/6000) for precise positioning and motion control in industrial automation, such as machine tools, robotic articulations, and packaging equipment. MPL-B4530K-SJ72AA offers keyed shaft mounting and SpeedTEC DIN connector interface.
Best Suited For
- Integration with PowerFlex 750-Series AC drives
- Use in Kinetix 5500 or 6000 servo drive systems
- Applications requiring 4000 RPM constant speed control
- Motion systems needing high-resolution single-turn encoder feedback
Voltage class
460 V AC
Rated speed
4000 RPM
Frame / stack
130 mm / 76.2 mm
Feedback
Single-turn high-resolution encoder
Technical Specifications
I/O & Electrical
Voltage
460 V AC (line-line rms)
Rated current
7.8 A (rms) - continuous stall current
Peak current
19.1 A (rms)
Stall torque (continuous)
8.25 N·m
Motor rated power
2.6 kW
Poles
8
Communication & Power
Connector type
SpeedTEC DIN, right angle, 180° rotatable
Physical & Environmental
Frame size
130 mm
Stack length
76.2 mm
Shaft
Keyed shaft extension, no brake
