MPL-B4540F-MJ74AA Allen-Bradley

Name: MPL-B4540F-MJ74AA Allen-Bradley
Brand: Allen Bradley
SKU: MPL-B4540F-MJ74AA
Price: 1712.5 USD
Availability: InStock

$0.00 - $1,712.50

$1,712.50

$0.00 - $1,712.50

$1,712.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

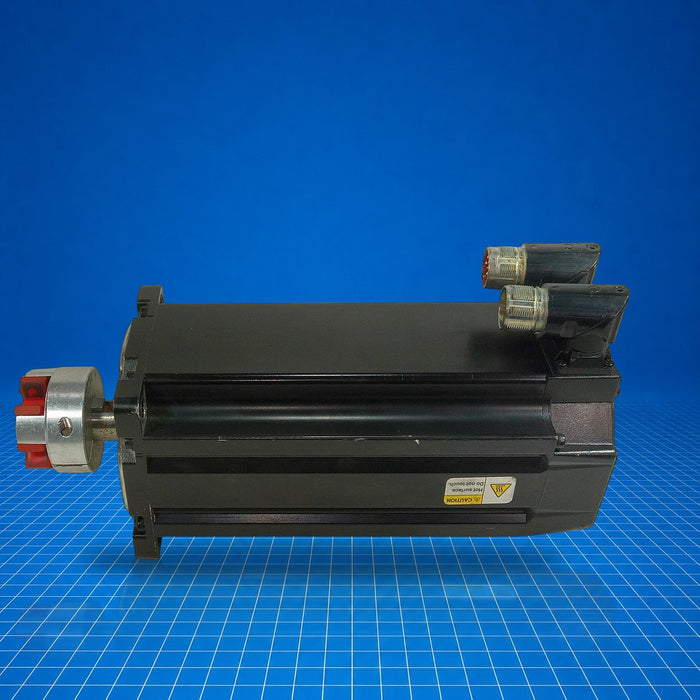

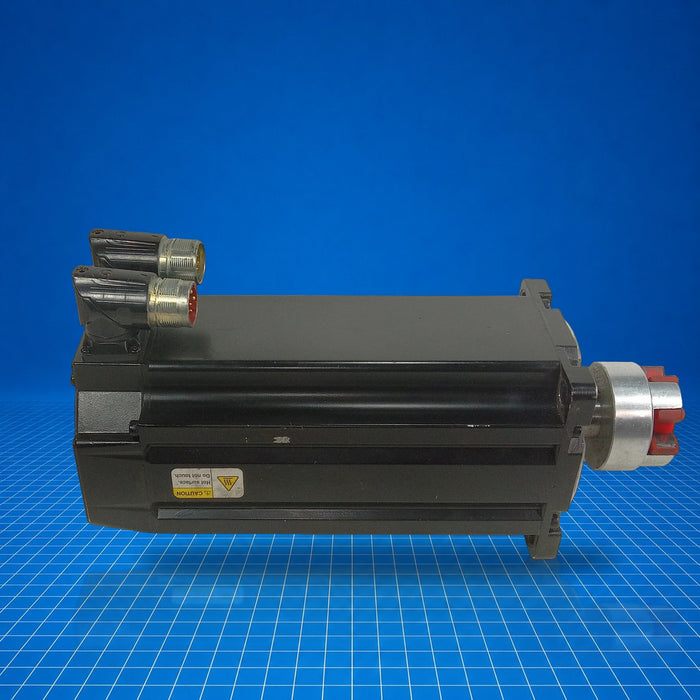

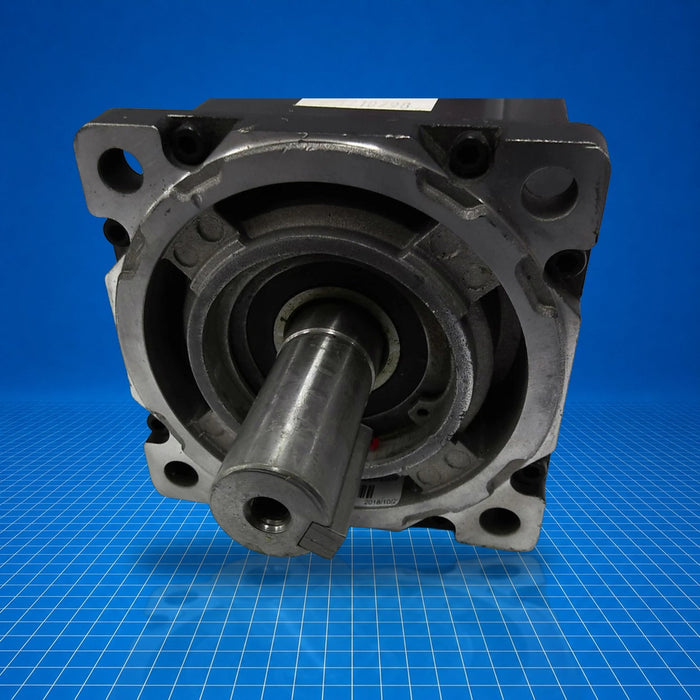

The MPL-B4540F-MJ74AA is an Allen-Bradley MP-Series low-inertia brushless servo motor designed for use with 400 VAC-class (460 V) drive systems. Frame size 45 (130 mm), stack length 40 (101.6 mm), rated speed 3000 rpm, multi-turn high-resolution encoder for absolute feedback, keyed shaft extension, right-angle SpeedTEC DIN connector (rotatable 180°), 24 V DC brake, IEC metric mounting, free mounting holes (Type FF) provide flexible installation. MPL-B4540F-MJ74AA integrates into motion control systems requiring precise positioning and dynamic response.

Best Suited For

Kinetix 6000 drives (400 V-class)
high-precision positioning on machine axes
applications requiring built-in brake for hold-in applications
compact installation with rotatable connector
integrated absolute feedback for motion synchronization

Voltage

460 V AC

Rated speed

3000 rpm

Feedback

Multi-turn high-resolution encoder

Brake

24 V DC

Connector

SpeedTEC DIN, right-angle, 180° rotatable

Technical Specifications

I/O & Electrical

Voltage (armature)

460 V AC

Brake voltage

24 V DC

Physical & Environmental

Frame size

130 mm

Stack length

101.6 mm

Rated speed

3000 rpm

Shaft extension

Keyed

Connector

SpeedTEC DIN, right-angle, 180° rotatable

Mounting

IEC metric, free mounting holes (Type FF)
