MPL-B4540F-SJ74AA Allen-Bradley
Original price
$3,299.98
-
Original price
$3,600.00
Original price
$3,299.98
$3,299.98
-
$3,600.00
Current price
$3,299.98
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

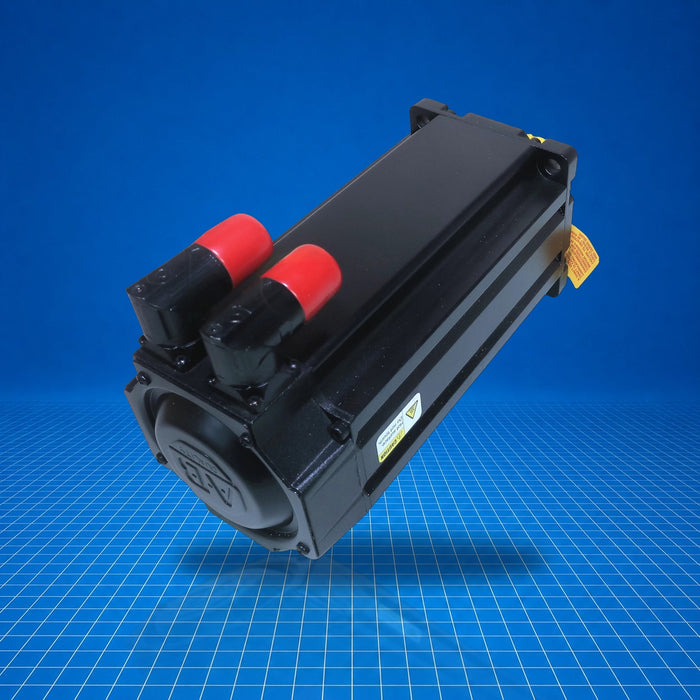

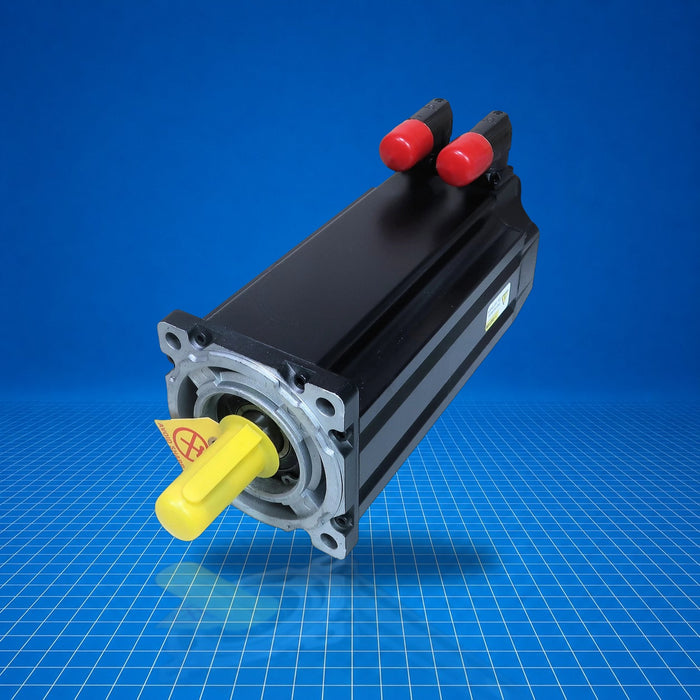

The MPL-B4540F-SJ74AA is a Bulletin MPL low-inertia brushless rotary servo motor from the Allen-Bradley MP-Series. Designed for 460 V AC input, it features a 130 mm (frame size 45) diameter with a 101.6 mm (stack length 40) magnet assembly and delivers a maximum speed of 3000 RPM. It includes a single-turn high-resolution encoder, keyed shaft extension, right-angle SpeedTEC DIN quick-connect, and a 24 V DC brake. It is commonly used in industrial motion control tasks such as indexing, packaging axes, or small machine automation.
Best Suited For
- Compact motion axes where low rotor inertia is required
- Indexed positioning in packaging or assembly lines
- Replacement in MP-Series servo systems
- Applications requiring single-turn feedback and DC braking
Armature Voltage
460 V AC
Max Speed
3000 RPM
Feedback
Single-turn high-resolution encoder
Brake Option
24 V DC brake
Connector
Right-angle SpeedTEC DIN (180° rotatable)
Technical Specifications
I/O & Electrical
Input voltage
460 V AC
Communication & Power
Feedback type
Single-turn high-resolution encoder
Brake supply
24 V DC
Physical & Environmental
Frame size
130 mm (45)
Magnet stack length
101.6 mm (40)
Max speed
3000 RPM
Shaft extension
Keyed shaft extension
Connector type
SpeedTEC DIN connector, right-angle, 180° rotatable
Mounting
IEC metric, free mounting holes (Type FF)
