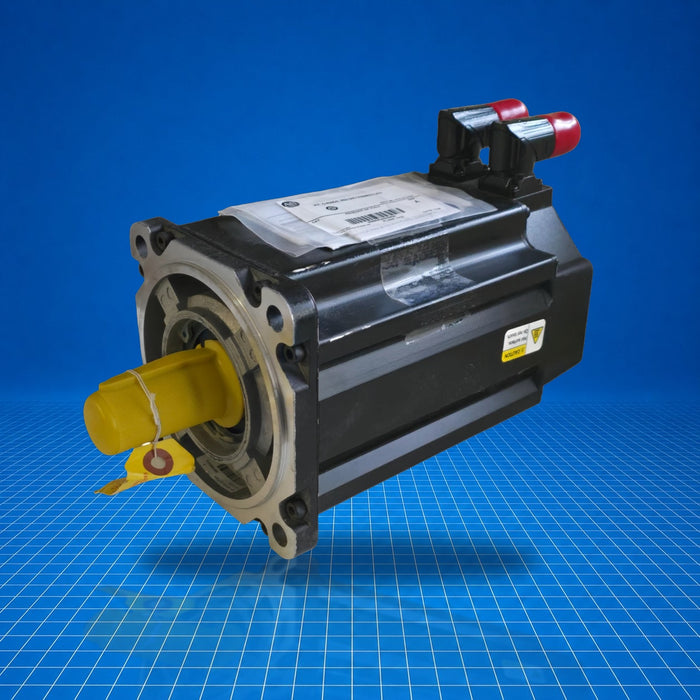

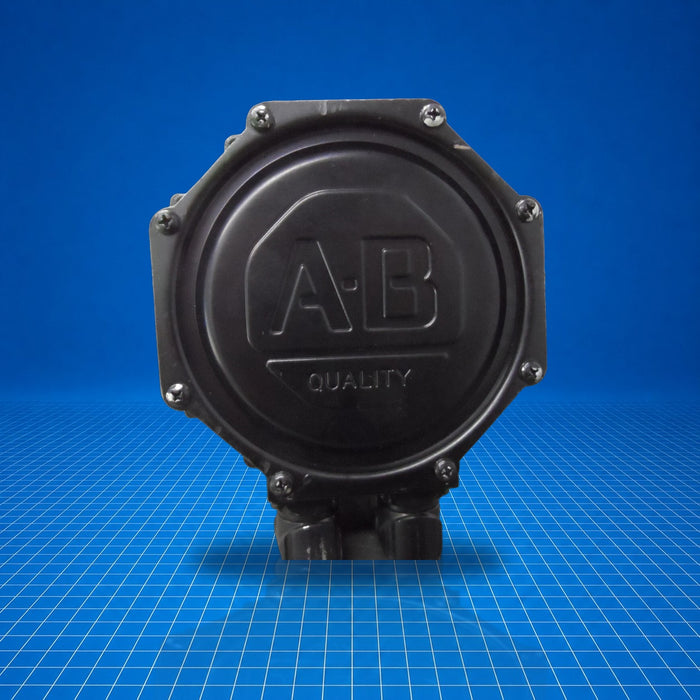

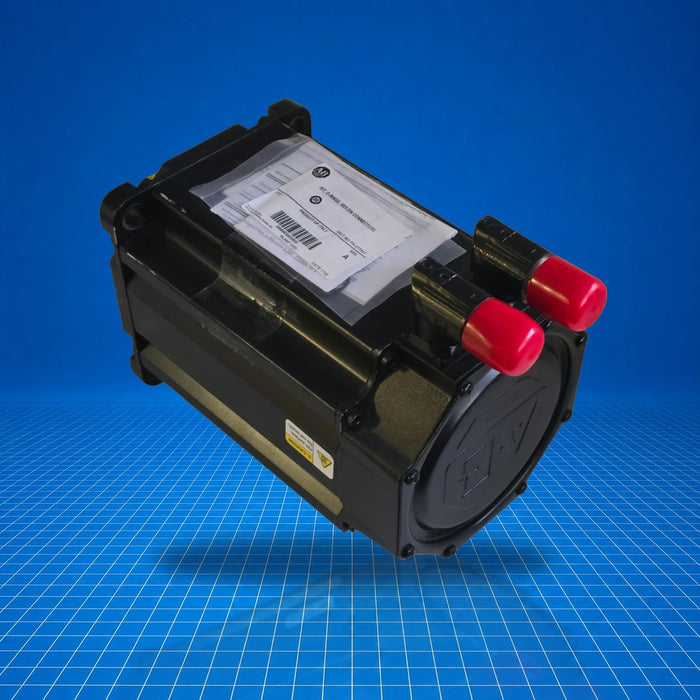

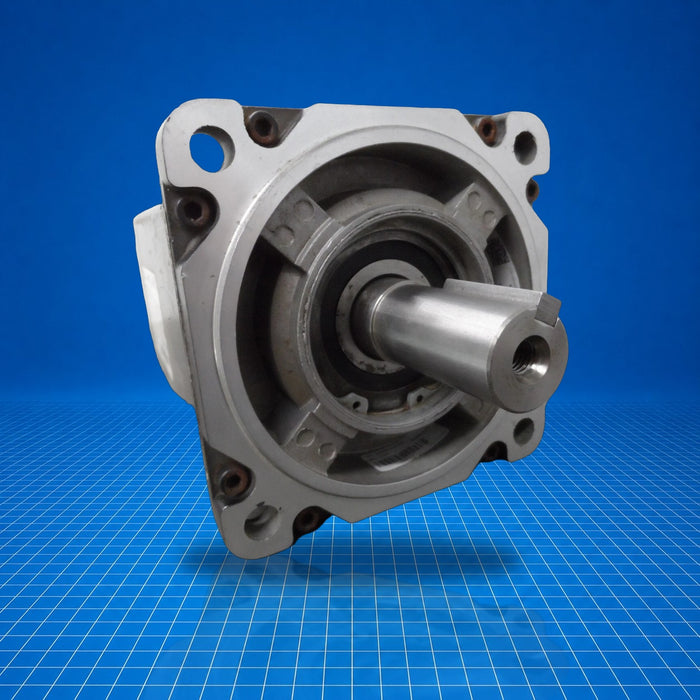

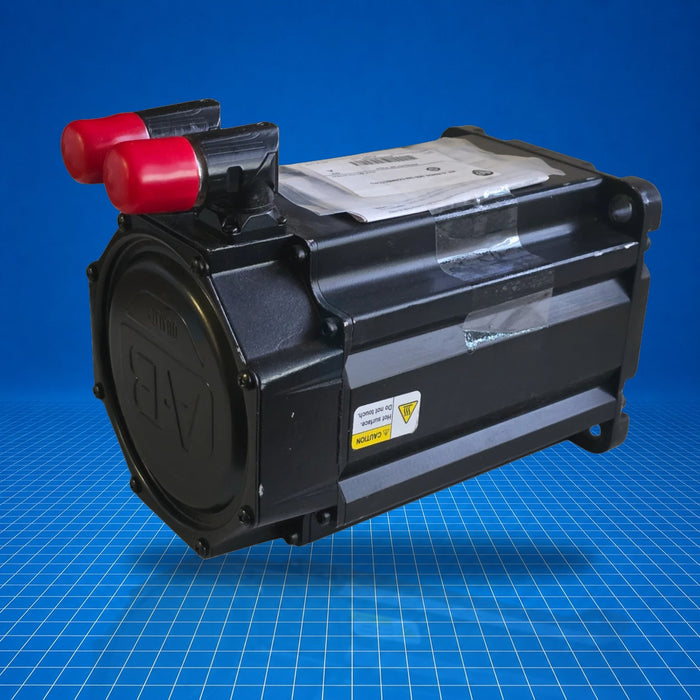

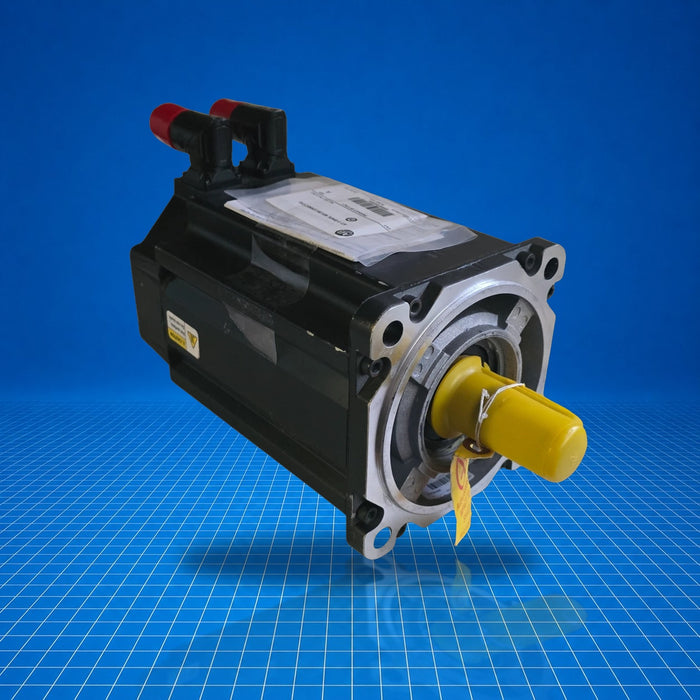

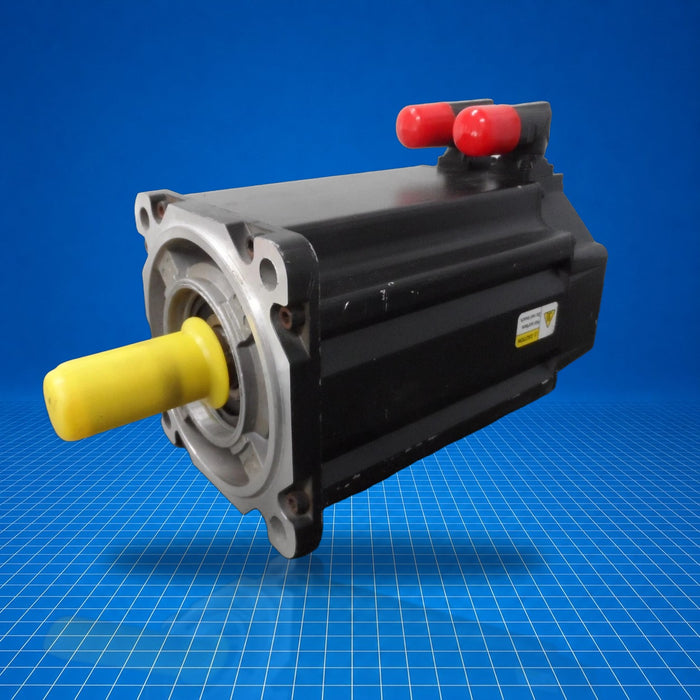

Product image is representative; revision or series may vary.
Contact us to request a specific version.
Contact us to request a specific version.
MPL-B540K-SJ72AA Allen-Bradley
Original price
$1,367.50
-
Original price
$4,287.50
Original price
$1,367.50
$1,367.50
-
$4,287.50
Current price
$1,367.50
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview
MPL-B540K-SJ72AA is an Allen-Bradley MP-Series low-inertia brushless AC rotary servo motor, 460 V armature, frame size 5 (165 mm), stack length 40 (101.6 mm), rated 4000 RPM, single-turn high-resolution encoder, keyed shaft, SpeedTEC DIN connector (right angle, 180° rotatable), no brake. It functions as a motion axis actuator within servo control systems, typically paired with PowerFlex or Kinetix drives for positioning or speed control in machine tools, packaging, or assembly equipment. Part number MPL-B540K-SJ72AA.
Best Suited For
- High-speed positioning axes (4000 RPM)
- Integration with PowerFlex 750-series or Kinetix drives
- Applications requiring compact, low-inertia rotary servos
- Retrofitting or OEM machine motion control
Voltage
460 V
Frame Size
165 mm
Rated Speed
4000 RPM
Feedback
Single-turn high-resolution encoder
Connector
SpeedTEC DIN, right-angle, 180° rotatable
Technical Specifications
I/O & Electrical
Input voltage (armature)
460 V
Communication & Power
Connector type
SpeedTEC DIN, right-angle, 180° rotatable
Physical & Environmental
Frame size
165 mm (6.50 in.)
Stack length
101.6 mm (4.0 in.)
Shaft type
Keyed shaft extension
Rated speed
4000 RPM
