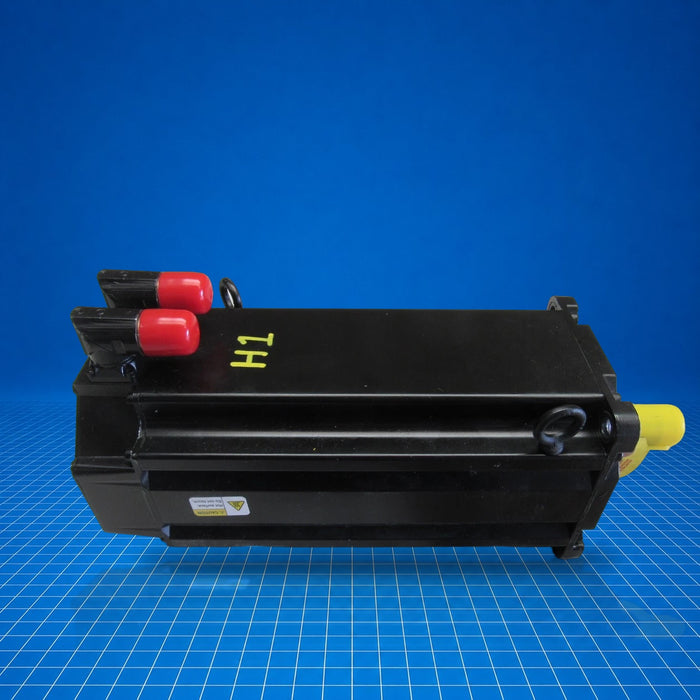

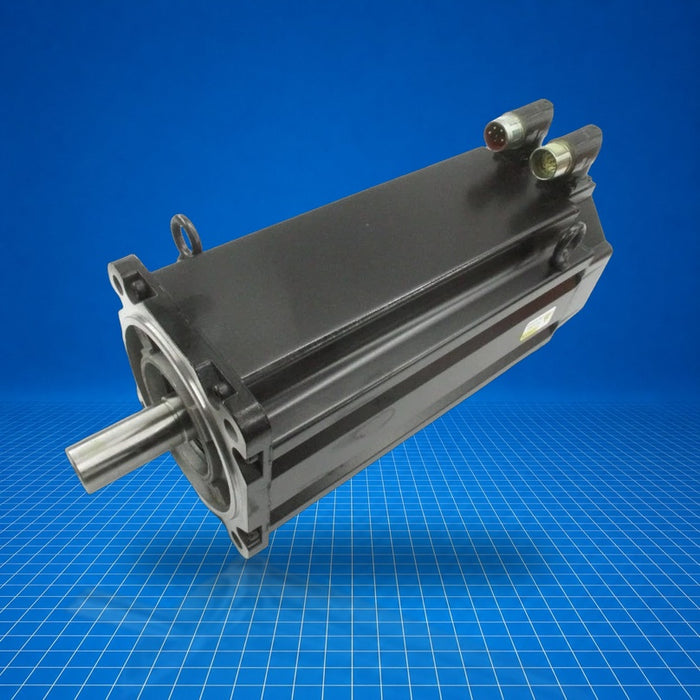

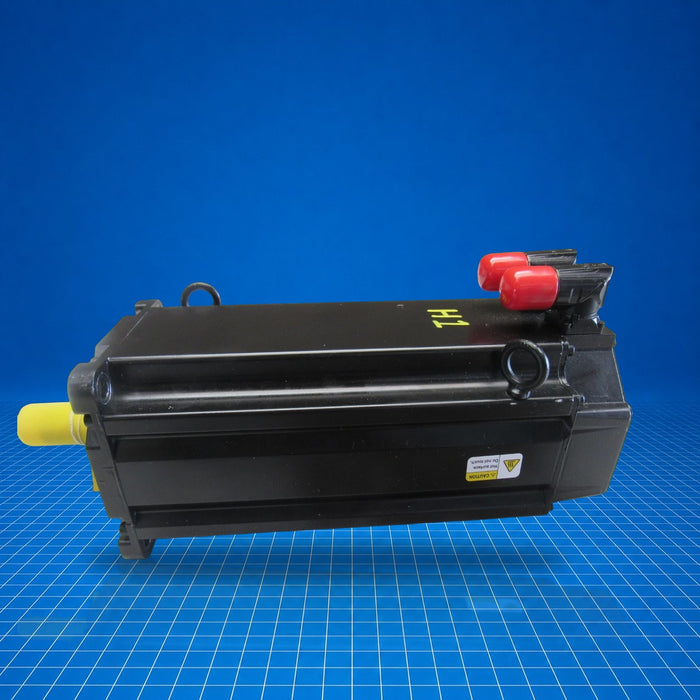

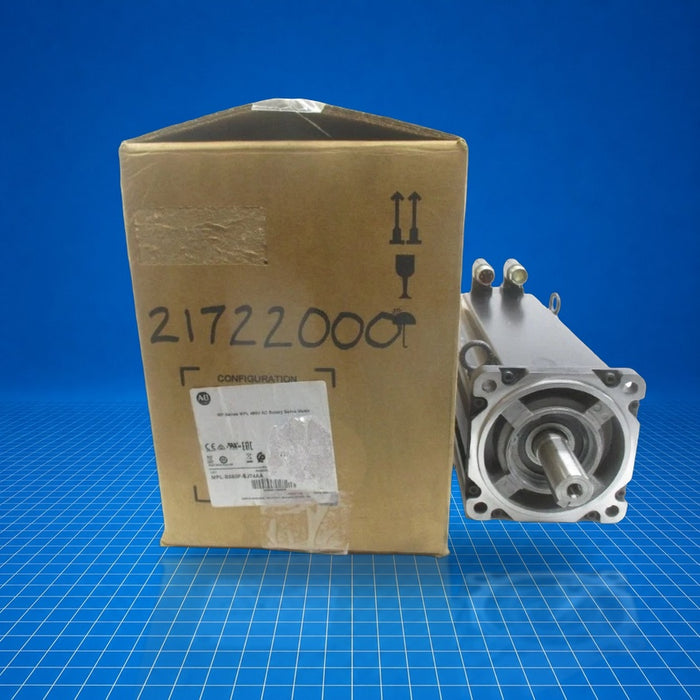

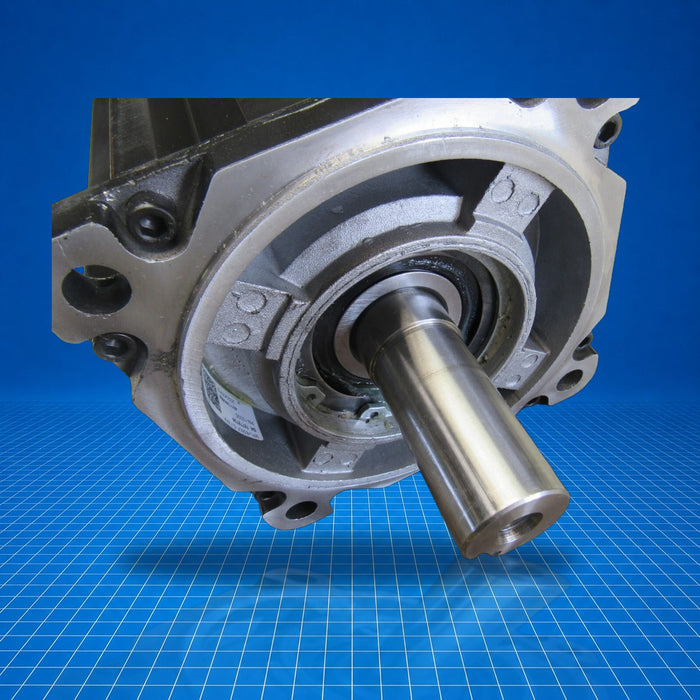

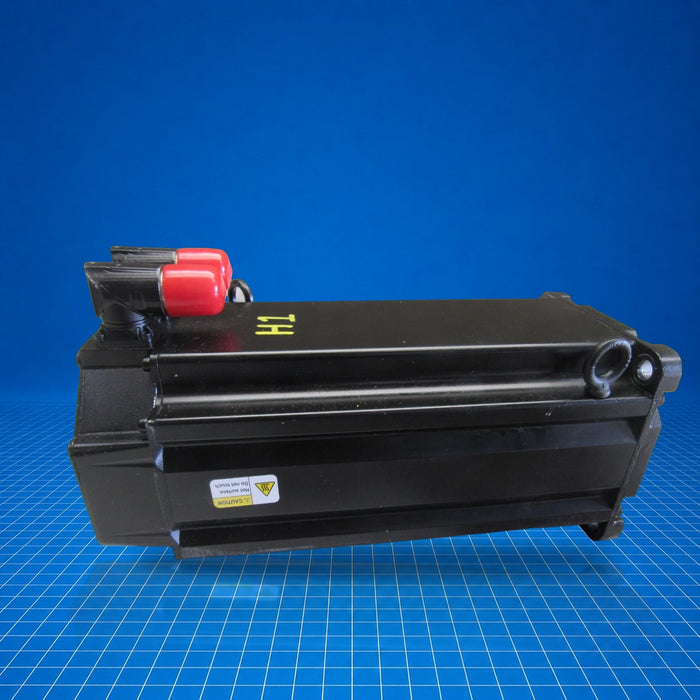

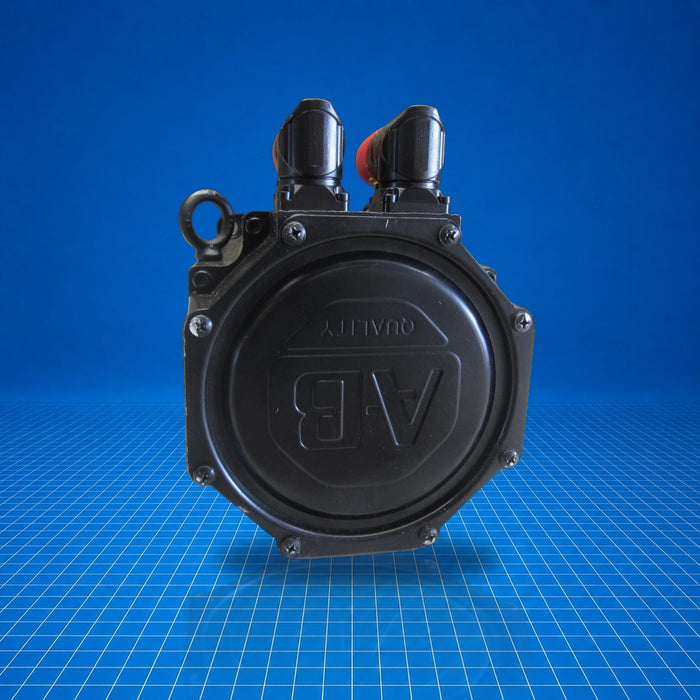

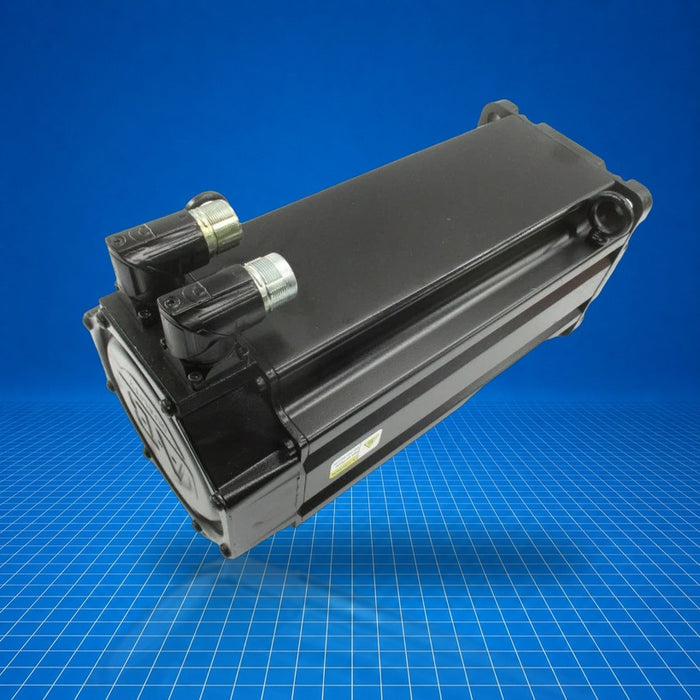

MPL-B560F-SJ74AA Allen-Bradley

Name: MPL-B560F-SJ74AA Allen-Bradley
Brand: Allen Bradley
Price: 5999.99 USD
Availability: InStock

$0.00 - $5,999.99

$5,999.99

$0.00 - $5,999.99

$5,999.99

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The MPL-B560F-SJ74AA is a member of the Allen-Bradley MP-Series low-inertia brushless 480 V AC rotary servo motors. It integrates a 165 mm frame and 152.4 mm stack length, delivering 3000 RPM using a single-turn high-resolution encoder and a 24 V DC brake. In motion control systems, it provides precise positioning and rapid response in applications such as machine tool axes, packaging automation, and robotic manipulators. MPL-B560F-SJ74AA performs as a core actuation element within industrial servo architectures.

Best Suited For

High-precision positioning axes
Packaging machinery
Robotic arm joints
Legacy Kinetix 5700 systems

Rated voltage (armature)

460 V AC

Rated speed

3000 RPM

Feedback type

Single-turn high-resolution encoder

Brake voltage

24 V DC

Frame size (stack length)

165 mm × 152.4 mm

Technical Specifications

I/O & Electrical

Rated voltage

460 V AC

Rated speed

3000 RPM

Continuous stall current

20.6 A (0-pk)

Peak stall current

68.0 A (0-pk)

Continuous stall torque

26.8 N•m

Peak stall torque

67.8 N•m

Power output

5.52 kW

Communication & Power

Brake voltage

24 V DC

Connector type

SpeedTEC DIN, right-angle, 180° rotatable

Physical & Environmental

Frame size

165 mm

Magnet stack length

152.4 mm

Frame material/mounting

IEC metric, free mounting holes

Certifications

Australian RCMMorocco DOC

Certified to Australian RCM and Morocco DOC as of May 19, 2026.
