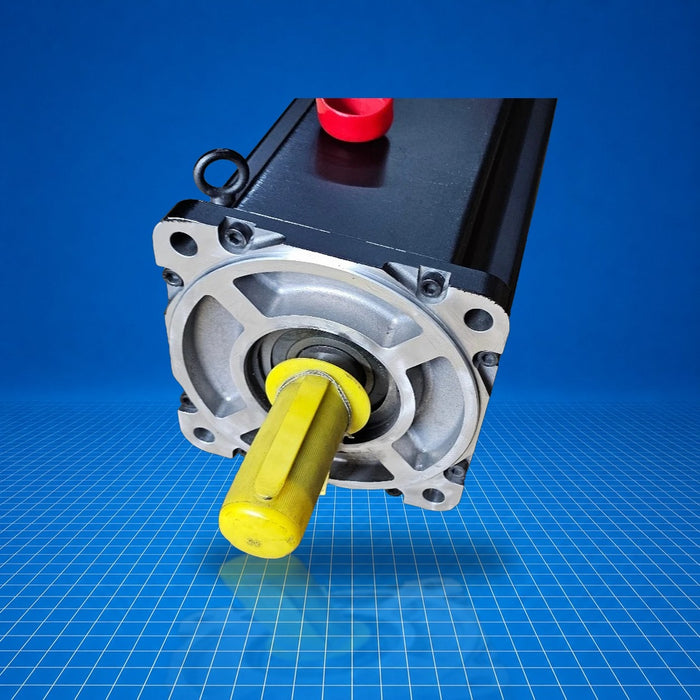

MPL-B680D-MJ74AA Allen-Bradley

Name: MPL-B680D-MJ74AA Allen-Bradley
Brand: Allen Bradley
Price: 14848.5 USD
Availability: InStock

$0.00 - $14,848.50

$14,848.50

$0.00 - $14,848.50

$14,848.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (2) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The MPL-B680D-MJ74AA is an Allen-Bradley MP-Series low-inertia brushless servo motor designed for precision motion control in industrial automation. It operates on 460 V AC and features a 215 mm frame with an 8 in magnetic stack and multi-turn high-resolution (absolute) feedback. With 2000 RPM rated speed and integrated SpeedTEC DIN right-angle connector plus 24 V DC brake, the MPL-B680D-MJ74AA serves as a motion actuator in servo-driven systems such as CNC, robotics, and indexing machinery.

Best Suited For

Servo-driven positioning in CNC machines
Robotic axis control
Indexing applications on production lines
High-precision motion feedback loops

Voltage class

460 V AC

Frame size

215 mm

Rated speed

2000 RPM

Feedback

Multi-turn high-resolution (absolute) encoder

Brake

24 V DC brake

Technical Specifications

I/O & Electrical

Voltage class

460 V AC

Rated speed

2000 RPM

Rated output (kW)

9.3 kW

System continuous stall current

34.0 A (pk)

System continuous stall torque

62.8 N·m (556 lb·in)

System peak stall current

94.0 A (pk)

System peak stall torque

154.2 N·m (1365 lb·in)

Communication & Power

Connectors

SpeedTEC DIN, right-angle, 180° rotatable

Brake voltage

24 V DC

Physical & Environmental

Frame size

215 mm (8.46 in)

Magnetic stack length

203.2 mm (8.0 in)

Shaft extension

Keyed shaft extension

Mounting

IEC metric, free mounting holes (Type FF)
