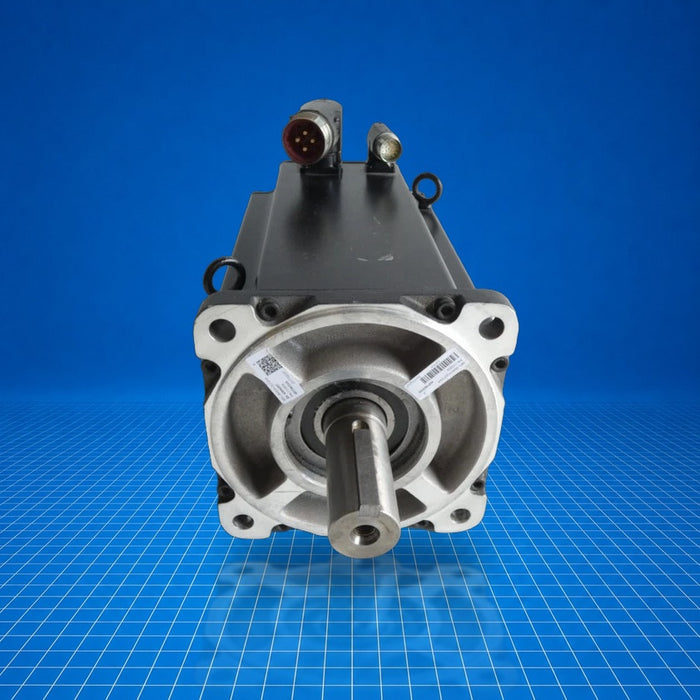

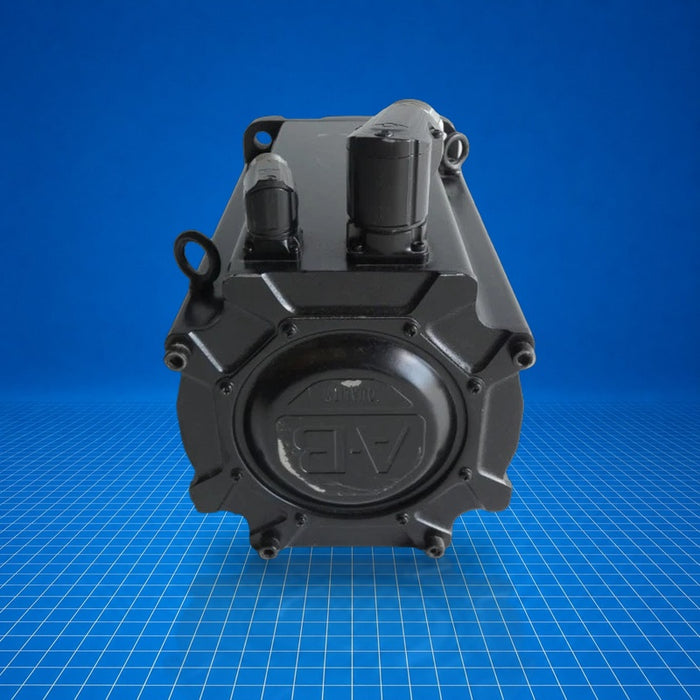

MPL-B680H-SJ72AA Allen-Bradley

Name: MPL-B680H-SJ72AA Allen-Bradley
Brand: Allen Bradley
SKU: MPL-B680H-SJ72AA
Price: 4510.5 USD
Availability: InStock

$4,510.50 - $7,857.00

$4,510.50

$4,510.50 - $7,857.00

$4,510.50

Ships today if ordered by 1 PM CST

Overnight shipping available

Qty Available: (7) ✓ Verified Stock every 24hrs

Questions? (833) 800-7748

All products listed are sold by PLC Department, an independent supplier — not an authorized Allen Bradley distributor. Covered by our 1-year warranty. By purchasing you acknowledge our full disclaimer. Read & agree ↓

Ships from Texas, USA

Same-day by 1 PM CST

Tested & inspected

Every unit, before it ships

1-year warranty

Backed direct by us

30-day returns

Hassle-free RMA

Stock verified / 24 hrs

Real-time availability

Photos on request

Your exact unit, ~5 min

Trusted By

Product Details

Description · Specifications · Product Overview

Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.

Product Overview

The MPL-B680H-SJ72AA is part of Allen-Bradley's MP-Series MPL low-inertia brushless rotary servo motors, designed for 460 V (480 V nominal) industrial motion control systems. In a control architecture it provides precise position and velocity control via single-turn high-resolution feedback, suited to synchronous applications requiring agile response. Standard in Kinetix servo systems and similar drive platforms, it is typically applied in machine tools, packaging machinery, pick-and-place systems, and other high-precision motion tasks. MPL-B680H-SJ72AA is optimized for compact machine integration and dynamic performance.

Best Suited For

460 V Kinetix servo packages
Applications requiring 3500 rpm nominal speed
Systems with single-turn high-resolution encoder feedback
On-machine installations with constrained space

Voltage class

460 V (480 V nominal)

Rated speed

3500 rpm

Continuous stall torque

60 Nm (531 lb-in)

Peak stall torque

146.9 Nm (1300 lb-in)

Technical Specifications

I/O & Electrical

Continuous stall current

51 A (0-peak)

Peak stall current

140 A (0-peak)

Communication & Power

Connectors

SpeedTEC DIN connector, right-angle, 180° rotatable

Physical & Environmental

Frame size

215 mm (8.46 in)

Magnet stack length

203.2 mm (8.0 in)

Rotor inertia

0.00775 kg·m² (0.0685 lb-in-s²)
