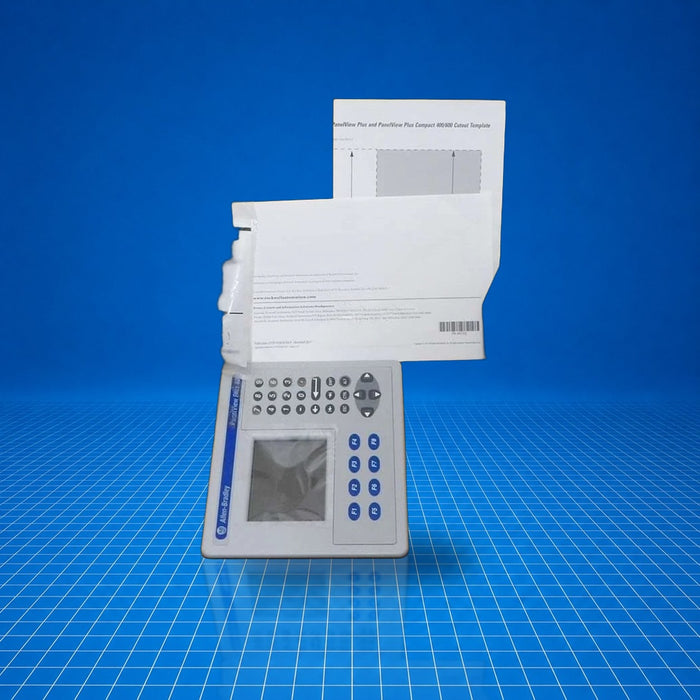

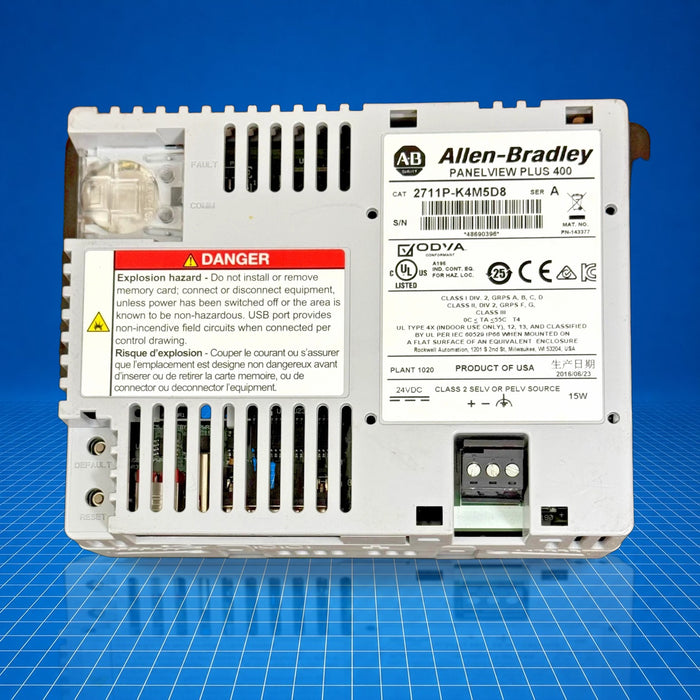

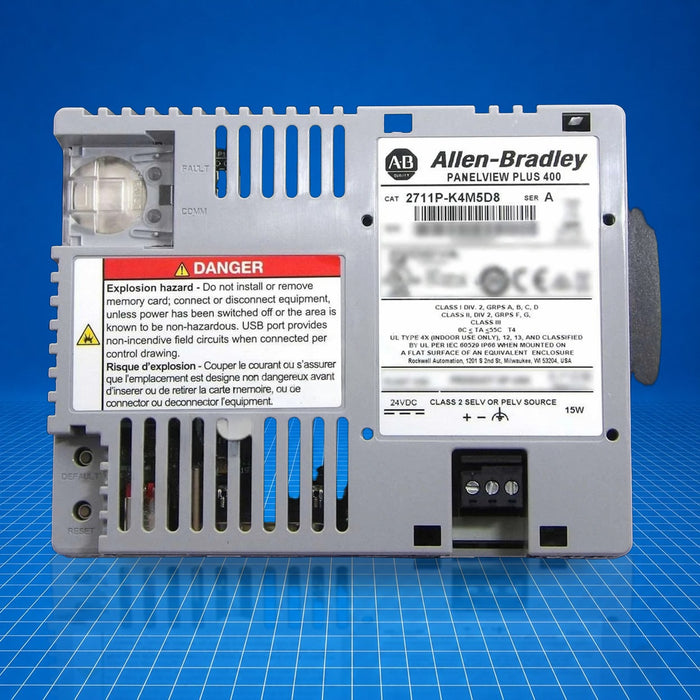

2711P-K4M5D8 Allen-Bradley
Original price
$0.00
-
Original price
$6,825.00
Original price
$6,825.00
$0.00
-
$6,825.00
Current price
$6,825.00
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

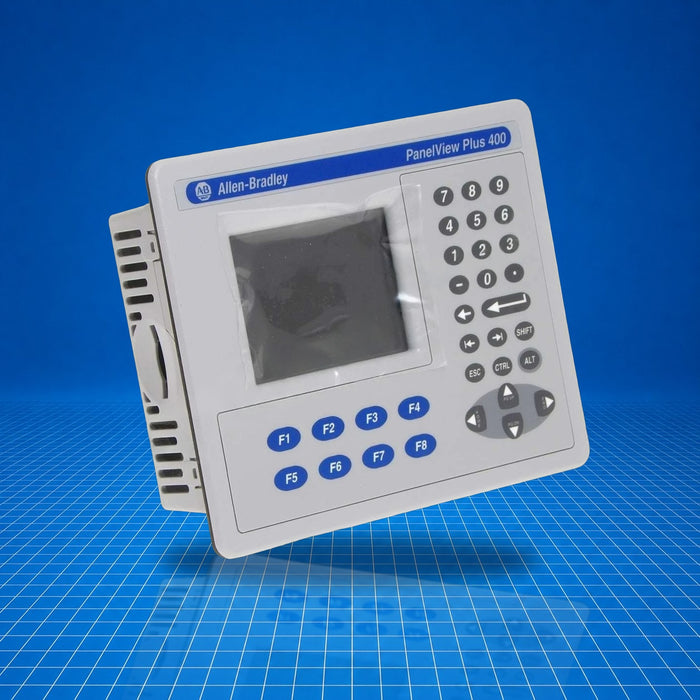

The 2711P-K4M5D8 is an Allen-Bradley PanelView Plus 6, Bulletin 400 grayscale operator terminal with keypad input and RS-232 serial communication, powered by 18…30 V DC. It runs Windows CE 6.0 and serves as a Human-Machine Interface (HMI) for presenting process values, recipes, messages, and file transfer via SD or USB. Typical applications include machine-level control panels, retrofit operator stations, and basic process monitoring tasks. 2711P-K4M5D8 provides essential visualization with minimal overhead.
Best Suited For
- Machine-level operator interface in existing PanelView Plus 6 deployments
- Environments requiring keypad-only grayscale display for basic interactions
- Retrofitting legacy systems using RS-232 communication
- Applications needing low-memory, compact HMI with USB and SD support
Display
3.5 in 320 × 240 grayscale TFT
Operator input

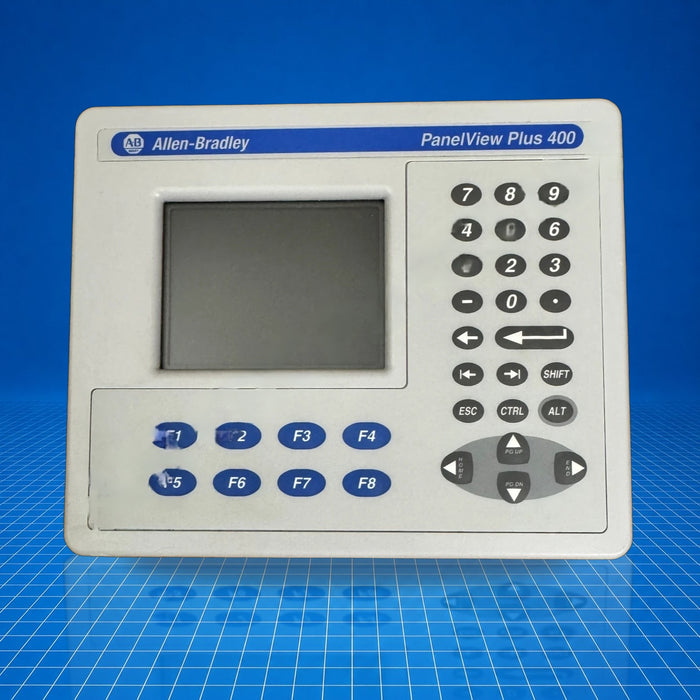

Keypad (eight function keys)
Memory (RAM/Non-volatile)
256 MB RAM, 512 MB non-volatile (~73 MB user)
Power
18-30 V DC; typical 9 W (0.375 A @ 24 V), max 15 W (0.6 A @ 24 V)
Protection (front)
NEMA 4X, 12, 13; IP54, IP65
Technical Specifications
I/O & Electrical
Input voltage
18…30 V DC (24 V DC nominal)
Power consumption
Typical 9 W (0.375 A @ 24 V DC), max 15 W (0.6 A @ 24 V DC)
Backlight life
White LED, 25 000 hr minimum at 25 °C
Communication & Power

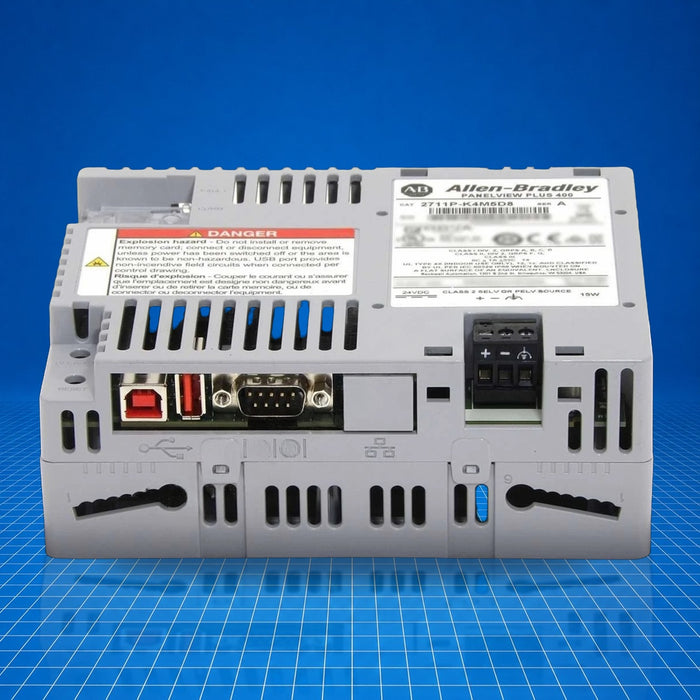

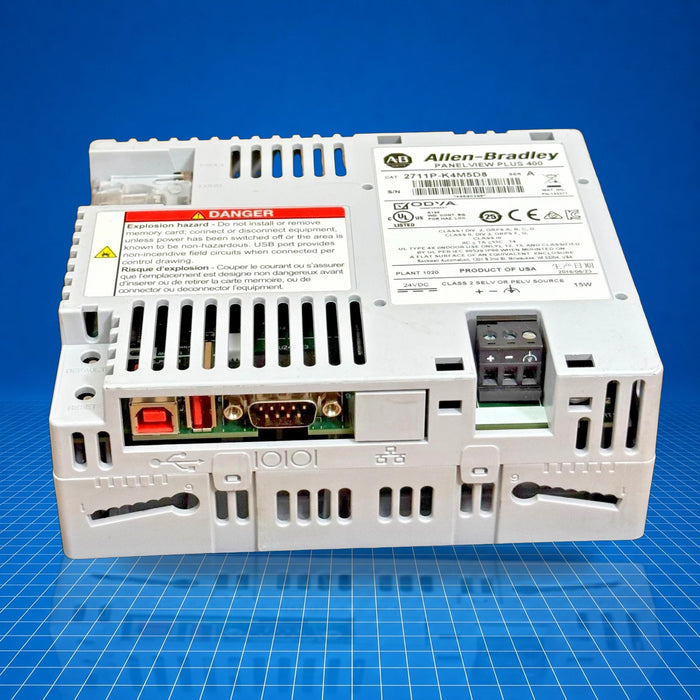

RS-232 ports
1
USB ports
1 USB host, 1 USB device
Ethernet
Optional via module; base model RS-232 only
Physical & Environmental
Display resolution
320 × 240, 16-levels gray
Display size (diagonal)
3.5 in
Display area
115 × 86 mm (4.5 × 3.4 in)
Dimensions (HxWxD)
152 × 185 × 60 mm (6.0 × 7.28 × 2.35 in)
Panel cutout (HxW)
123 × 156 mm (4.86 × 6.15 in)
Weight
~473 g (1.04 lb)
Operating temp
0 °C…50 °C
Non-operating temp
-25 °C
Relative humidity
5…95% non-condensing
Altitude, operating
Up to 2000 m
Shock
Operating: 15 G @ 11 ms; Non-operating: 30 G @ 11 ms
Vibration
10-57 Hz 0.012 mm p-p; 57-500 Hz 2 G pk
Enclosure rating
NEMA 4X, 12, 13; IP54, IP65 front
