2711P-RDB7C Allen-Bradley
Original price
$712.25
-
Original price
$2,587.50
Original price
$712.25
$712.25
-
$2,587.50
Current price
$712.25
Trusted By
Product Details
Specifications provided for reference. Verify critical details against official manufacturer documentation before installation.
Product Overview

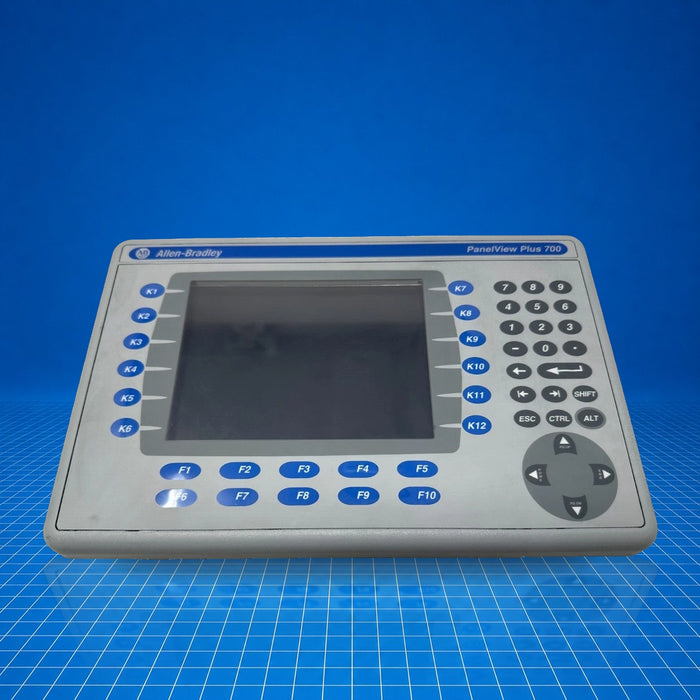

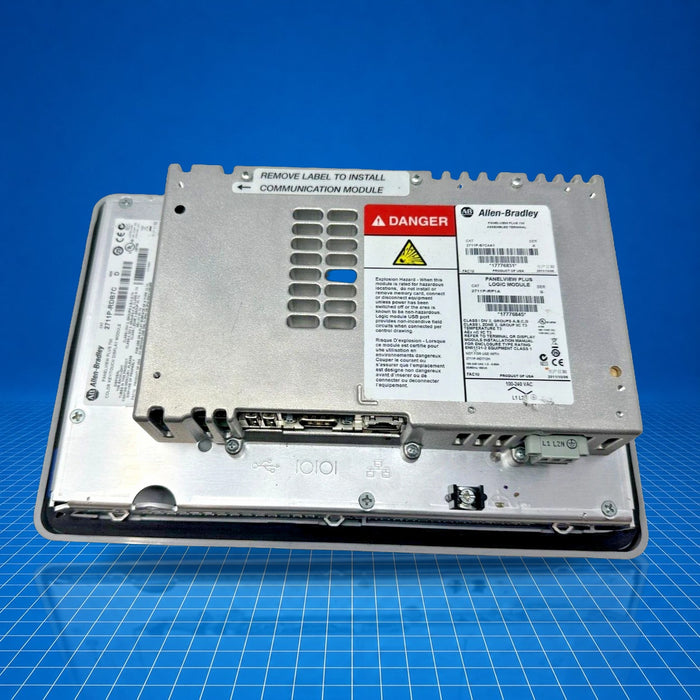

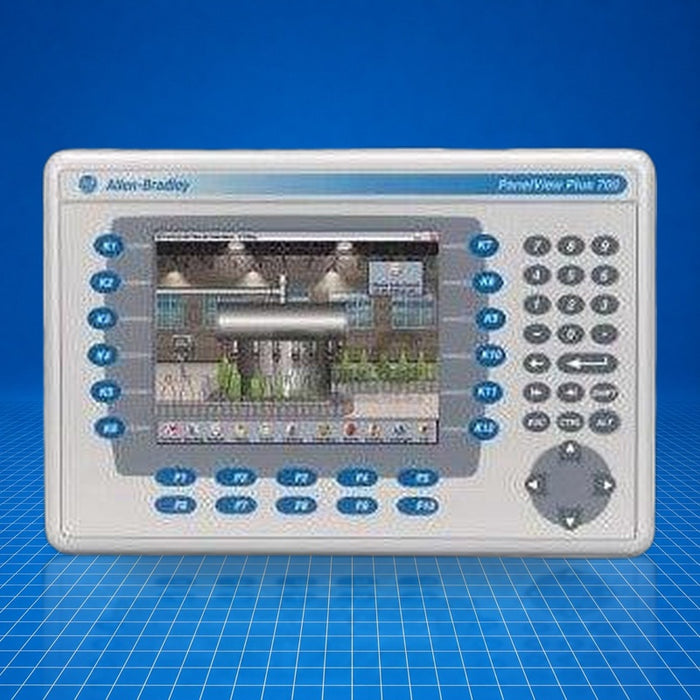

The 2711P-RDB7C is an Allen-Bradley PanelView Plus 6 (PVP6) / PanelView Plus 700 display module providing both keypad and touchscreen operator input. Featuring a 6.5-inch color TFT display (640 × 480 resolution), it serves as a replacement display in HMI systems that run on PanelView Plus 700-series platforms. It integrates into control systems to present process data and enable operator interaction via both capacitive keypad and analog resistive touch. Typical applications include machine-level operator stations and local status display in industrial automation environments.
Best Suited For
- PanelView Plus 700-series HMI replacements
- Environments requiring both keypad and touch input
- PanelView Plus installations needing standard 6.5-in color display
- Maintenance and field service replacements
Display resolution
640 × 480 pixels
Display size
6.5 in TFT color
Operator input
Keypad and touch (analog resistive)
Backlight life
CCFL, 50 000 h min at 25 °C
Power consumption
70 W max (2.9 A @ 24 V DC), 39 W typical (1.6 A @ 24 V DC)
Technical Specifications
I/O & Electrical
Input voltage
85…264 V AC
Power consumption - typical
39 W (1.6 A @ 24 V DC)
Power consumption - maximum
70 W (2.9 A @ 24 V DC)
Communication & Power
PCI slot available power
11 W DC, 5 W AC
External CompactFlash storage max
512 MB
Physical & Environmental
Operating temperature
0 °C
Non-operating temperature
-25 °C
Degree of protection
IP65 (also rated IP54, NEMA 12, 13, 4X indoor)
Weight
≈ 1.9 kg
Dimensions (W × H × D)
290 × 193 × 55 mm
Display area
132 × 99 mm
Battery (clock) life
4 yr min at 25 °C
Heat dissipation
240 BTU/hr
Shock/vibration
Operating: 15 G @ 11 ms; Vibration: 10-57 Hz, 0.012 mm pk-pk; 57-500 Hz, 2 G
Certifications
Discontinued
